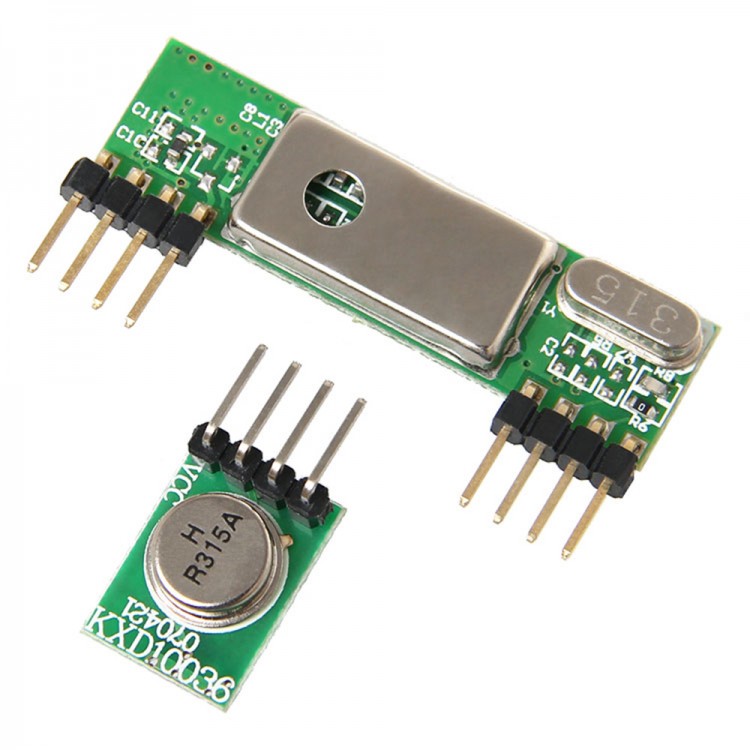

Superheterodyne 3400 Wireless Receiver Module 315RF Transmitter Module for DIY
Superheterodyne 3400 wireless receiving module scope of application:
- Wireless access system;
- Various types of anti-theft system;
- Industrial remote control, remote sensing, remote sensing;
- Low baud rate of data transmission;
- Other wireless remote control.
Superheterodyne 3400 wireless receiving module main parameters:
- Operating voltage: 5.0 VDC + / - 0.5 V
- Static electricity: 5 or less ma (5.0 VDC)
- Working principle: the superheterodyne (VCO, PLL)
- Work style: baton/ASK
- Working frequency: 315 MHZ 433.92MHz
- Working temperature: - 40 to + 80 deg
- Sensitivity: better than - 107 DBM (50 Ω)
- Speed rate: < 9.6 Kbps (315 MHZ, 315 DBM)
- Output signal: TTL level transmitting
- Antenna length: 28cm(315Mhz), 24m (433.92Mhz)
Package included:
- 1 x Receiver module
- 1 x Transmitter module
