SURECOM Digital VHF UHF Power SWR Meter Frequency Counter 125-520Mhz for Handheld Radio SW102

VSWR meter Introduction

- VSWR. Forward and reflected power direct digital readout, without any calibration.
- Maximum measurable power range up to 120W.
- Low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
- Build in Frequency counter .

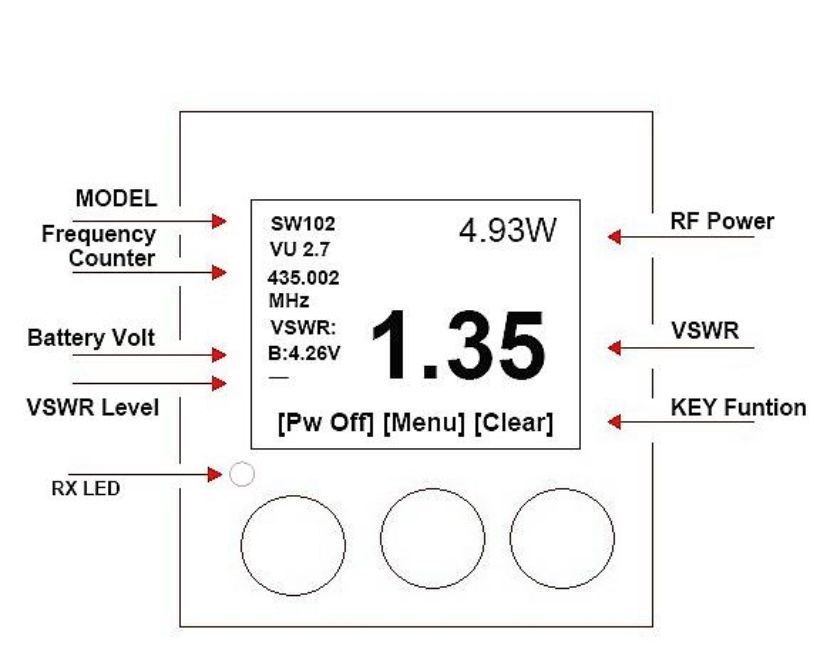

- All Funtion display ( Frequency,Power , SWR,FW,RW,Battery voltage)

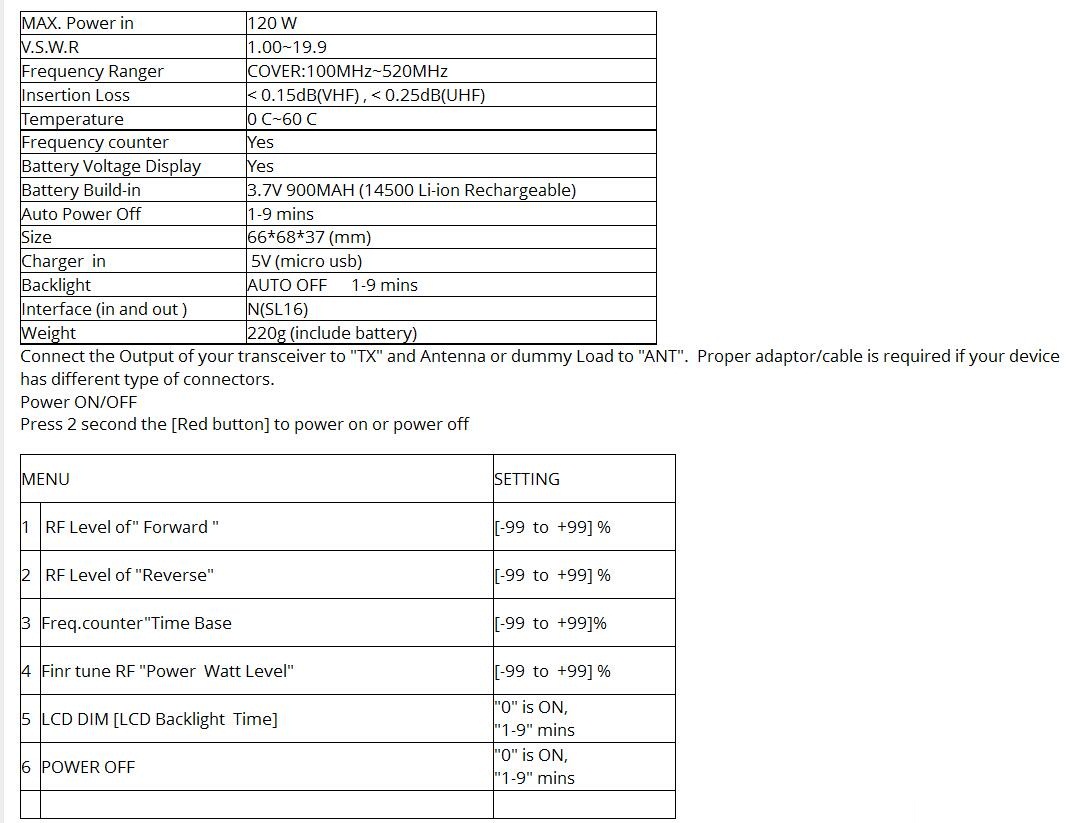

Feature & Specification
- Frequency range: 100 - 520MHz
- Measurable power range: 1 - 120W(+-0.5%)
- Input  Frequency counter (min 1W input)
- Maximum power: 120W
- Impedance: 50Ω
- Size: W 76 X H 77 X D35 mm.
- Weight: <220 grams
- Battery : 3.7V Li-ion Rechargeable Battery
- Interface: N-J Interface

Funtion menu display:

- Adj. RF Forward %
- Adj. RF reward %
- Adj. frequency counter time base.
- Adj. RF Power %
- Adj LCD dim of light
- Adj. power off time
- Adj. Powe test mode [0 for 1-10W hand held radio , 5 for Mobile Radio 10-100W]

Funtion Memory/ SAVE:
- Press MENU [Blue button]
- Press F1 [Red button] [Select 1-6 Funtion]
- Press Blue button [- ], Yellow button [+]
- Press the  Red button for 2 seconds
- Press the Blue button to SAVE and EXIT

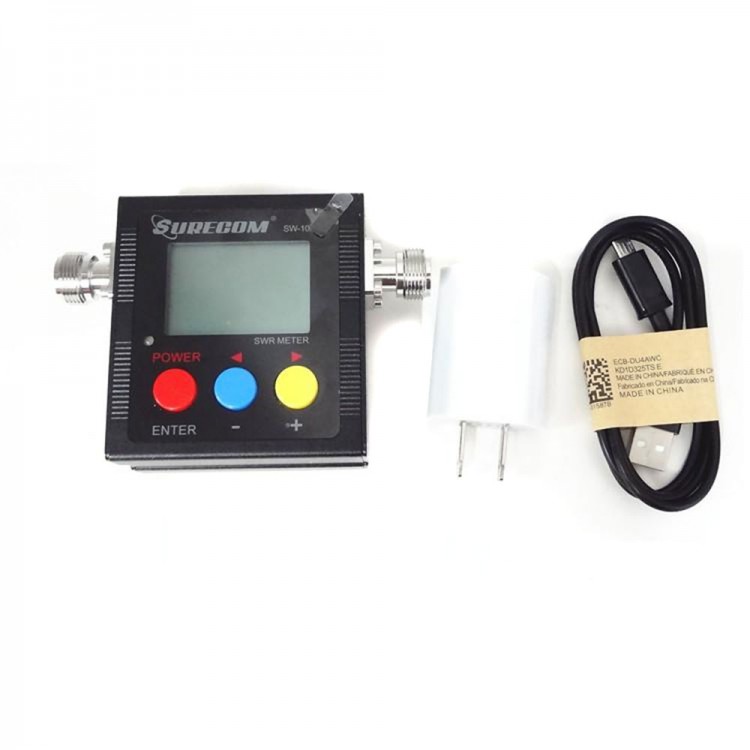

Package list:
- 1 x Meter
- 1 x Instructions
- 1 x USB charger cable
- 1 x Power supply
