SX1278LoRa Spread Spectrum Wireless Transmission Module 10KM 433MHz Ra01 for DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$5.14
  • Price in reward points: 51 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $5.04 $4.93 $4.78 $4.57 Contact US
Quantity:

SX1278LoRa Spread Spectrum Wireless Transmission Module 10KM 433MHz Ra01 for DIY

Specifications:

- The LoRa spread spectrum modulation technology
- Ultra far communication distance 15KM
- Constant RF power output  +18dBm-100mW when voltage changes
- High sensitivity:  -148dBm
- Half duplex SPI communication
- Programmable bit rate up to 300kbps
- Support GFSK, MSK, FSK, GMSK, LoRa and OOK modulation
- 127dB dynamic range of RSSI
- Automatic RF signal detection, CAD mode and ultra high speed AFC
- With CRC, up to 256 bytes of packet engine
- Small volume double stamp hole patch package
- With shield

Parameters:
- Certificate: FCC/CE
- Wireless standard: 433MHz
- Frequency range:420-450MHz
- Data interface: SPI/ GPIO
- Workign voltage: 1.8-3.7V ,typically 3.3V
- Working current: Receiving <=10.8mA;transmitting <=120mA (+18dBM);Slwwp mode: 0.2uA
- Working temperature: -40~85 degree C

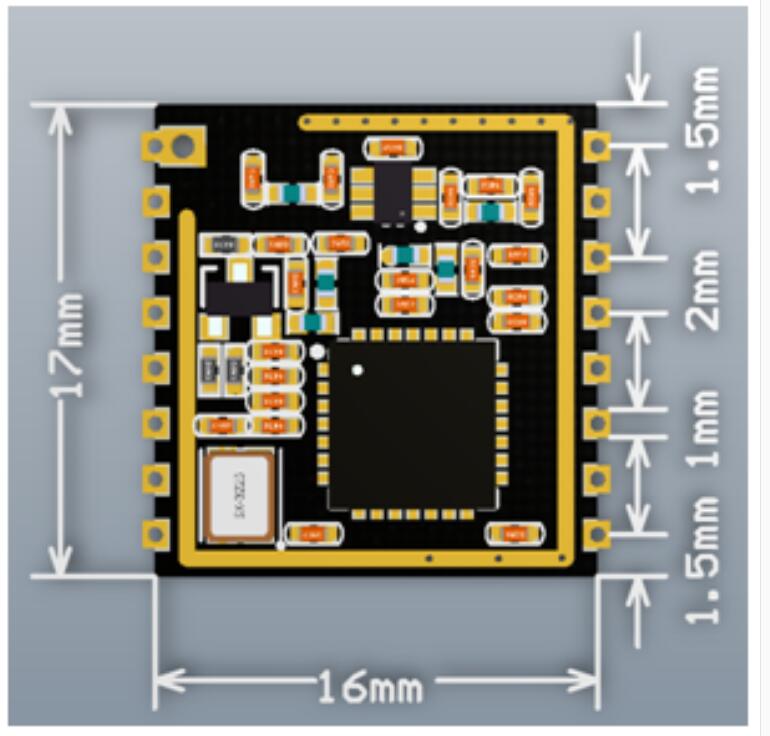

- SizE: 17*16*3 -+0.1mm
- Pin spacing: 2mm

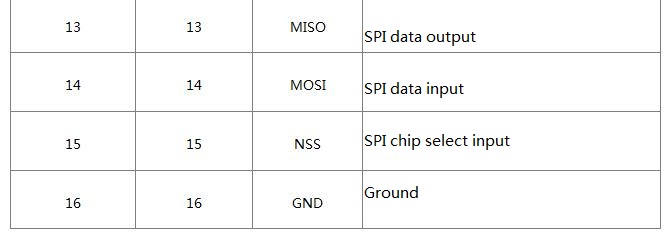

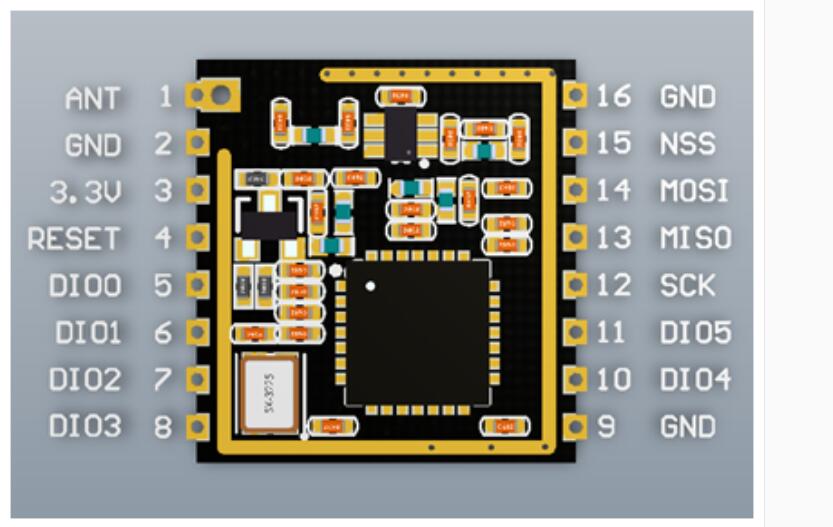

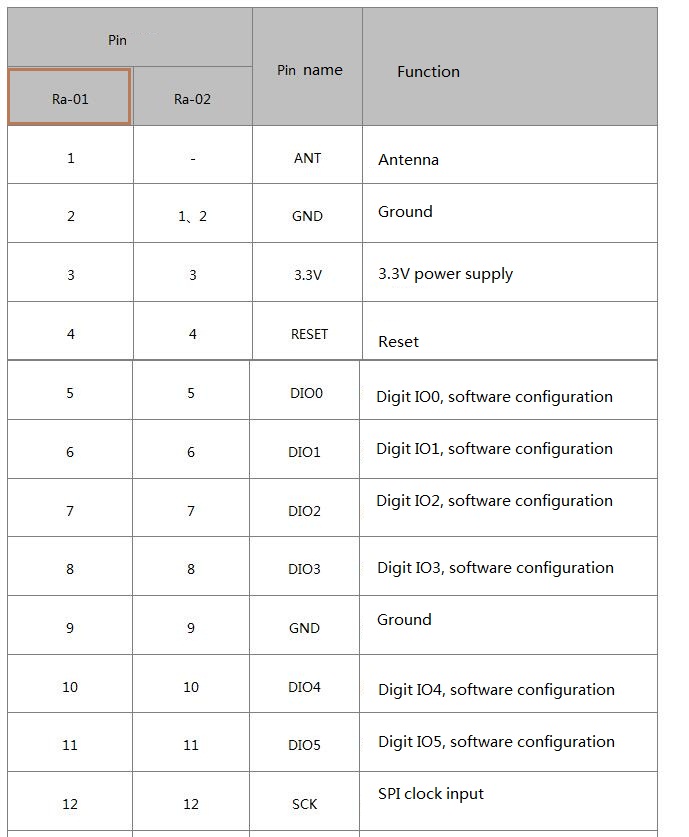

Pin definition:


Package Contents:

- 1 x Module
