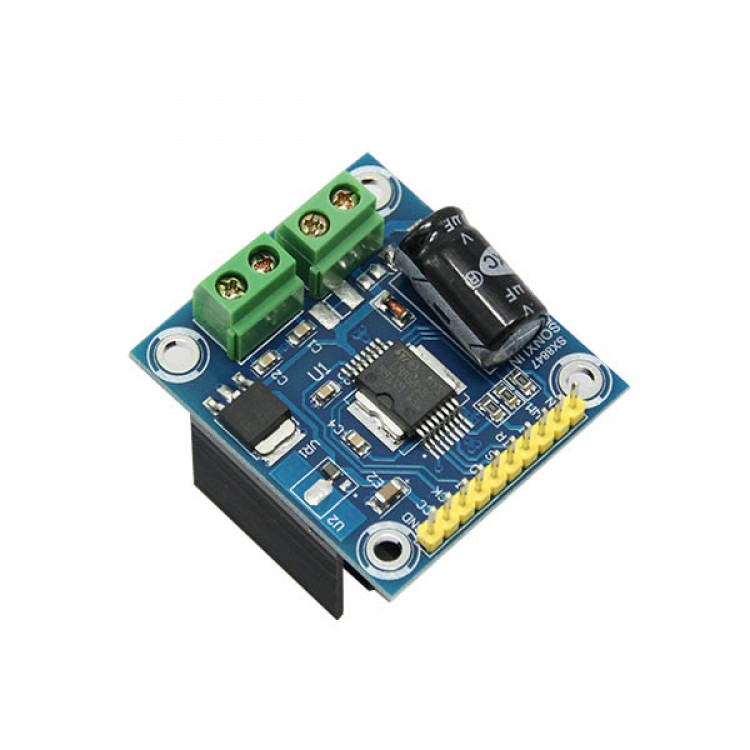

SX8847 SPI High-power H-bridge Motor Driver Module for Smart Car Driver 240W 20kHz

Availability: Out Of Stock

  • Price:$11.90
  • Price in reward points: 119 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $11.66 $11.42 $11.07 $10.59 Contact US
Quantity:

SX8847 SPI High-power H-bridge Motor Driver Module for Smart Car Driver 240W 20kHz

Description:
- SP configuration current limit
- Battery voltage (Vs) from 4.0V to 28V
- Logic operating voltage (Vcc) of 4.5V to 5.5V
- All pins can withstand 19 V, Vs and output pins can withstand 40 V
- Full turn-on resistance Ron from 100 milliohms (at Tj = -40 ° C) 300 mΩ (at Tj = 150 ° C)
- Logic inputs are TTL and CMOS compatible
- Operating frequency up to 20kHz
- Can be configured through the SPI interface or diagnostic
- overtemperature and short circuit protection function
- Vs undervoltage shutdown
- With Vcc undervoltage and overvoltage protection
- Vcc overvoltage detection
- When detected in the open load whether to open
- When in the OFF state comprehensive diagnosis
-  With the enable input pin
- Low standby current (<10μA)
