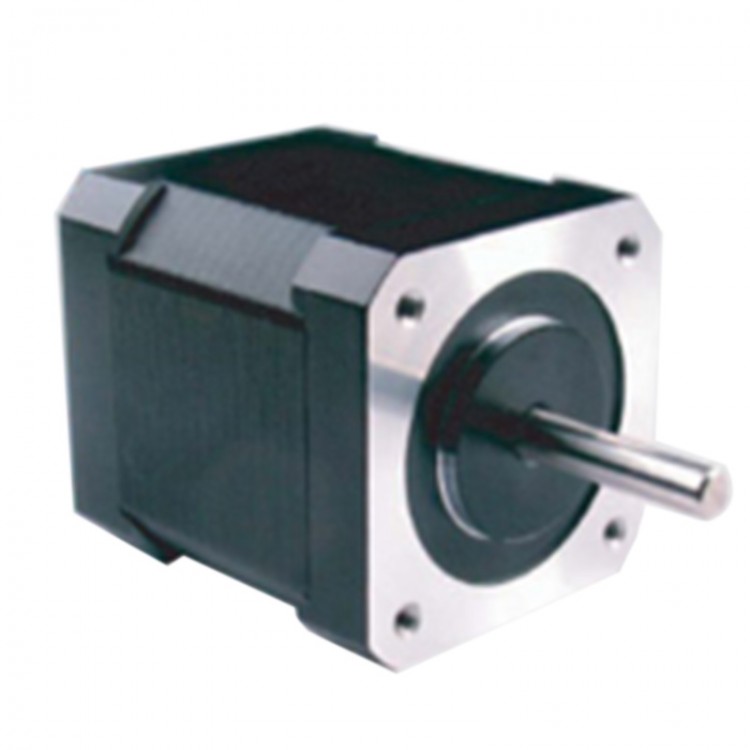

• SY42STH33-0406A Stepping Motor 1.8 Degree 9.6V 0.4A 1.6kg-cm Hybrid Motor for CNC

SY42STH33-0406A Stepping Motor 1.8 Degree 9.6V 0.4A 1.6kg-cm Hybrid Motor for CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$21.01
  • Price in reward points: 210 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.59 $20.17 $19.54 $18.70 Contact US
Quantity:

SY42STH33-0406A Stepping Motor 1.8 Degree 9.6V 0.4A 1.6kg-cm Hybrid Motor for CNC

Specification:
- Step angle: 1.8 degree
- Voltage: 9.6V
- Current: 0.4A
- Resistance: 24Ohm
- Inductance: 15mH
- Holding Torque: 1.6kg-cm
- Number of Leads: 6
- Rotor inertia: 35g/cmxcm
- Weight: 0.22kg
- Detent torque: 120g-cm
- Length: 34mm
- Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.(rated current, 2phase)
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Dielectric strength:500VAC for one minute
- Radial clearance: 0.02mm (Max.) Loading 450g
- Rotor clearance: 0.08mm (Max.) Loading 450g
- Radial maximum force: 28N
- Rotor maximum force: 10N
- Rotation: CW

Package included:
- 1 x Stepper Motor
