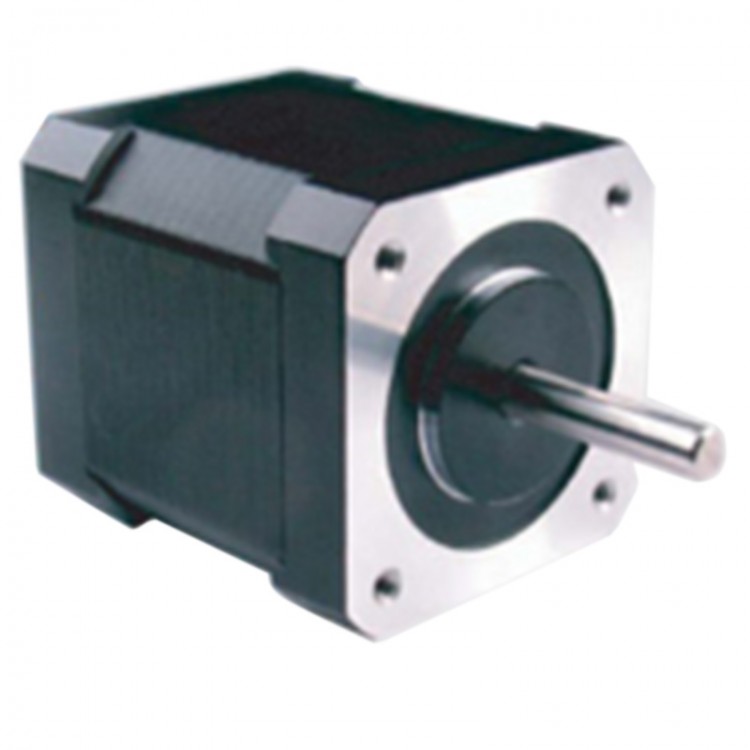

SY42STH47-0806A 6V 0.8A 3.17kg-cm 1.8 Degree Hybrid Stepper Motor for CNC
  • SY42STH47-0806A 6V 0.8A 3.17kg-cm 1.8 Degree Hybrid Stepper Motor for CNC

  • SKU:43240
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 2
  • Price:$20.93
  • Price in reward points: 209
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.51 $20.09 $19.46 $18.63 Contact US

SY42STH47-0806A 6V 0.8A 3.17kg-cm 1.8 Degree Hybrid Stepper Motor for CNC

Parameters:
- Voltage: 6V
- Current: 0.8A
- Resistance: 7.5Ohm
- Inductance: 6.3mH
- Holding torque: 3.17kg-cm
- Number of Poles: 6
- Rotor inertia g·cm²: 68
- Weight: 0.35kg
- Detent torque: 200g.cm
- Body Length: 48mm
- Insulation strength: 500V AC 1 Minute
- Temperature rise: 65K
- Environment temperature: -10~55 deg C
- Number of Leads: 8
- Weight: 3.8kg
- Step ange: 1.8 degree
- Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.(rated current, 2phase)
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Dielectric strength:500VAC for one minute
- Radial clearance: 0.02mm (Max.) Loading 450g
- Rotor clearance: 0.08mm (Max.) Loading 450g
- Radial maximum force: 28N
- Rotor maximum force: 10N
- Rotation: CW

Package included:
- 1 x Stepper Motor
