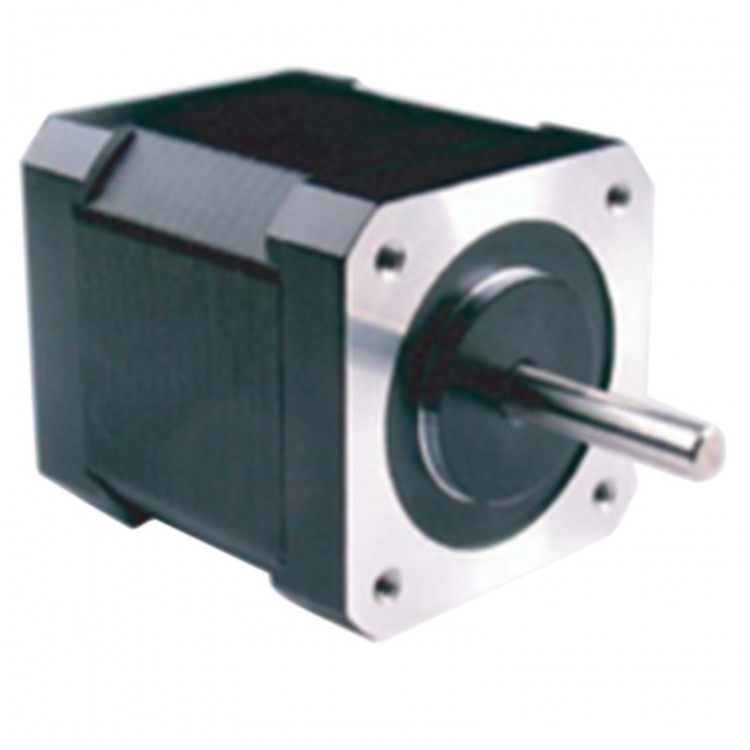

• SY42STH47-1684A 2.8V 1.68A 4.4kg-cm 1.8 Degree Hybrid Stepper Motor for CNC

SY42STH47-1684A 2.8V 1.68A 4.4kg-cm 1.8 Degree Hybrid Stepper Motor for CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$20.93
  • Price in reward points: 209 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.51 $20.09 $19.46 $18.63 Contact US
Quantity:

SY42STH47-1684A 2.8V 1.68A 4.4kg-cm 1.8 Degree Hybrid Stepper Motor for CNC

Parameters:
- Voltage: 2.8V
- Current: 1.68A
- Resistance: 1.65Ohm
- Inductance: 2.8mH
- Holding torque: 4.4kg-cm
- Number of Poles: 4
- Rotor inertia g·cm²: 68
- Weight: 0.35kg
- Detent torque: 200g.cm
- Body Length: 48mm
- Insulation strength: 500V AC 1 Minute
- Temperature rise: 65K
- Environment temperature: -10~55 deg C
- Number of Leads: 8
- Weight: 3.8kg
- Step ange: 1.8 degree
- Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.(rated current, 2phase)
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Dielectric strength:500VAC for one minute
- Radial clearance: 0.02mm (Max.) Loading 450g
- Rotor clearance: 0.08mm (Max.) Loading 450g
- Radial maximum force: 28N
- Rotor maximum force: 10N
- Rotation: CW

Package included:
- 1 x Stepper Motor
