T CLASS TA2022 HI-FI Audio Power Amplifier 90W+90W Digital Amplifier
  • T CLASS TA2022 HI-FI Audio Power Amplifier 90W+90W Digital Amplifier
  • T CLASS TA2022 HI-FI Audio Power Amplifier 90W+90W Digital Amplifier
  • T CLASS TA2022 HI-FI Audio Power Amplifier 90W+90W Digital Amplifier

  • SKU:15145
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 3
  • Price:$29.99
  • Price in reward points: 300
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $29.39 $28.79 $27.89 $26.69 Contact US

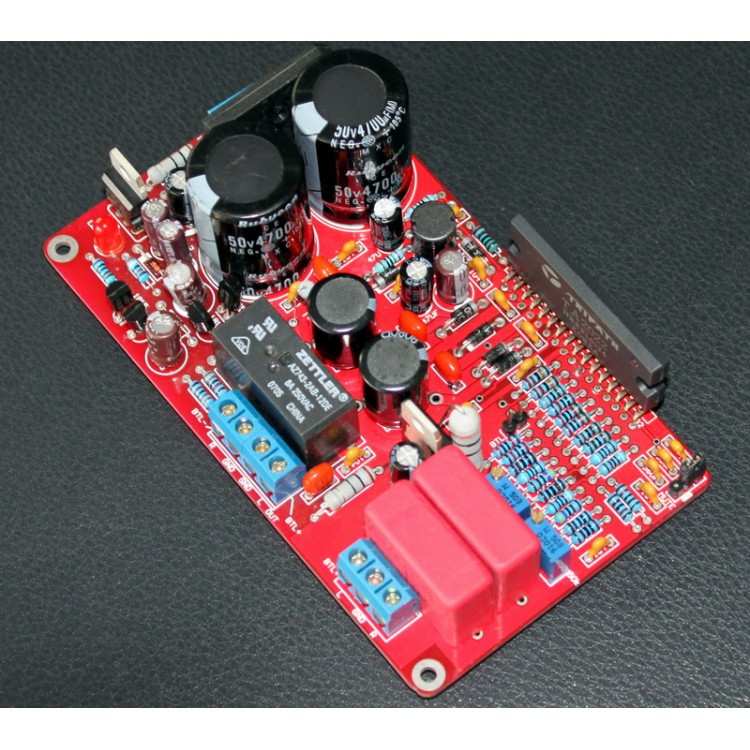

T CLASS TA2022 Power Amplifier finished Board

Technical parameters:
- OUTPUT POWER:50W-150W
- PCB SIZE: 128*70MM
- 100W @ 4R, 1.0% THD+N
- 90W @ 4R, 0.1% THD+N
- 60W @ 8R, 0.1% THD+N

Audiophile Sound Quality:

 - 0.015% THD+N @ 70W 4R
 - 0.015% THD+N @ 45W 8R
 - 0.10% IHF-IM @ 25W 4R

High Efficiency:
- 92% @ 88W 8R
- 87% @ 125W 4R

- Dynamic Range = 102 dB
- Integrated Mute Input function
- Integrated Gate Drive Supply
- Over-current protection
- can be installed as Single ended outputs or be BTL bridged mode
- Recommend working voltage:  AC dual 22V
- dual channel 100W  4R,can be bridged to 200W 8R mono channel output

Package contents:
- Class-T TA2022 AMPLIFIER BOARD finished board  x 1
