Tiger T-Motor Navigator Series High End MN 3110 700KV 3-6S Brushless Motor for Octocopter Hexacopter



























Specifications:
KV..............................................................................................................700
Configu-ration.................................................................................12N14P
Stator Diameter..................................................................................31mm
Stator Length......................................................................................10mm
Shaft Diameter.....................................................................................4mm

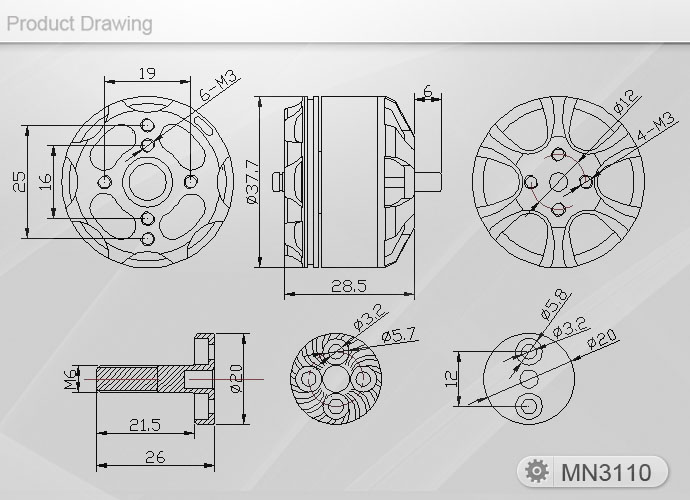

Motor Dimension(Dia.*Len)............................................Φ37.7×28.5mm
Weight(g)..................................................................................................80g
ldle current(10)@10v(A).......................................................................0.3A
No.of Cells(Lipo)...................................................................................3-6S
Max Continuous current(A)180S.........................................................21A
Max Continuous Power(W)180S......................................................466W
Max. efficiency current............................................................(3-10A)>80%
internal resistance.............................................................................92mΩ
