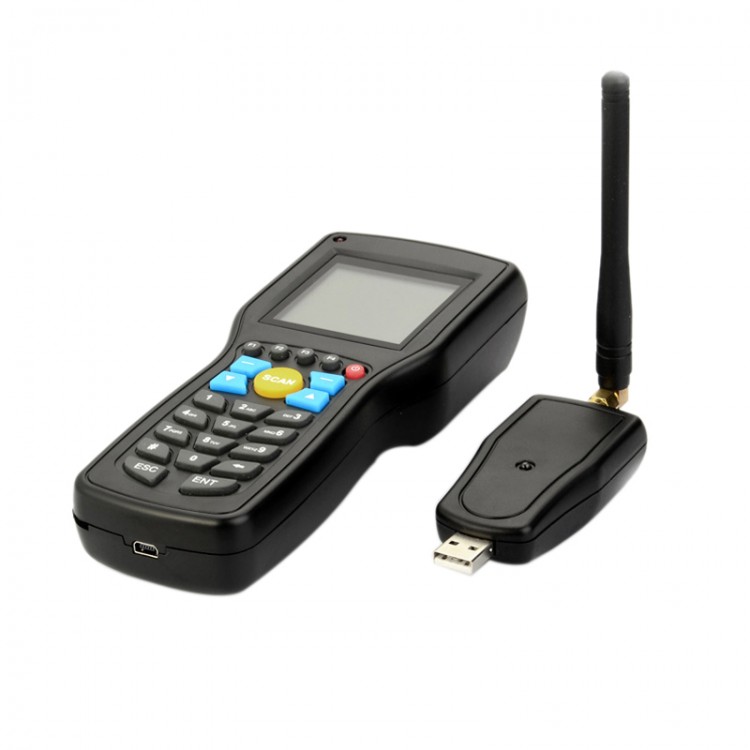

T5 Standard Wireless Barcode Scanner Distance up to 150M Data Collector Storage
This is the T5 Standard Vision,supports Data import,
The other one T5 lite vision can not support this function!
Features:
- 512M Memory, mass data storage
- Support import database, you can check or fix product information
- Uses advanced laser scanning-head, high tability and good sensitive
- Support the same bar code with a variety of colors/sizes
- Export data format is txt, excel
- Supports wireless uploading acquisition results
- Support inventory, wired barcode scanner function
- Support multi-warehouse inventory separately,
- Providing API interface program for secondary development
- Support for Win XP, Win7, Win8 system
- Industrial design wide temperature display and rugged housing replaceable rechargeable battery
Detailed
- T5 wireless barcode inventory machine using a one-dimensional scanning engine, with a two-inch industrial-grade monochrome LCD display, combined with wireless data transmission, easy to help customers solve storage problems. Mainly for small businesses, companies, stores, shop merchandise bar code and other information collection / inventory management / statistical processes queries. Software features include: in / out library management, inventory management, data management, terminal management, bar code detection, serial number acquisition, wired barcode scanning, browsing data. Can display product information (in English and Chinese characters) of the bar code, number, section name, size fields, bar code data collection. T5 supports offline save data, the data can be sent to the PC wirelessly or via PC-side software to import and export formats: TXT, EXCEL, CSV, etc. T5 support a variety of management software market data docking.
Performance Parameters
- Scan Engine: 650nm laser scan engine (one-dimensional)
- Processor: 32-bit ARM processor
- Operating System: uCOS II
- Memory: 512 MB FLASH
- Display: 2-inch color LCD screen
- Tip: standard buzzer, LED lights
- Keyboard: 24 keys keyboard
- System Interface: USB keyboard, USB virtual serial port
- Wireless Module: 433MHz radio channel
- Communication distance: 150 meters (indoor) 400 meters (outdoors)
Scanning Parameters
- Scan speed: 100 ± 10 times / sec.
- Scan Depth: 5mil: 35-100mm; 15mil: 30-300mm; 30mil: 40-500mm
- Resolution: 0.1mm (4mil)
- Decoding type: EAN-8, UPC-E, EAN13, UPC-A, Code39 code, cross 25 yards, UCC / EAN 128, Code128 code, CODE BAR, MSI PLESSEY, industrial 25 yards, 11 yards, Code93 code
Electrical Parameters
- Current: 270mA standby 28mA when scanning
- Power Source: USB Charging
- Battery: 1.2V, two AA 2600mAH NiMH batteries ,Not included in package!
- Standby Time: 100 ~ 150 hours
- Working Hours: 8 to 10 hours
Mechanical Parameters
- Size: 170mm (L) × 70mm (W) × 36mm (H)
- Housing Material: ABS
- Weight: 255g (with battery)
- Communication Interface: USB
Environmental Parameters:
Working Temperature: -10 ℃ ~ 40 ℃
Storage Temperature: -20 ℃ ~ 50 ℃
Humidity: 10% ~ 95%
Ambient Light: 0 ~ 70,000 lux
Accessories
Data cable
Wireless receiver
Application Scenarios
- Store, Shopmall, Warehouse management, Production line management, Library management, The apparel industry, FMCG, retail, Supply chain and other industries, The logistics industry (including warehousing, Ccourier, LTL transportation and other materials), Manufacturing, Fixed assets, Medical industry
