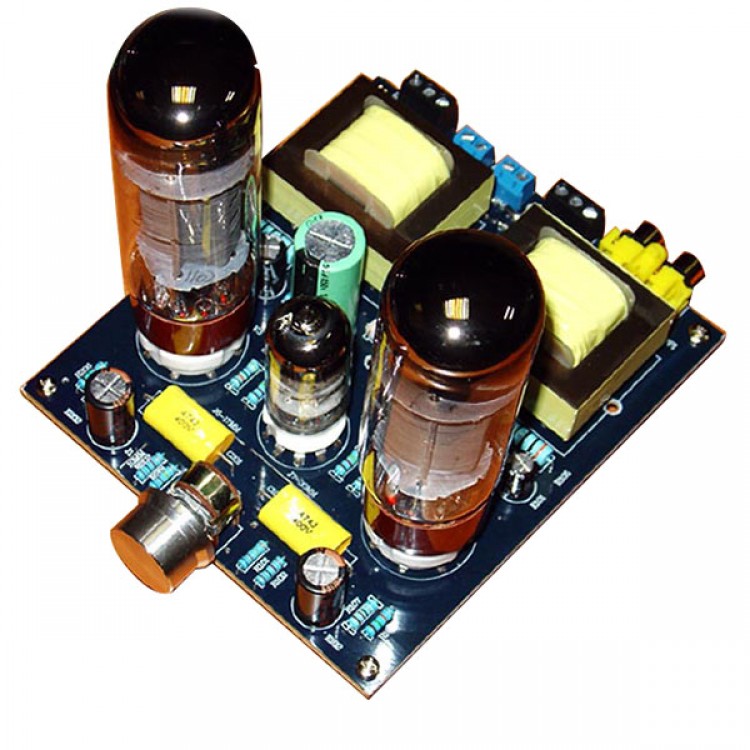

TA-1103 Series 6N1 or 6N2 EL34 Electronic Tube Single End Mini Amplifier Fever Assembled board

Availability: In stock, usually dispatched in 1 business day

  • Price:$116.94
  • Price in reward points: 1169 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $114.60 $112.26 $108.75 $104.08 Contact US
Quantity:

TA-1103 Series 6N1 or 6N2 EL34 Electronic Tube Single End Mini Amplifier Fever Assembled board

Specification and parameters

- With theEL34tube+6N2
- Power Output: 5W+5W @ 8 ohms
- Frequency Response: 30-40Khz (+-1db)
- Input Sensitivity: 800mV
- Residual Noise < 0.6mVac
- Board Input AC Voltage: AC290-310v
- Power Consumption: 45W
- Input Impedance: 10K ohms
- Output Impedance: 8/6/4 ohms (Japan Z11-EI48*17 Output Transformers)
- Dimensions: 126mm (w) x 142mm (d) x(95)mm (h)
- Weight: 0.9kg
- Input: RCA Jacks
- Output: Banana Jacks
