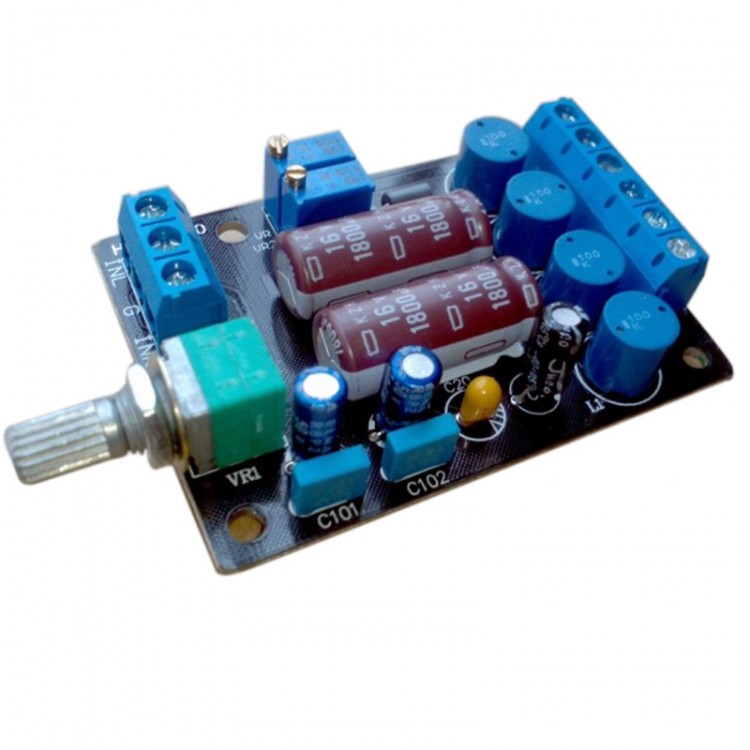

TA2024 DC12V 3A Digital Amplifier Board Bile Computer Desktop Amplifier Board with Smallest Volume

TA2024 DC12V 3A Digital Amplifier Board Bile Computer Desktop Amplifier Board with Smallest Volume

Description:
- The ta2021 amplifier board takes class amplifier chip TA2024 as the core combination with excellent performance of fittings like Elna, Black King Kong, Siemens, tantalum capacitors, TDK and so on that has high quality.
-Audio signal is coupling, blue shell ELNANo audio capacitor, copper foot, sound as samples, the timbre is sweet and refreshing, rich flavor of bile, is not only the art..
- Filter capacitor is with large capacity, the two original capacity is 1800UF/16V. The amplifier board uses large capacity capacitor.
- The plate in the original line to be optimized, with output close zero adjustment, the factory has adjusted well. tantalum capacitor filter power supply input magnetic filter.
- PCB adopts 1.6mm double-sided sheet,Two 2.0Oz copper PCB, more conducive to signal transmission, HASL whole process to ensure that the size of the current through the good performance , the overall layout and tidy, rational and beautiful. Sound sweet , very suitable for computer amplifier. This Supply is DC12V ,current is3A and above.

Features:
- Digital processing technology
- Integrates the switch circuit that sonic boom noise can be eliminated
- Intelligent short circuit protection,Intelligent overheating protection
- Can be connected to any passive4/8Ω speaker.
- Compatible with Sound systems and any standard audio cable.
- Only a single power supply12V, Easy to use
- Output Power(Each channel VS = 12V):
  15W for each channel( 4Ω, 10%THD + Noise)
  10W for each channel( 4Ω0.1% ,THD + Noise)
- Fidelity performance generally refers to:
  0.04%THD + Noise(9Wrms, 4Ω)
  0.18%Intermodulation distortion(1Wrms, 4Ω)
- Efficiency- > 88% Full power(RL = 8Ω)
- Each channel can be up to 15W without heatsink
- Size of the finished plate: 64MM * 45MM * 17MM (LxWxH)

Note :
1.Power is to12V, current is 3A and above
2.Speaker impedance is 4Ohm for better , some needs high sensitivity ones.
3.For some of the signal level that is relatively low excitation , to addPreamplifierTo play the effect
4.The positive and negative can not be reversed , it is best to use regulated power supply

Package included:
- 1 x TA2024 Digital Amplifier Board
