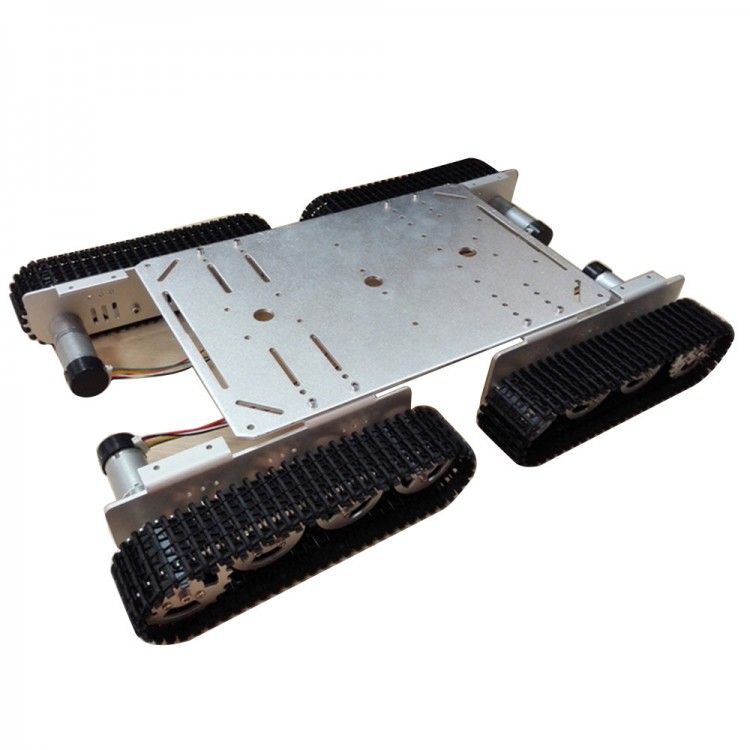

Tank Chassis Caterpillar Crawler Car Metal Track Vehicle Chassis for Robot Model DIY T500

Availability: In stock, usually dispatched in 1 business day

  • Price:$178.98
  • Price in reward points: 1790 Reward Points: 18
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $175.40 $171.82 $166.45 $159.29 Contact US
Quantity:

Tank Chassis Caterpillar Crawler Car Metal Track Vehicle Chassis for Robot Model DIY T500

Specification:

- Name: T500 silver tank chassis
- Material: aluminum alloy
- Oxidation: Yes
- Color: Silver
- Track: Metal (silver)
- Size: 500*320*70mm (L * W* H) (including caterpillar)
  470*200*70mm (L * W* H) (no track)
- Weight: 2.75kg
- Work load: 7KG

Motor parameters
- Name: 25mm DC brushless motor (with Holzer sensor and encoder)
- Output rate: 150 + 10%rpm
- Load current: 200mA (Max)
- Locked rotor current: 4500mA (max)
- Locked rotor torque: 9.5kgNaN
- Load speed: 100 + 10%rpm
- Load torque: 3000gNaN
- Load current: 1200mA (Max)
- Load noise: 56dB
- Working voltage: 9V
- Shaft extension dimension: 14.5mm
- Axial clearance: 0.05-0.50mm
- Screw size: M3.0
- Axial diameter: phi4mm, D3.5
- The encoder parameters: 2 pulses / ring

Package List:
- 1 x Chassis
- 4 x Side plate
- 4 x Driving wheel
- 12 x Bearing wheel
- 4 x Track
- 4 x DC motor (with Holzer sensor)
- Screws
