|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$901.50||$883.10||$855.51||$818.71||Contact US|

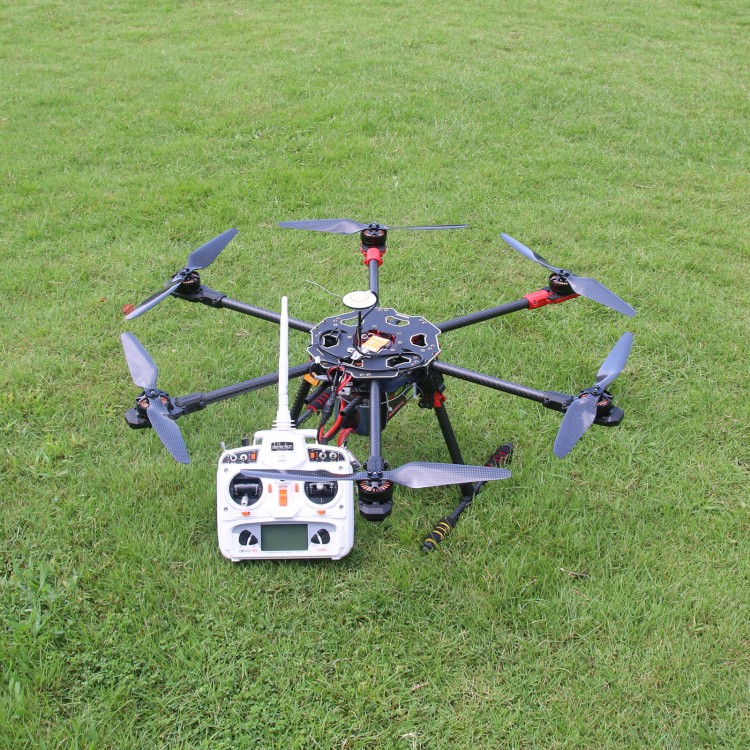

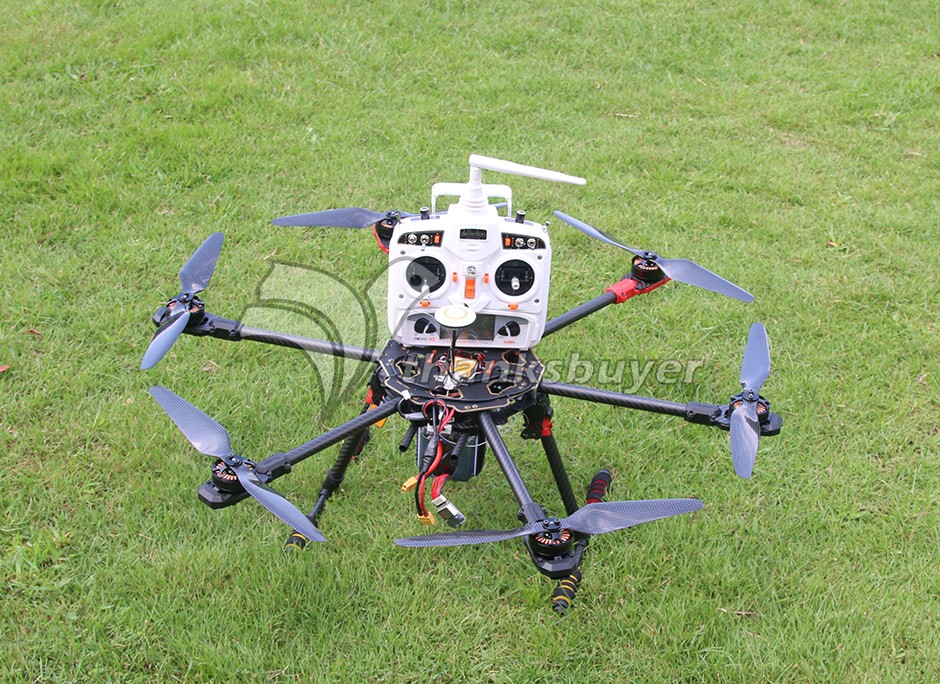

Tarot 680Pro ARTF Hexacopter TL68P00 & Naza V2 & X4108S 380KV & 40A ESC & Devo 10 for FPV Multi-Rotor Combo
Pls choose DHL as package is over 2kg(About 5.5kg) -- No Support Free Shipping
- Tarot FY680 Pro 3K Pure Carbon Fiber Full Folding Hexacopter is a replacement of Tarot FY680 folding hexacpter(thanksbuyer sku:16398),with innovation design and various patent.
- Tarot FY680 Pro 3K Pure Carbon Fiber Full Folding Hexacopter with many advantages including quick folding,low gravity,super stability and super large installation space & Unique shape and apperance
- Main board with Matte PCB circult,Integrated PCB connection :the power supply electric adjustment & ESC connection, etc
- Quick wire connection,Provide adequate installation space for all kinds of flight control system
- Adopts 3K Pure carbon fiber,CNC processing
- 16mm tube folding bracket widen 3 point support force,widen the place with carbon fiber plate,avoiding broken
- New type carbon fiber fastener adopts Import enhance fiber nylon material,with M2.5 screw ,Its diameter M3.2 interface can make PCB and lever solid connection
- The new folding landingskid with integral design safety locking device,preventing contraction caused by the impact
- A new motor base plate with places to install a new wire harness protection for clamping design is convenient to adjust the motor level
- TAROT 680 pro 6 axis vehicle frame in view of the user design require high portability, especially suitable for used for monitoring of remote sensing mapping aerial reconnaissance fire observation life exploring cable patrol farm monitoring for mobile high performance requirements, equipment load is not big and need a long blank navigation..
Devo 10 Specification:
- Encoder: 10-channel micro computer system
- Frequency: 2.4GHz DSSS
- Output Power: <=10mW
- Curremt Drain: 200mA (100mW)
- Transmitter Power supply: NiMH 12V 1600mAh
- Output pulse: 1000-2000ms
Devo 10 Features:
- The DEVO-10 adopts 2.4 GHZ Direct Sequence Spread Spectrum (DSSS) technology and features automatic ID binding and ID assignment. It can also be customizedly set as fixed ID code.
- USB online update makes you always enjoy the latest programme.
- Adjustability of hi-frequency output power enjoys more personality and friendly environment.
- Wireless data transmission between two DEVO-10 helps experience the training function.
- Up to 30-model data can be saved.
- DEVO-10 adjusting the gyro sensitivity makes hovering flight and fancy flight in an easy way.
- Shape design accords with human engineering and provides comfortable holding.
- Both the length and tension of the sticks can be adjustable.
- DEVO-10 can be freely switched among Mode 1. 2. 3. and 4.
- DEVO-10 is suitable for helicopter and airplane. In the helicopter mode. there are three flight modes, each of which can be freely set and its parameters can be personalizedly adjusted to meet the requirement for or 3D aerobatic flight.
- Whole weight is 3.3kg
- flying time:29.6 minutes
- 1/2 throttle, the aicraft can be suspended(hovered) in the air
- 1 X Tarot 680Pro Carbon Fiber Full Folding Hexacopter TL68P00 with Landing Skid Kit (SKU:27433)
- 3Pair X 13" 1355 Carbon Fiber Propeller (SKU:27033)
- 6 X Sunnysky X4108S 380KV Brushless Motor (SKU:23040)
- 6 X Hobbywing Platinum 30A ESC 2-6S (SKU:25094) ( or 6 X Hobbywing XRotor 40A OPTO Brushless ESC 2-6S (SKU:32304) )
- 1 X DJI Naza V2 + GPS Flight Controller (SKU:25263)
- 1 X Walkera Devo10 2.4Ghz 10CH RC Controller Transmitter + RX1002 Receiver (SKU:30552)
- 1 X 1-8S Power Monitor BB Ring Low Voltage Display (SKU:22604)
