Tarot MT2204 Self-locking Brushless Motor CCW Thread with Silver Cap TL400H6 for RC Multicopter

Tarot MT2204 Self-locking Brushless Motor CCW Thread with Silver Cap TL400H6 for RC Multicopter

Product description:
Tarot 2204-2300KV motor is for multicopter 280/300 and others. Tarot optimizes the brushless motor, which makes its gravity lower, more consistent with the design requirements of the multi rotor aircraft.

MT2204 brushless motor adopts 0.20mm ultra-thin and high efficiency silicon steel sheet with thin silicon steel piece can make the motors have the characteristics of low calorific value, high efficiency. The screw mounting base is integrated with the motor end cover, and the screw shaft can be directly mounted on the motor. The motor cover is with a high efficiency of active pad design, in order to get lower operating temperature means that higher working efficiency.

MT2204 brushless motor with the dynamic balance performance, and has been made a testing with high precision dynamic balancing tester to ensure the stability of the motor running. The bottom mounting hole is 16MM/19MM, and is compatible with the main frame of the market, which is compatible with the traditional motor.

Product parameters:
- Support lithium battery: 3S
- Paddle diameter: 5MM
- Propeller: 6 inch 3 blades propeller TL300E
- Interphase resistance: <=4m ohm
- Stator diameter: 22MM
- No-load current: 0.4A-0.8A
- Stator thickness: 4
- Stator number: 12
- N.o of Motor pole: 14
- Speed: 2300KV-+ 5%
- Motor outer diameter: 28MM
- Axis diameter: 2MM
- Motor length: 39MM
- Motor weight: 24.5G

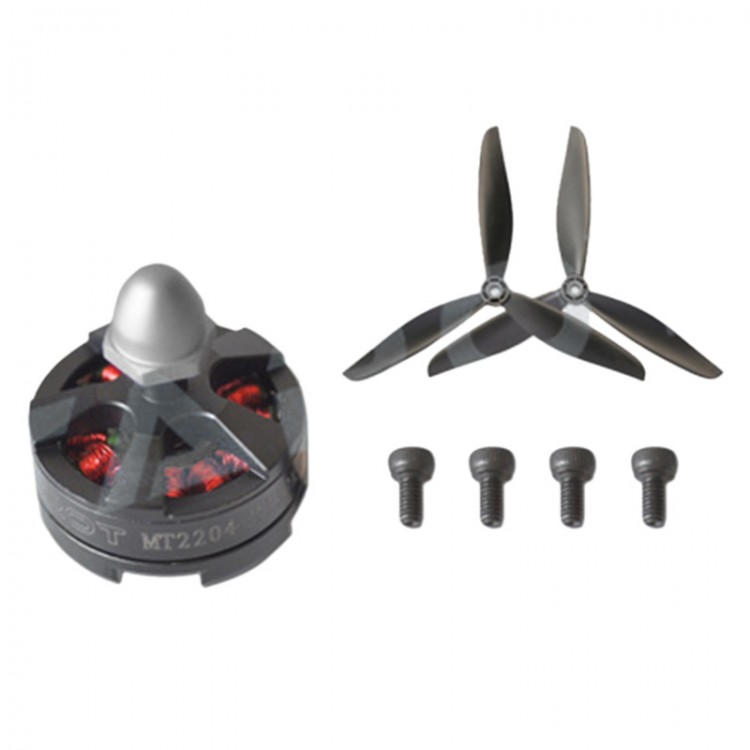

Package included:
- MT2204-2300KV self locking CCW thread motor x 1
- M2.5 x 5MM hex socket head cap screw x 4
- 6 inch 3 blades propeller / a pair / black TL400E6
