• Tarot MT2206III 1900KV Bruhsless Motor Plus Thread CW TL400H7 with Propeller for FPV Multicopter

Tarot MT2206III 1900KV Bruhsless Motor Plus Thread CW TL400H7 with Propeller for FPV Multicopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.97
  • Price in reward points: 100 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $9.77 $9.57 $9.27 $8.87 Contact US
Quantity:

Tarot MT2206III 1900KV Bruhsless Motor Plus Thread CW TL400H7 with Propeller for FPV Multicopter

Product description:

TAROT with CNC metal superb processing technology, produce 22 series of fan type brushless motor, the motor can solve the heat dissipation problem in the best way, effectively enhance the conversion efficiency of motor.
Tarot MT2206 II -1900K fan type brushless motor for 250/300 and other sections of the multi axis cross machine. MT2204 brushless motor center is extremely low, with high efficiency 0.20mm ultra-thin silicon steel sheet (shaft clamp structure of the primary impeller) concentricity can get the best guarantee. The active powder pad design with high efficiency fan type motor cover, to obtain a lower working temperature means higher working efficiency.
MT2204 brushless motor has excellent dynamic balance performance, each motor before shipment will make high precision dynamic balancing test, to ensure the stability of operation of the motor. The motor base mounting holes 16MM/19MM, compatible with the current market mainstream rack installation, retains the appearance and consistency of traditional motor, high hanging to protect the coil.

Product parameters:
- Support lithium section number: 3S
- Propeller shaft mount diameter: 5MM
- Propeller: 6-7 inch three-blade propeller
- Stator diameter: 22MM
- No load current: 0.4A-0.8A
- Stator thickness: 6
- Stator end number: 12
- Motor pole number: 14
- Speed: 1900KV +- 5%

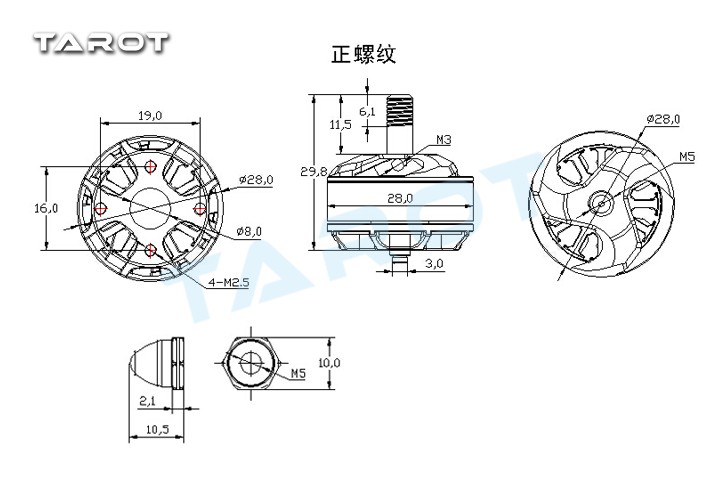

- Motor outer diameter: 28MM
- Axis diameter: 3MM
- Motor height: 36MM
- Motor weight: 28G

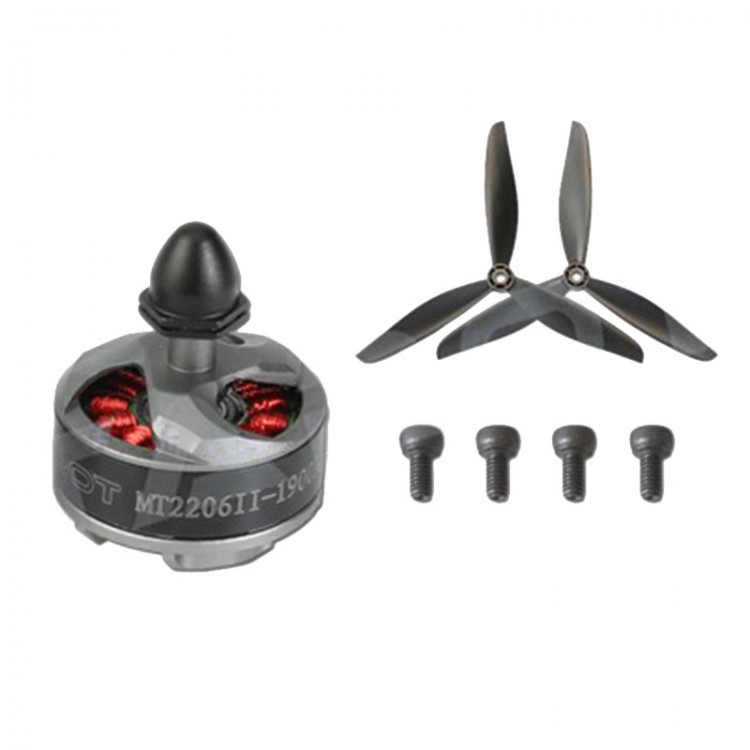

Packge includes:
- 1 x Motor
- 4 x M2.5 * 5MM  SHCS screw
- 2 x 7 inch propeller
