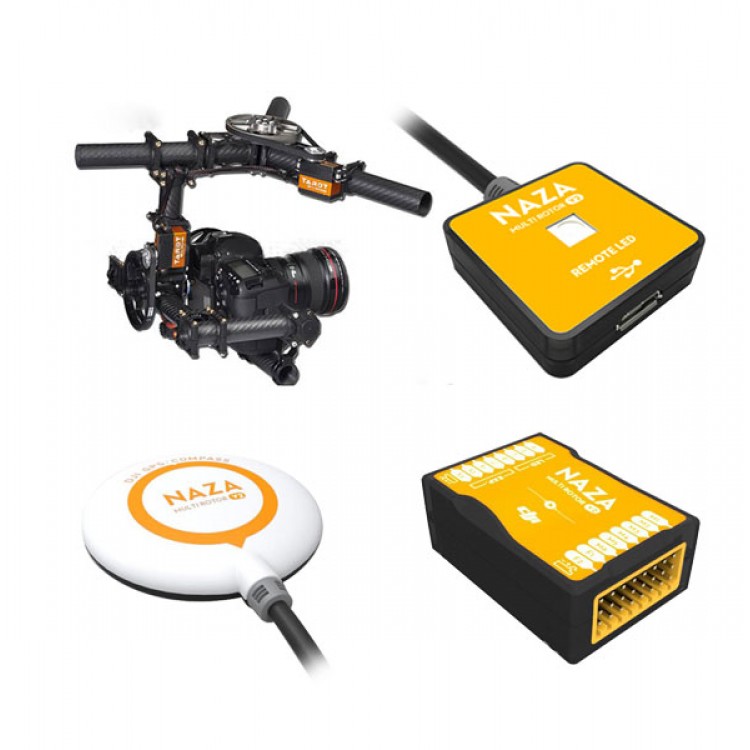

Tarot Multicopter 5D2 3-Axis Camera Mount Tarot TL100AAA + DJI Naza Flight Controller Promotion Combo
Note:this price is for pre-order,the first buyer pre-order will got this special offer,item will be ready at the end of the Nov of begainning of December
- Gimbal direction/roller pedestal are connected through carbon fiber parellel method.
- Φ5MM gimbal server is insertly connected to adjust the best tension.
- 130T roller timing pulley adopts self-locking design.
- Gimbal pitching/rolling pedestals adopt full CNC metal claps.
- Gimbal damper offers power resistancefor gimbal pitch shaft pedestal in order to consume energy caused during servo faster rotating.
- Φ5MM gimbal rolling damper adopts high strength metal frame roller locking design and use dual damper to offer resistence.
- 360 degrees oreless digital gimbal servo is equipped with 32T servo timing pulley.
- Eqipped with 360 degrees super high speed coilless servo, 1520μs broadband 12Bits 4096 high resolution, low inertia coreless motor design and high strength metal gears.
- The whole frame of metal servo`s pitch axis support arms use closed design.
- Metal Φ5MM tubulous gimbal installation. The base adopts bidirectional locking design.
- Rudder timing pulley cemented carbide meterial full CNC processing.
- M3 gimbal nut comes with unique self-locking design.
- Φ5MM gimbal tube clamp uses imported FR-PA injection molding material.
Related Parts Number:
- The ZYX-GS triaxial PTZ gyro ZYX13
- The RISC infrared shutter ZYX21 μs
- 25MM pure carbon fiber Landing skid TL100B05
- Tarot Dia 25MM Camera Mount Pipe clamps black TL100A01-1
- Tarot Dia 25MM Camera Mount Pipe clamps yellow TL100A01-2
- Tarot M3 head nut TL100A02-01
- Tarot M3 head nut/golden TL100A02-02
- Tarot Metal synchronous wheel TL100A03
- Tarot 150MXL, 180MXL PTZ timing belt TL100A04
- Tarot Dia 25MM Camera Mount Block TL100A05
- Tarot non-full-size pitch axis support arm TL100A06
- Tarot full frame shall pitch support arm TL100A07
- Tarot Dia 25MM PTZ pitch damping seat/deceleration Block group TL100A08
- Tarot Dia 25MM head roll/pitch connection Block group TL100A09
- Tarot 130T PTZ synchronization wheelTL100A10
- Dia 25MM PTZ direction/rollover connection Block group TL100A11
- The PTZ server seat of Tarot Dia 25MM group TL100A12
- Tarot Dia 25MM PTZ roll damping Block group TL100A13
- Tarot Metal 32T PTZ server synchronization wheel TL100A14
- Tarot 360 Degree Nuclear-Free digital PTZ servos TL100A15
- TAROT 3 axis PTZ rudder assembly TL100A16
- TAROT 3 axis head the shock absorbers assembly TL100A17
- Battery and propellers as gift will be send together with the gimbal
For NAza V2
- Manual Mode( user select Manual, Atti and Failsafe);
- Atti. Mode;
- GPS Atti.Mode;
- Intelligent Orientation Control(CF)：Course lock/Home lock
- Enhanced Fail-Safe：Landing / go home & landing;
- Quad-rotor I, X; Hex-rotor I, V; Y, IY; Octo-rotor X, I, V;
- Combination Stick Command to start; Immediately Mode and Intelligent Mode to stop;
- Remote gain tuning;
- Two-axis gimbal supported, Multi Gimbal Servo Output Frequency Supported;
- Support Normal receiver, D-Bus Port support S-bus and PPM receiver;
- Voltage Monitor and Low Voltage Protection;
- 4 channels transmitter support;
- Five-level Motor Idle Speed adjustable in Motor Mixer;
- IMU Calibration function and Auto course error compensation;
- Support PMU extend module, could connect with IOSD, H3-D2 gimbal and Bluetooth module;
- New attitude stabilize algorithm, provides better flight performance;
- New flight control feeling(takeoff is more stable and easy;flight will be more smooth);
- Auto course error compensation;
- Support octo-rotor; Add protection for Hexa-copter, octo-copter when lost one motor power;
- Add IMU advanced calibration, sensor error monitoring and protections function;
- Support PMU module with CAN BUS port, could support iOSD, GoPro gimbal and Bluetooth LED module, and so on;
- Increased demand for GPS signal strength, increased the compass interference monitoring and warning, maximumly reduced the effects of magnetic disturbance;
- Add new LED information;
- New UI design, simple and easy to use.
- New Quick Start Guide, matched with the new assistant software;
- For safety reason, do not use power battery during firmware upgrade.
- Make sure reconfigure all parameters after upgrading firmware.
- Naza-M V1 Compatible With Naza-M V2 PMU
