TAROT PEEPER T10X 250ma Burshless Gimbal FPV Spherical High Definition TL10A00

Availability: In stock, usually dispatched in 1 business day

  • Price:$764.99
  • Price in reward points: 7650 Reward Points: 76
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $749.69 $734.39 $711.44 $680.84 Contact US
Quantity:

TAROT PEEPER T10X 250ma Burshless Gimbal FPV Spherical High Definition TL10A00

Product Description:

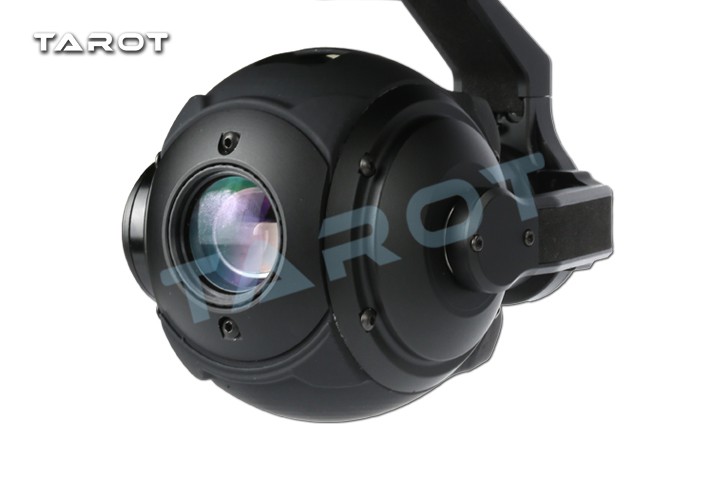

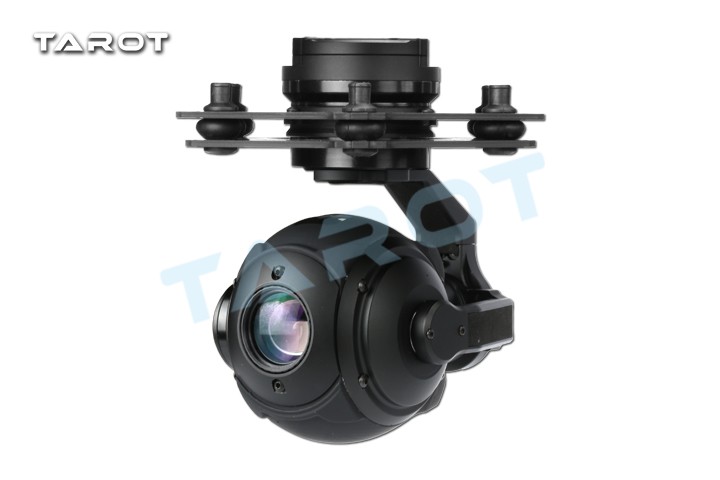

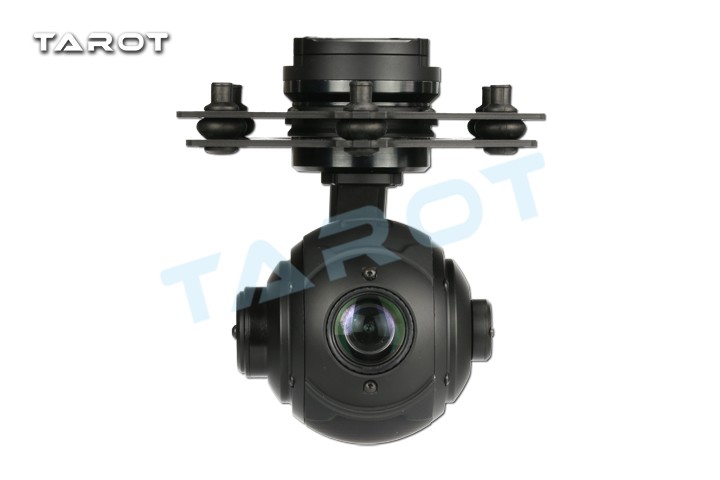

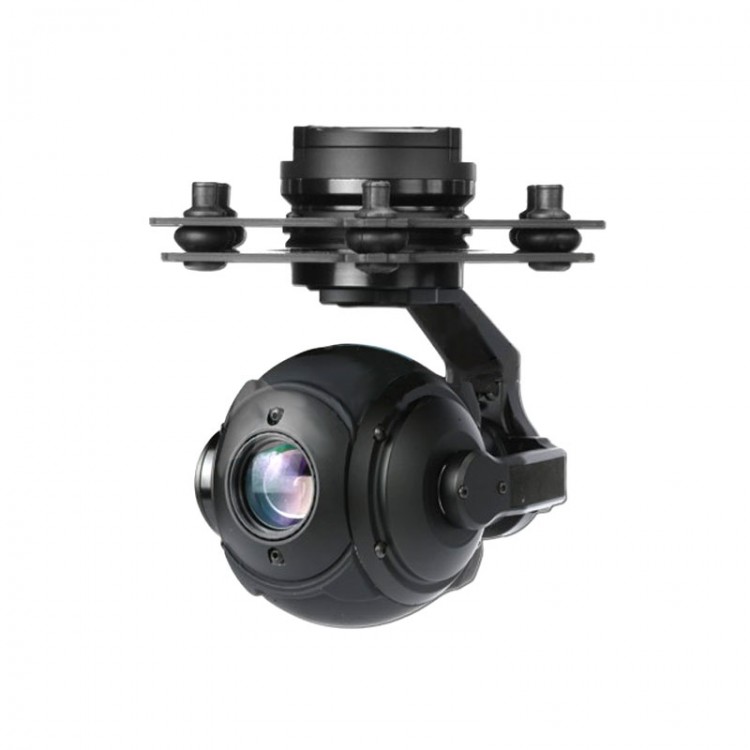

- TAROT PEEPER T10X,a great 3-axis gimbal for model aircraft enthusiasts,it provides a 10x optical zoom.The F2.0 uses 1/3 colour CMOS4 image sensor supports approx.4 million effective pixels(2688 x 1520).With unique internal wiring design,built-in IMU gimbal control module,specialized servo drive module,can be widely applied to various model aircaft activities and entertainments.
- 10 times optical zoom to break through the limitations of light and space, giving a new visual dimension, anytime, anywhere to capture a clear, precise large area search. Make work more efficient, easy and safe.
- The whole CNC with the overall structure of the ball with an integrated industrial design, lightweight and the strongest stability.
- High precision driving algorithm, independent IMU control PTZ posture, attitude control accuracy of 0.02 degrees, the integrated precision servo drive module.
- Point angle is 420 degrees, support 3-6S wide voltage input.
- Micro-SD card slot is overhead to avoid the rain influence function.
- HDMI1.4 HD output port.
- It is widely used in public security monitoring, power patrol, search and rescue, environmental law enforcement, remote sensing mapping, life exploration and other types of UAV mission
- Support SBUS decoding module upgrade port, using the Micro-USB link to the computer to upgrade parameters.
- The state intellectual property has been awarded the TAROT model.,ltd five patents. Any units orindividual without the license holder manufacture,copy,use and sale the product will be patent lawsuit.

Product Specifications:
- Name:TAROT PEEPER T10X
- Input power:3S-6S Li (11V-26V)
- Working Current:250ma
- Working environment Temperature:-20--+50
- Weight:365g

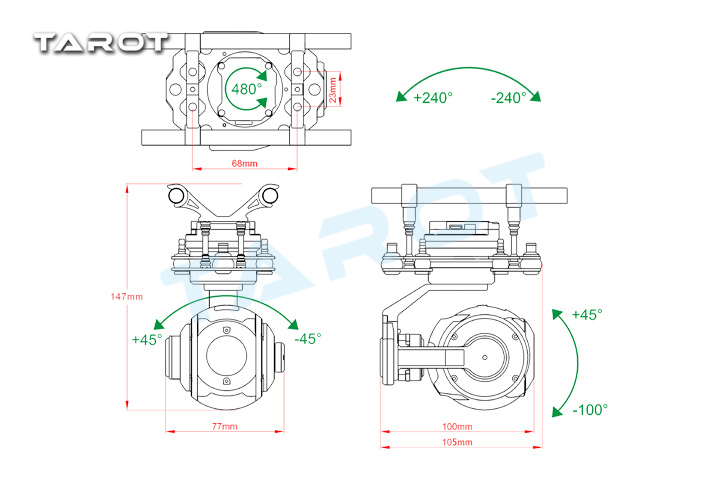

- The max outline dimension (length,width,height):77mm*105*147mm
- Controllable Revolve range:pitch:-100 degree--+45 degree;point:-240 degree--+240 degree
- Attitude control accuracy:+-0.02 degree

Camera Specifications:
- Sensor:the effective pixels:4 million
- 1/3 colour CMOS 4 (2688 x 1520 pixels) image sensor
- Camera lens:10 times optical zoom lens;Aperture value:F2.0;F=4.9mm--49mm;zoom moving speed:Optical wide-angle,Optical large focus:3.2 seconds;Focusing moving time:(oo-near):1.5 seconds
- Diagonal FOV:66.6 degree--7.2 degree (A1)
- The minimum focusing distance:10mm--300mm
- Video storage format:MOV
- Working mode:Record Mode
- Exposure mode:Program auto exposure(Default shutter priority exposure)
- Exposure compensation:+-2.0 (Take 1/3 as step length)
- Metering mode:over-all integral metering
- Electronic shutter speed:auto
- White balance:auto/Daylight/cloudy day/fluorescent lamp/tungsten lamp
- Video Subtitle:support
- One key zoom to single image:support
- Anti flicker:support
- PAL/NTSC Standard:support
- Support Memory card type:The max 32GB
- Support file system:FAT32(<=32GB)
- Parameter adjustment software support platform:Windows XP/VISTA/7/8/

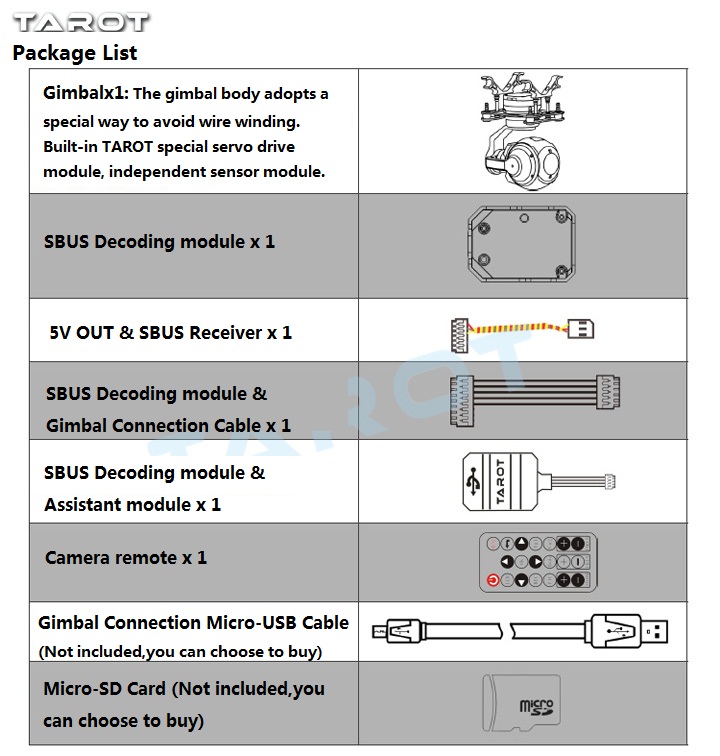

Package List:
- 1 x  Gimbal
- 1 x  SBUS Decoding module x 1
- 1 x  5V OUT & SBUS Receiver x 1
- 1 x  SBUS Decoding module & Gimbal Connection Cable x 1
- 1 x   SBUS Decoding module & Assistant module x 1
- 1 x   Camera remote x 1
- Gimbal Connection Micro-USB Cable (Not included,you can choose to buy)
- Micro-SD Card (Not included,you can choose to buy)
