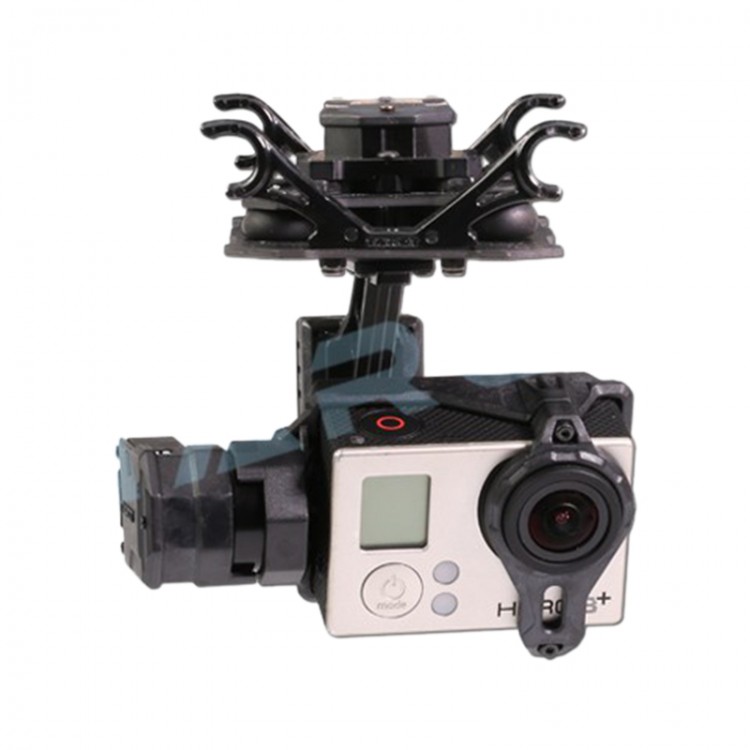

Tarot T4-3D Dual Shock-Absorber 3-Axis Gimbal PTZ for Camera Gopro Hero4 3+ 3 TL3D02 Multicopter

Description:

Integrated TAROT series high-end technology. The combination of aluminum and engineering plastics structure stability of lightweight and strongest, even in extremely harsh environment, can also accurately locked the camera to maintain high stability and output the exquisite picture .choice.

Tarot GoPro T4-3D double shock three-axis brushless PTZ is suitable for motion camera  GOPRO4/GOpro3+/Gopro3 or other size cameras that the size is close to High precision, light weight for multicopter, aircraft and helicopter.

T4-3D dual suspension three axis stable platform by using advanced control algorithm,  built-in independent IMU precise control platform attitude, integrated platform and servo drive module. Support point to follow (PF) and first person (FPV) two modes of operation.

2S-6S lithium polymer battery (7.4-22.2V) input, pitch direction (TILT): + 200 degrees /s, pitch direction (TILT):-120 degrees to +15 degrees. The pitch axis rotation speed is controlled, the amount of the stick corresponds to the rotation speed of the pitch axis, the higher the speed of the rotation speed is.

Built-in wiring without binding design, all the power and signal line cleverly embedded in the cloud platform structure, no need complex debugging, a key to start the electricity is flying. Support computer operating parameter settings and provide free upgrade service for long term system.

Features:
- Support computer operation interface settings
- Direction following  mode (PF)
- First person mode (FPV)
- Built in independent IMU module
- TAROT special PTZ servo drive module
- AV output interface
- Wide range voltage input support
- Support for conventional receiver /S-Bus receiver /DSM receiver
- Peripheral equipment:
- Support camera type: HERO3/HERO4 GOPRO and camera of the same size
- Input power: LiPo 2S~6S battery
- Angle control accuracy: + 0.02
- Maximum controllable speed:
- Pitch direction (TILT): + 200 degree /s
- Controllable rotation range
- Pitch direction (TILT):-120 degrees to +15 degrees
- Working current: 30mA (@25V) 50mA (@12V)
- Locked rotor current: 350mA (@25V) 700mA (@12V)
- Working environment temperature: -20 degrees ~50 C degrees C
- Weight: 201g
- Size: 100mm * 88.5mm * 105.6mm
- Software installation requirements: XP Windows; VISTA Windows; Windows 7; 8 (32 or 64 bit); Windows;

Package included:
- 1 x Gimbal
- 1 x PTZ main control module
- 1 x Connection line for main control and gimbal
- 1 x 5V output, receiver and video line
- 1 x USB module * 1
- 1 x Flight control cable * 1
