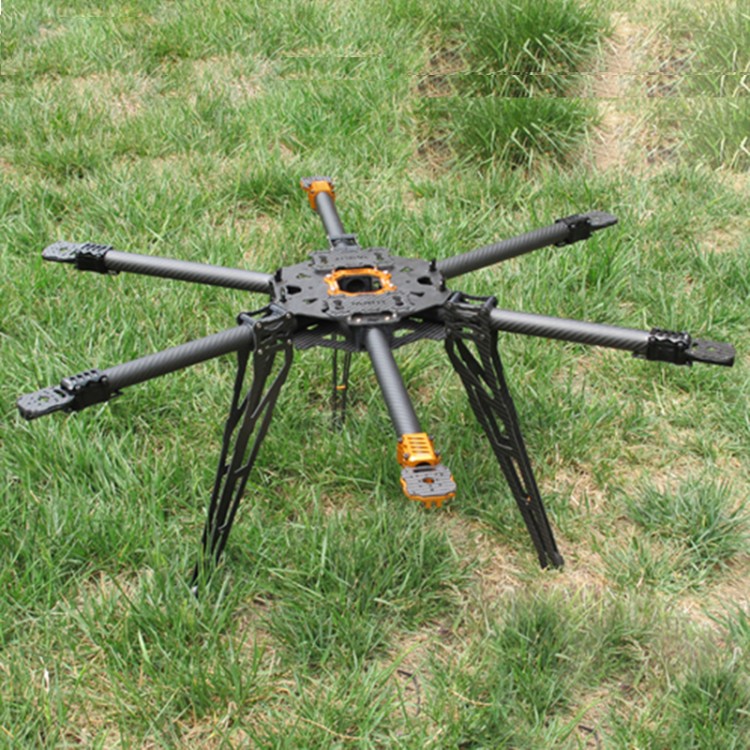

Tarot T810 Hexacopter Folding Rack 6-axis Copter Frame TL810A Hexacopter w/ Landing Gear

Tarot T810 Hexacopter Folding Rack 6-axis Copter Frame TL810A Hexacopter w/ Landing Gear

Features:
- The shortcut fold can be directly equipped with safe and reliable line, avoid the use of plug connection circuit.
- The cover is used M3 head nut self-locking in the carbon fiber board, the thread structure using a unique design of the self-locking screw technology,
- Has excellent resistance to lateral vibration.
- The fast folding part of independent innovation Dia 40 metal dovetail groove Falcon riveting structural design, with strong clamping force.
- Full carbon tube folding, the excellent damping non-slip feel.
- Lightweight two-color motor seat multi-axis CNC machining, the overall design has a strong perspective effect for the body of the air Striking visual direction. Standard current within the lock-in-one anti-skid gold-plated hub.
- Flight load of 3 kg design compressive load 15 kg.

Specifications :
- Frame weight : 1020g
- Arms diameter : 25mm
- Drone dia : 810mm
- End to end : 850mm
- Center body dimension : 210 x 210 x 2.0mm
- Mount mounting hole : 16mm / 19mm / 25mm / 27mm triangular shaped mounting
- Drone's weight (everything it needs to fly) : around 4.3kg
- Drone's all-up-weight (when it lift the ground with payload) : around 4.5~6kg
- Payload (it can carry) : 1.5~2kg

Flight Reference :
- Battery Supply : 6S 22.2V, 5000mah for 7-8 minutes, 10000mah for 13~15 minutes
- Motor : Tarot 4114 320kv Motor
- ESC : Hobbywing Platinum 30A-OPTO or 40A-OPTO
- Propeller : Tarot 1555 Propellers
- Flight Controller : NAZA V2 / DJI WooKong / DJI A2
- Radio Set : Futaba 8FG (we used 8-ch receiver)
- Carrying : Brushless Motor Gimbal, TS352 FPV System, GoPro Hero 3 (They weight about 700g)
- Remarks : Remember to use BEC module to power up the Flight Controller (11.1V) and Receiver (5V) since you are using 22.2V battery pack, and get some extra electric cables, JST plugs, T-Join or XT60 plugs to connect the drone.


This package includes :
- 1 X T810 Frame
- 1 X Landing Skids
