|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$235.10||$230.30||$223.11||$213.51||Contact US|

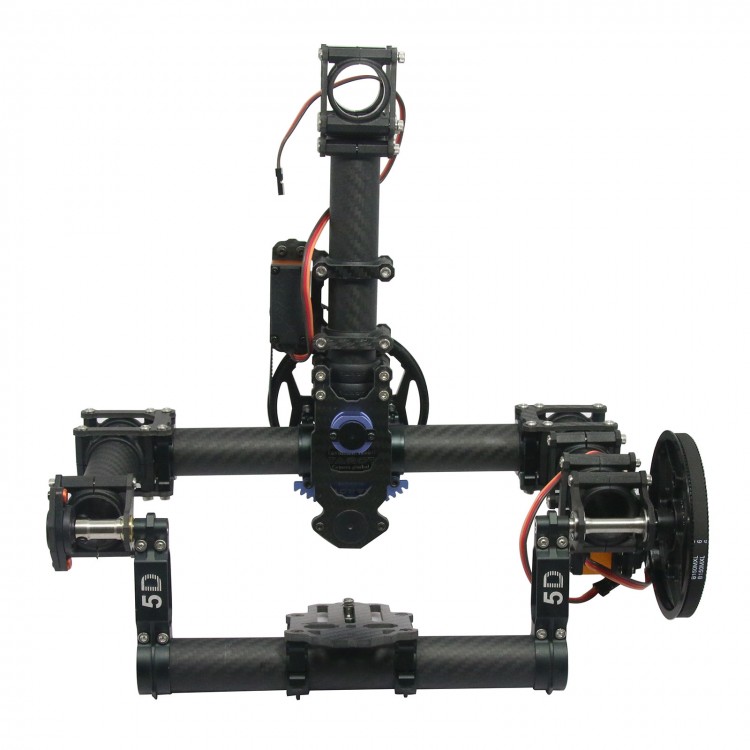

Tarot TL100ACC Full-Size 2 axis Invincible Rabbit Camera Gimbal Mount for Multi-rotor Photography
- Tarot TL100ACC, a Non Full size 2 axis Camera Mount, suitable for the SLR Camera such as: CANON 5DMark II/5D Mark III, SONY a900, NIKON D800E/D700/D800 etc.) It adopts Toray 3K carbon fiber cloth woven of pure carbon fiber plate with 25MM3K pure hollow carbon fiber carbon fiber tube (non-3K glassy carbon tube). The rudder can follow tripod to do a 360-degree Rotation, to provide more convenient shooting completed creative work for cameraman. All the parts of Tarot multi-axis Camera Mount are made of matte process, to avoid the shadow effect from the sun reflex and keep the camera quality.We also have another Tarot 2 axis Camera Mount TL100ADD for your comparison.
Tarot TL100ACC Features:
- Camera Mount Direction / and roll shaft Seat carbon fiber are connected in parallel processing.
- Dia 25MM PTZ server group using the plug is connected to adjust the belt tension.
- Roll axis synchronization wheel 130T comes with locking design.
- The Camera Mount tilt / roll the shaft seat group its roll axis full CNC metal clip stands.
- The Camera Mount pitch axis seat group using PTZ damper the resistance movement, the rapid movement of energy depletion server.
- Tilt the deceleration seat group adopt the large specifications francs bearing two-way tight stepped shaft design.
- The roll damping seat Dia 25MM PTZ group of high-strength metal frame-locking roller shaft design, the use of dual-damper is designed to provide the resistance movement.
- 360 degree Nuclear-Free digital PTZ steering gear 32T Servo synchronization round.
- 360-degree ultra-high-speed unlimited laps steering gear, 1520μs broadband 12Bits 4096 ultra-high-resolution, low-inertia core motor design, high-strength degree full metal alloy gear.
- The overall framework of the metal pan tilt axis support arm closed strengthen the design.
- Metal Dia 25MM tubular Camera Mount installation . The base is made of two-way lock design.
- Rudder synchronous wheel cemented carbide material full CNC multi-axis machining.
- M3 Camera Mount nut with the unique design of the self-locking thread technology.
- Dia25MM head tube clamp material injection molding using imported FR-PA.
Tarot TL100ACC Related part number:
- The ZYX-GS triaxial PTZ gyro ZYX13
- The RISC infrared shutter ZYX21
- Dia 25MM pure carbon fiber Landing skid TL100B05
- Tarot Dia 25MM Camera Mount Pipe clamps black TL100A01-1
- Tarot Dia 25MM Camera Mount Pipe clamps yellow TL100A01-2
- Tarot M3 head nut TL100A02-01
- Tarot M3 head nut / golden TL100A02-02
- Tarot Metal synchronous wheel TL100A03
- Tarot 150MXL, 180MXL PTZ timing belt TL100A04
- Tarot Dia 25MM Camera Mount Block TL100A05
- Tarot non-full-size pitch axis support arm TL100A06
- Tarot full frame shall pitch support arm TL100A07
- Tarot Dia 25MM PTZ pitch damping seat / deceleration Block group TL100A08
- Tarot Dia 25MM head roll / pitch connection Block group TL100A09
- Tarot 130T PTZ synchronization wheelTL100A10
- Dia 25MM PTZ direction / rollover connection Block group TL100A11
- The PTZ server seat of Tarot Dia 25MM group TL100A12
- Tarot Dia 25MM PTZ roll damping Block group TL100A13
- Tarot Metal 32T PTZ server synchronization wheel TL100A14
- Tarot 360 Degree Nuclear-Free digital PTZ servos TL100A15
- TAROT 3 axis PTZ rudder assembly TL100A16
- TAROT 3 axis head the shock absorbers assembly TL100A17
