Tarot TL300L2 Mini OSD Image Video Overlay overlap GPS System V2.0 GPS GLONASS M8N

Availability: In stock, usually dispatched in 1 business day

  • Price:$40.58
  • Price in reward points: 406 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $39.77 $38.96 $37.74 $36.12 Contact US
Quantity:

Tarot TL300L2 Mini OSD Image Video Overlay overlap GPS System V2.0 GPS GLONASS M8N

Product description:
- Tarot new mini OSD can be applied to various types of model aircraft,such as aircraft leisure entertainment, professional sports.Mini size,highly integrated internal procedures, simple and convenient operation,it can detect the current state for the aircraft.
- It is compatible for most GPS and camera,being convenient for the customers to use.

Product parameters:
Power supply: DC6-26V (with reverse protection, with the camera voltage output, the output voltage and the input voltage equal)
Working environment temperature: -15 to 75 degrees Celsius
Net weight: about 5.8G (only OSD, does not contain GPS, camera, etc.)
Menu language: Chinese, English
Product size: 58*20*5.5mm
Can be equipped with camera: P /N system
Storage environment: -30-60 degrees Celsius
Power consumption: <0.7W (only OSD operation)
Sensor: compass, barometer, gyroscope, accelerometer

Functional characteristics:
- With the barometer and the gyroscope, it can read the flight altitude, speed, distance, attitude angle, direction and range;
- It can run independently without connecting to flight control;
- The installation direction can be set according to user needs. It can adjust data automatically aftering set up and does not affect the normal use;
- Small size means small burden on the flight and it is suitable for Traversing aircraft flight;
- Timing function, can cumulate the accumulated flight time;
- During the flight,it can achieve real-time voltage monitoring to avoid the crash risk of flying aircraft without electricity;
- It can be compatible with different baud rates and most of the generic GPS (universal GPS protocol is NEMA0183);
- Simple settings, clear display interface;
- Free computer settings for the parameters, you can turn on or off the data display;
- Two main interface options: Chinese interface / English interface to facilitate the use for different groups of people;
- It can conduct automatic identification on the camera N system P;
- It can determine the home direction through the remote control, it also can be set to automatical location home or set home orientation through the button .

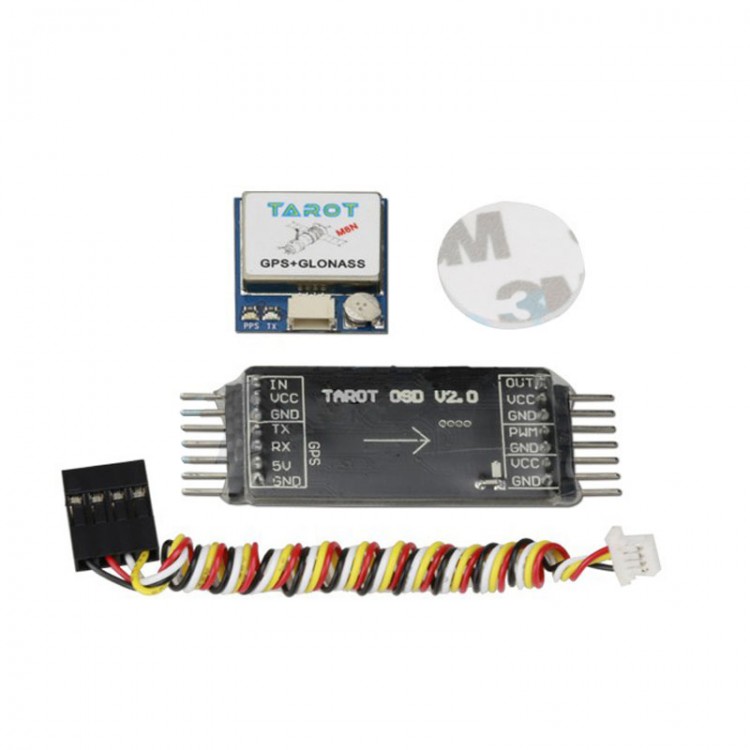

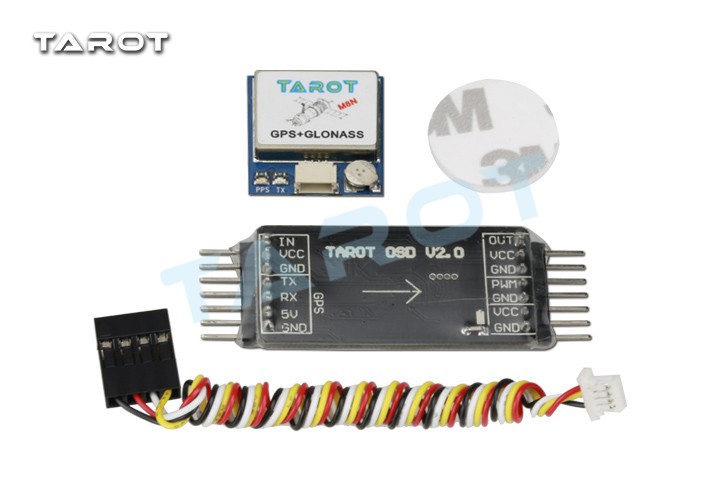

Package List:
- 1 x OSD Video overlap system
- 1 x GPS module
- 1 x OSD-GPS Connection wire
- 1 x 3M paste
- 1 x Instructions
