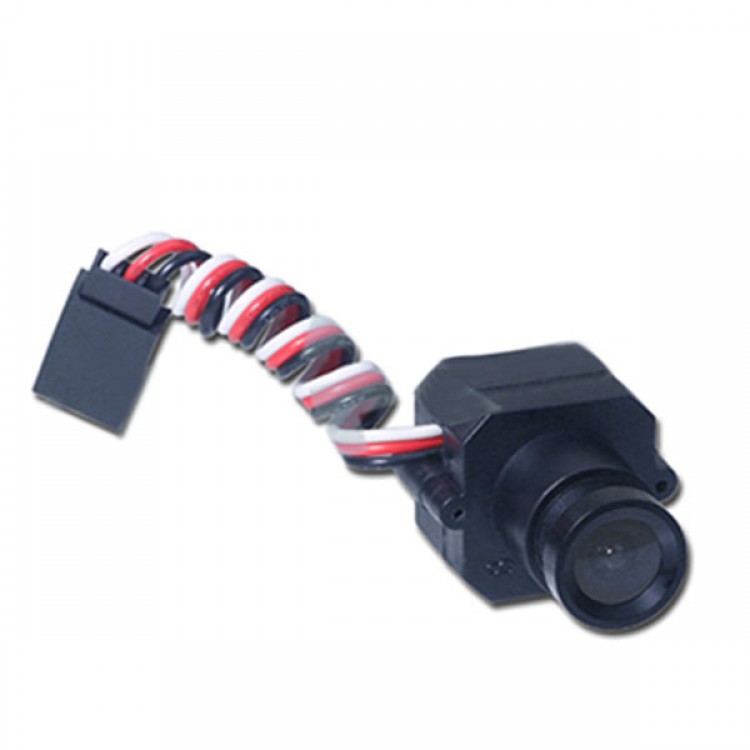

Tarot TL300MN FPV Camera 520TVL Lens for RC Multicopters Photograhy NTSC
Description:
- 520TVL HD mini color camera
- 100 degree 2.8mm focal length
- Suitable for mini200/250/300 mini QAV, FPV photography, monitoring area
- Small volume, built in step down module
- Can directly connect with 3S 11.1V lipo battery to use
Parameters:
- Definition: 520TVL lines HD
- Available pixel: NTSC=720(H)×487(V)
- Video format: NTSC
- COMS sensor: 1/3 inch HD Color CMOS
- Video output: 1.0Vp-p/75Ω
- Min illumination|: 0.008Lux low illumination
- Power consumption: 40MA ±10%
- Operating voltage: DC5-15V ±10%
- Synchronous system: synchronization
- SNR: larger than 50dB
- Electronic shutter (N)1/60-1/10000s, (P)1/50-1/10000s
- Operating degree: 0℃~45℃
Package includes:
- Tarot TL300MN FPV Camera 520TVL Lens for RC Multicopters Photograhy NTSC
