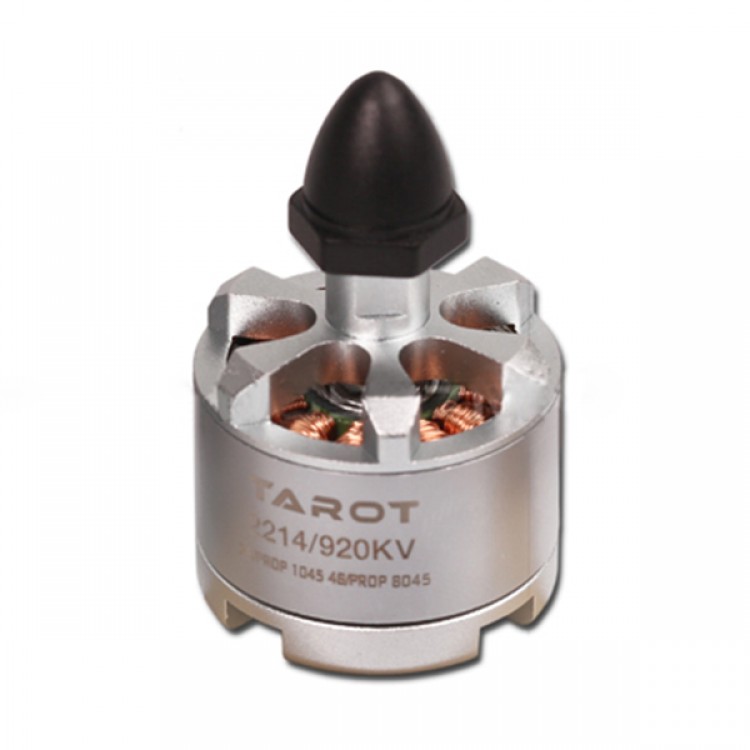

Tarot TL9028 2214/920KV Motor Self-locking 12N14P Anti-Thread Motor for Quadcopter Hexacopter
  • Tarot TL9028 2214/920KV Motor Self-locking 12N14P Anti-Thread Motor for Quadcopter Hexacopter
  • Tarot TL9028 2214/920KV Motor Self-locking 12N14P Anti-Thread Motor for Quadcopter Hexacopter

  • SKU:28243
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 2
  • Price:$17.99
  • Price in reward points: 180
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.63 $17.27 $16.73 $16.01 Contact US

Tarot TL9028 2214/920KV Motor Self-locking 12N14P Anti-Thread Motor for Quadcopter Hexacopter

Description:
- TarotTL9028 is suitable for 2KG 4 axis , 6-axis etc multi axis aircraft.  920KV multiaxial efficient brushless motor designed for multi- rotor design, High-speed bearings ensure smooth motor. Products shipped before the whole system have been detected with high accuracy balancing test to maintain Stability when operating permit motor. The stator imported 0.20mm ultra-thin high-efficiency silicon steel and high temperature strength magnet, a thin Type silicon steel motor with low heat to make more efficient features. Motor superstructure with Significant brand features top design high efficiency initiative scattered pad , a lower operating temperature means higher efficiency.

Note: The black cap is threaded along , using carbon fiber paddle black top 9443 TL2866


Tarot 2214/920KV motor Specifications:
- Motor frame : 12N14P
- Number of battery cells support : 3S
- Motor winding turns : 14Turn Delta
- Diameter :3-Strond 0.23mm
- Per volt Speed ​​: 920RPM/Volt
- No-load current (10V): 0.4A
- Motor outside diameter : 28mm
- Maximum constant current : 10.3A
- Maximum continuous power : 114W
- Resistance : 180mΩ
- Motor Weight : 51Grams ( with 600mm cable )
- Dimensions : 27.9mm diameter * 40.7mm height

Package list:
- 1 x Tarot TL9028 2214/920KV Motor
