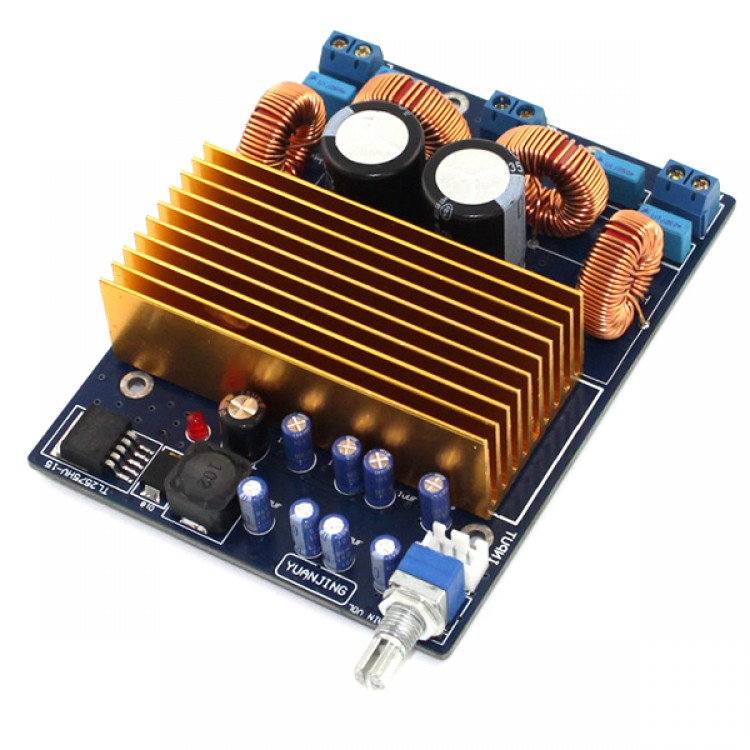

TAS5611 Digital Amplifier Board 125W+125W Large Power Board TAS5611 OPA1632DR

Availability: In stock, usually dispatched in 1 business day

  • Price:$30.22
  • Price in reward points: 302 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $29.62 $29.01 $28.10 $26.90 Contact US
Quantity:

TAS5611 Digital Amplifier Board 125W+125W Large Power Board TAS5611 OPA1632DR

Description:

- Adopting TAS5611, OPA1632DR
- Main filter electrolysis capacitor adopts famous brand, capacity 3300UF/35V*2, gurantee the strong driving support
- Resistor adopts 5 loop resistor,main loop adopts precision ±1% metal film resistor, guarantee the good SNR
- Adopting red grey ring large current inductance, gurantee the clear sound
- PCB adopts 1.6mm thickness two sides board, 2.0 oz copper thickness, tin plated machining

Parameters:
- Working mode: D type
- Static current: 65mA
- Working efficiency: 88%
- Output power: 2*125W/4ohm 10% THD
- Frequency response: 20HZ---20KHZ
- Dyanmic range: >100dB
- SNR: 100dB(A-Weighted)
- Working voltage: DC32V
- PCB size: 110*83mm
