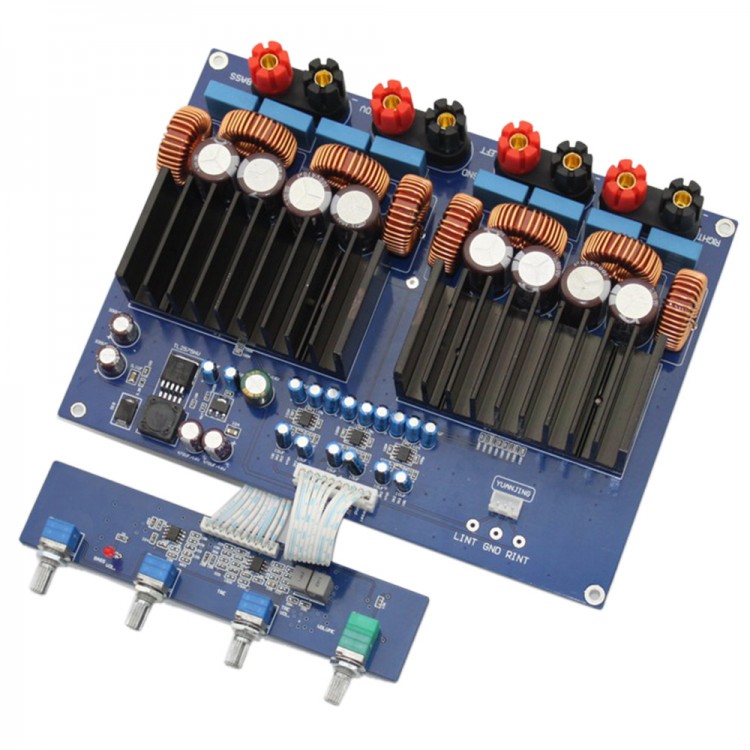

• TAS5630 2.1 Class D DC48V 1200W High-Power Stereo Digital Amplifier Board Audio Amp

TAS5630 2.1 Class D DC48V 1200W High-Power Stereo Digital Amplifier Board Audio Amp

Availability: In stock, usually dispatched in 1 business day

  • Price:$78.69
  • Price in reward points: 787 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $77.12 $75.54 $73.18 $70.03 Contact US
Quantity:

TAS5630 2.1 Class D DC48V 1200W High-Power Stereo Digital Amplifier Board Audio Amp

Description:

OPA1632 is a fully differential amplifier for driving high performance audio analog-to-digital converter (ADCs). The highest audio quality, which provides very low noise and output driver, optimized for this application of gain bandwidth design. OPA1632 180MHz 50V/ s and very fast conversion speed, produce very low distortion 0.000022%. input noise 1.3nV/ root Hz to further ensure the ratio and dynamic range and signal-to-noise . Full differential structure flexibility, can easily realize single ended differential output conversion. Differential output decreased even harmonics, ADCs provides high performance audio PCM1804. excellent performance drive to reduce common mode noise OPA1632 interference, such as the use of shutdown function also enhances the flexibility .TAS5630 amplifier is integrated analog input 300W stereo feedback (total D class 600W amplifier, capable of providing up to 300W stereo from a single supply 50V to 4 ohm speakers (THD <0.03%). Its SNR is greater than 100db; PSRR is 80dB, and the power level is up to 88%.

Features:
- Adopting original TAS5630, OPA1632DR, TL072
- Main filter electrolysis capacitor adopts famous brand one, capacity is 330UF/100V*4, providing continuous driving support
- Resistor adopts 5 loop resistor,main loop adopts precision ±1% metal film resistor, guarantee the good SNR
- Adopting full screening large current inductance
- PCB adopts 1.6mm thick two sides board, 2.0 oz copper thickness, tin plated machining

Parameters:
- Working mode: Class D
- Static current: 120mA
- Working efficiency: 88%
- Output power: 600W/3Ohm*300W/6ohm 10% THD
- Frequency response: 20Hz---20KHz
- Dynamic range: >100dB
- SNR: 100dB(A-Weighted)
- Working voltage: DC48V
- PCB size: 190*140mm
- Potentiometer function:
  from left to right: 1. Subwoofer 2.Left and right channel  high pitch;3.Left and right channel volume;4.total volume
- The connection line is 280MM
- Potentiometer spacing:35MM

Package included:
- 1 x Digital Amplifier
