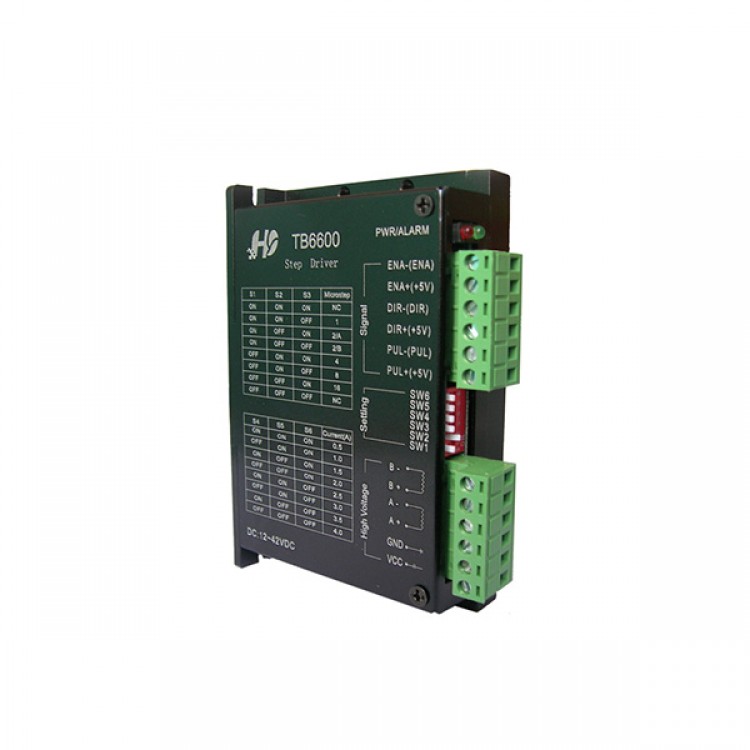

TB6600 CNC Single Axis Two Phase Hybrid Stepper Motor Driver 16 Segment 42V Max
Features:
- High integration and high reliability
- Interface signals and high-speed optical coupling isolation
- Max 4.5A large current output
- Max input DC42V
- Overvoltage, undervoltage. Over-current protection alarm function
- Automatic flow, reduce energy consumption
Signal input terminal
- CP+:Pulse singnal input +
- CP-:Pulse singnal input -
- DIR+:motor direction control +
- DIR-:motor direction control 1-
- EN+:motor off control +
- EN-:motor off control -
Motor winding connection:
- A+: A+ phase
- A-:A- phase
- B+:B+phase
- B-:B- phase
Working voltage:
- VCC:DC current +
- Working voltage range:10V<VCC<42V
- GND:DC power -
| Voltage |
S4 |
S5 |
S6 |
|
0.5A |
ON |
ON |
ON |
|
1.0 |
OFF |
ON |
ON |
|
1.5 |
ON |
OFF |
ON |
|
2.0 |
OFF |
OFF |
ON |
|
2.5 |
ON |
ON |
OFF |
|
3.0 |
OFF |
ON |
OFF |
|
3.5 |
ON |
OFF |
OFF |
|
4.0 |
OFF |
OFF |
OFF |
