TBS DOMINATOR RX 5G8 5.8G 40CH Receiver Rx for FPV Fatshark Dominator Video Goggles

TBS DOMINATOR RX 5G8 5.8G 40CH Receiver Rx for FPV Fatshark Dominator Video Goggles

Product Description
This 5.8G receiver module is made specially for theFatshark Dominator. Featuring custom, high-sensitivity 5.8 GHz receiver modules compatible with all 5.8 GHz systems sold to date. More specifically transmitters sold by HobbyKing, Foxtech, etc and out-of-the-box systems such as the SpyHawk FPV are supported, as well as all Airwave-compatible transmitters (e.g. ImmersionRC).

Note:compatibility with Airwave is provided, but the quality will not be desirable. We suggest the use of BOSCAM video transmitters.

Instructions
Place the module into your Fatshark Dominator receiver. Toggle between bands by pushing (and holding) the golden button. The receiver will display the currently active band with the LED.

- 1 flash = BOSCAM Band A
- 2 flashes = BOSCAM Band B
- 3 flashes = BOSCAM Band E
- 4 flashes = Airwave
- 5 Rceband racing band
  Toggle channel within bands using the Fatshark channel select buttons.

Specifications

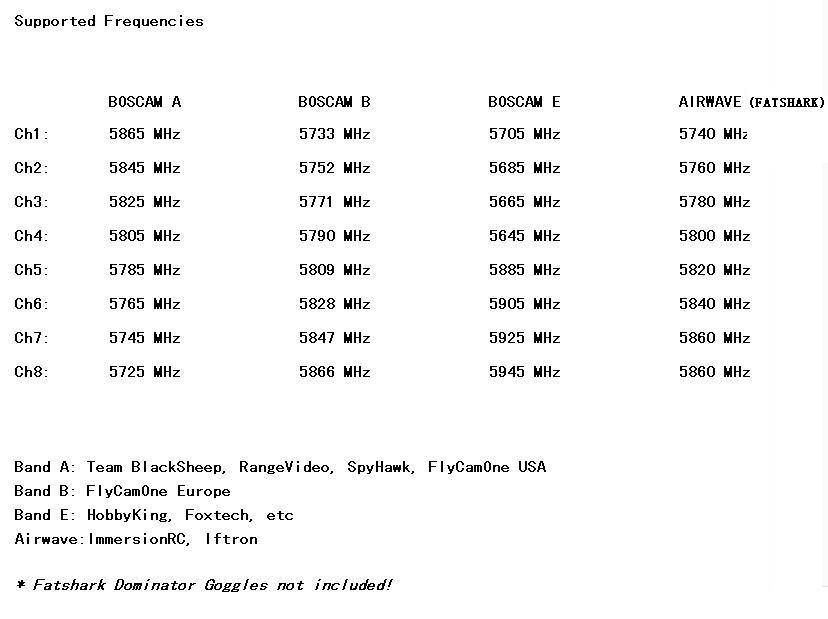

- 32 channels (4 Bands with 8 channels each)
- Sensitivity: -90dBm
- Works with all BOSCAM A/V transmitters (200mW, 400mW, 500mW)
- Works with Airwave transmitters (tested with the new ImmersionRC 600mW)*
- 3 – 5V operating voltage
- RP-SMA antenna connector
- Fatshark Dominator compatible, toggles channels using the Fatshark button!
- Can beinstalled into Fatshark Attitude goggles!

Note: Airwave frequency support is not full spec. Range is affected, as well as transmission picture quality! We highly recommend the use of BOSCAM transmitters

Package List:

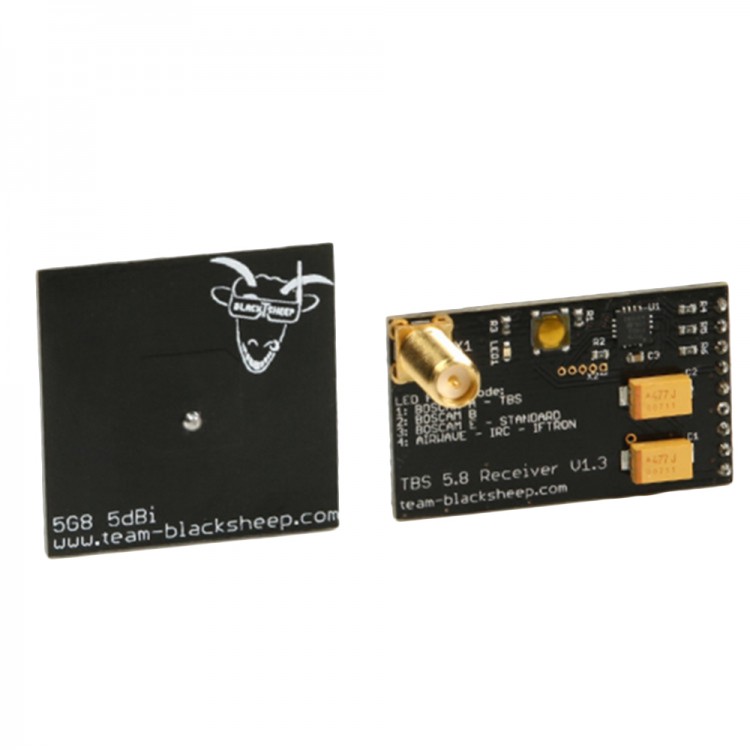

- 1 x 5.8 GHz TBS Fatshark Dominator Receiver
- 1 x 5.8 GHz 5dbi RHCP Patch Antenna – designed by IBCrazy
