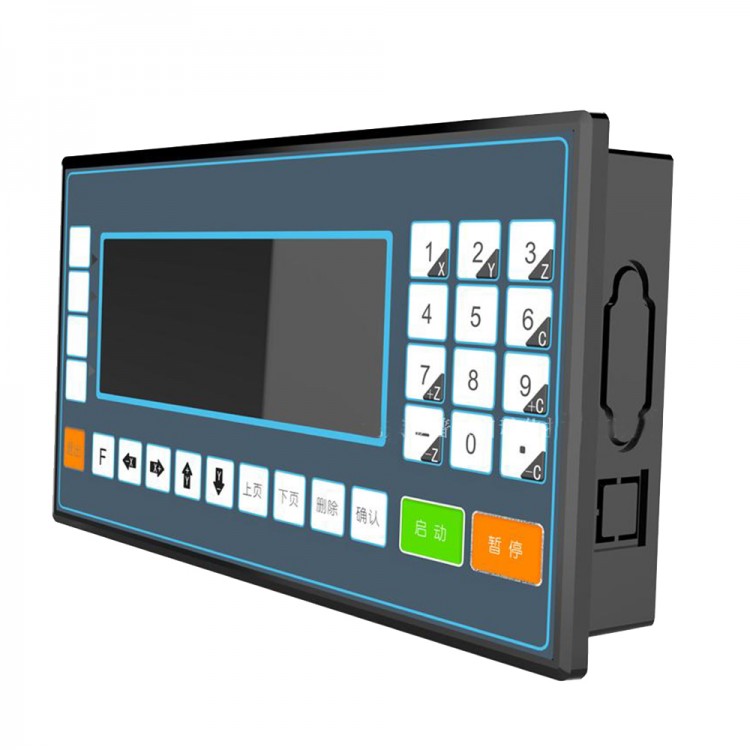

TC5510 LCD Single Axis Stepper Motor Controller Multi-Rotor Motion Control System for Motor Servo CNC

TC5510 LCD Single Axis Stepper Motor Controller Multi-Rotor Motion Control System for Motor Servo CNC

Description:
- The TC55 panel-type motion controller (CNC system) uses high-performance 32-bit CPU.
- The drive device adopts subdivision stepping motor or AC servo motor. It is equipped with LCD monitor and fully enclosed touch-type operating keyboard. The system has high reliability, high precision, low noise, it is easy to operate etc.

Main Funtion
- Automatically execute  Actual running, Dry running, Single-step execution, Terminate    program, Start and Pause function
- Manual operation Manual high speed, Manual low speed, Jog operation, Back to program zero, Back to machine zero
- Program management absolute programming, Incremental programming, linear and circular interpolation, back to machine zero, sub-program call,register, delay, repeat, Output, PLC set,Pause
- Parameter settings Set various control parameters of processing and operation, get the best status of processing effect
- Exterior Manual Operation: control motor clockwise and counter-clockwise spinning, Start, Pause, Alert and Emergency Stop.
USB Connection and upgrade
- PLC Extension
- I/O Extension
- Isolated I/O port
- Chinese/English panel display

System components
- High-performance , high-speed 32-bit processor
- Liquid crystal display ( resolution : 192 & ts; 64)
- Special motion control chip ( signal output : unipolar , direction + )
- Input / Output ( 16 electrically isolated 24V input , 8 electrically isolated 24V output )
- Users machining program memory ( can store 20 programs )
- The maximum number of program lines 480 lines
- Film array of keys ( 28 keys )

Package included:
- 1 x  Stepper Motor Controller
