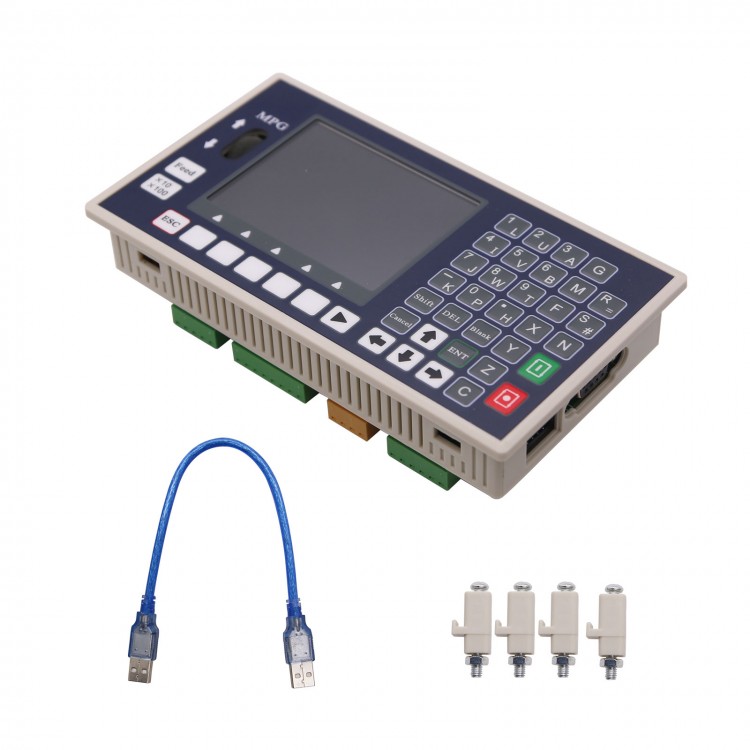

TC5510H Single Axis Stepper Motor Controller Motion Control System for Motor Servo CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$126.12
  • Price in reward points: 1261 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $123.60 $121.08 $117.29 $112.25 Contact US
Quantity:

TC5510H Single Axis Stepper Motor Controller Motion Control System for Motor Servo CNC

Product Introduction

TC55210H is an upgrading version of TC55. It can control 1 feeding axis, 1 analog spindle. It is equipped with 16 input port and 8 output port, supporting importing G code files from USB stick.

USB port, import picture and boot picture
- 2ms interpolation cycle
- Frequency for single axis linear interpolation output pulse is 400k
- Frequency for circular interpolation output pulse is 300k
- Frequency for 4 axis linear interpolation output pulse is 350k

Technical Specifications
- Minimum data unit 0.001 mm
- Maximum data size ± 99999.999mm
- Maximum Speed: 24m/min (pulse is 0.001mm)
- Maximum pulse output frequency 400KHz
- Axis 1 (X)
- Electric Gear: numerator :1-99999 denominator: 1-99999
- USB: Importing program and boot picture
- Isolated I/O port
- Maximum Program Line: 1000
- Maximum Program: 99
- RAM: 128M
- External Manual Operation: motor clockwise and counter clockwise spinning, start, pause, alert and stop
- G code and M code
- One panel MPG
- 3.5 inch color LCD, pixel 320*240
- Analog Spindle Output: one 0-10v analog spindle
- Support both servo and stepper motor
- Support metric system, round, division, degree, inch etc.

Package included:
- 1 x  Stepper Motor Controller
