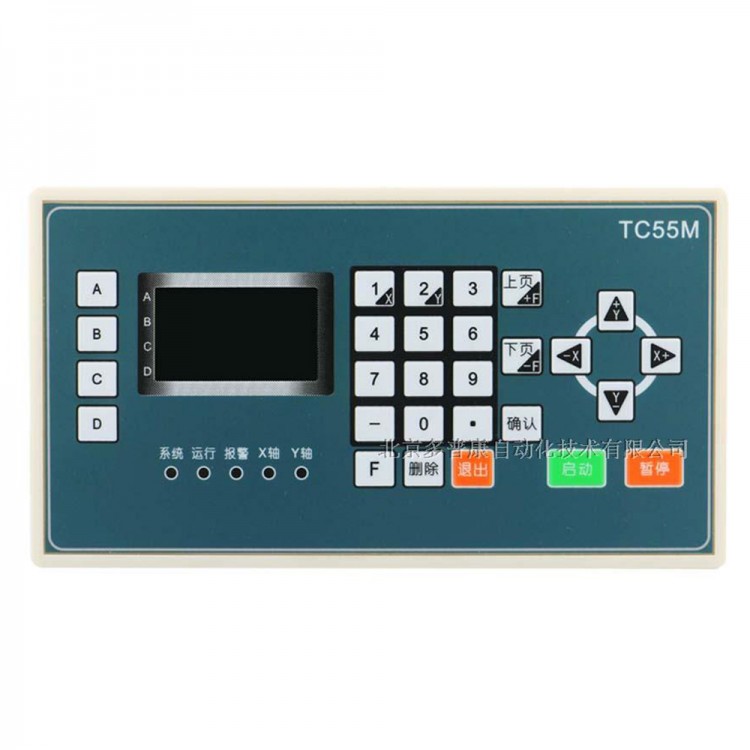

TC5510M LCD Stepper Motor Controller Motion Control System for Motor Servo CNC
Description:
- The TC55M motion controller (CNC system) uses high-performance 32-bit CPU.
- The drive device adopts subdivision stepping motor or AC servo motor. It is equipped with
- LCD monitor and fully enclosed touch-type operating keyboard. The system has high reliability, high precision, low noise, it is easy to operate etc.
Main Funtion
- Automatically execute Actual running, Dry running, Single-step execution
- Manual operation: Motor CW CCW,Back to program zero, Back to machine zero,output control
- Program management: Programming, Incremental programming, linear and circular interpolation, back to machine zero, sub-program call,register, delay, repeat, Output, PLC set,Pause
- Parameter: System parameter,system self-detection, IO setting, user password management
- Exterior Manual Operation: control motor clockwise and counter-clockwise spinning, Start, Pause, Alert and Emergency Stop.
- Input function: Can set by input port
- Command: 20 commands
Specification:
- Power consumption: 7W
- Non coupled load capacity: 70W
- Power supply: 24V DC
- Coupled load capacity: 50W
- Dimension: 172*94*30mm
- Embedded port size: 162*84 mm L*W
- Front panel thickness: 4mm
Package included:
- 1 x Stepper Motor Controller
