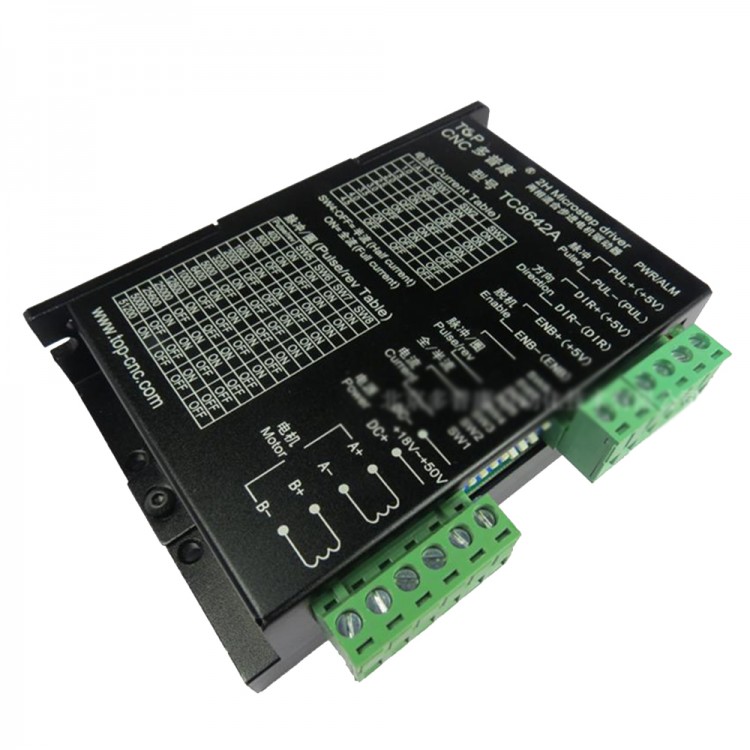

TC8642A 2-Phase Microstep Driver Hybrid Stepper Motor Drive for Engraving Machine CNC
Description:
TC8642A is 2 phase hybrid step motor, upgraded version on the basis of TC8642. 18-50V power supply, for the motor that the driving voltage is 24-50V,current is less than 4.5A, diameter 42 57 series . For the devices like engraving machine, machinery and transmission equipment and so on.
Parameter:
- Input voltage: DC 18-50V
- Input current: >4.5A
- Output current: 1.0-4.5A
- Power consumption: 80W 6
- Temperature: -10~45 deg C
- Storage temperature: -40~70 deg c
- Weight: 200g
Features:
- 2 phase sinusoidal current drive output
- DC 18-50V power supply
- Photoelectric isolation signal input/output
- Over-charging, undervoltage,over-current and short circuit protection
- 14 microstep and auto half current function
- Offline function
- HIgh speed and high torque
Package included:
- 1 x Stepper Motor Driver
