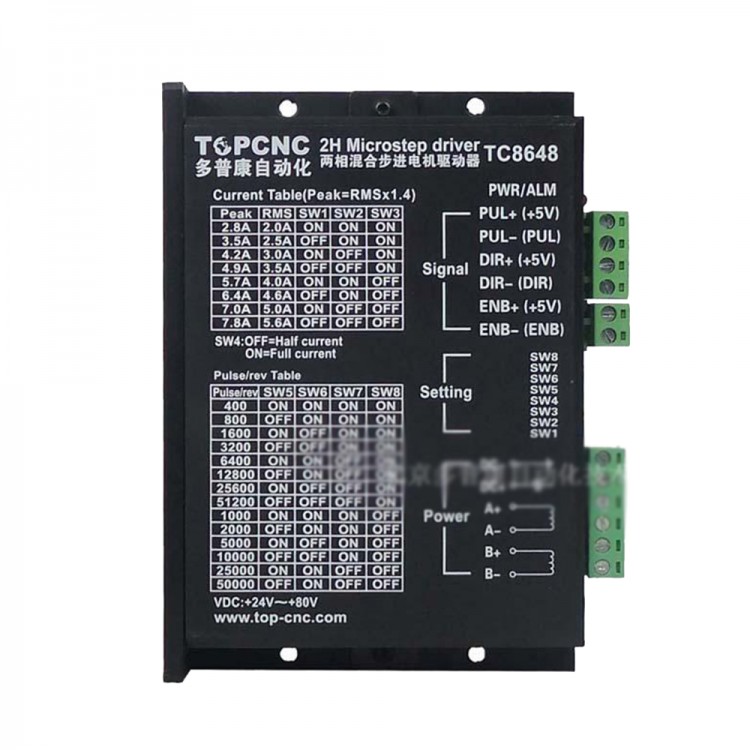

TC8648 2-Phase 256 Microstep Driver Hybrid Stepper Motor Drive for Engraving Machine CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$64.69
  • Price in reward points: 647 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $63.40 $62.10 $60.16 $57.57 Contact US
Quantity:

TC8648 2-Phase 256 Microstep Driver Hybrid Stepper Motor Drive for Engraving Machine CNC

Description:

TC8642A is 2 phase hybrid step motor, upgraded version on the basis of TC8642. 24-80V power supply, for the motor that the driving voltage is 24-80V,current is less than 8A, diameter 57-110mm series . For the devices like engraving machine, machinery and transmission equipment and so on.

Parameter:
- Input voltage: DC 24-80V
- Input current: <6A
- Output current: 2.8-7.8A
- Power consumption: 80W 10A
- Temperature: -10~45 deg C
- Storage temperature: -40~70 deg c
- Weight: About 500g

Features:
- 2 phase sinusoidal current drive output
- DC  24-80V power supply
- Photoelectric isolation signal input/output
- Over-charging, undervoltage,over-current and short circuit protection
- 14 microstep and auto half current function
- Offline function
- HIgh speed and high torque

Package included:
- 1 x Stepper Motor Driver
