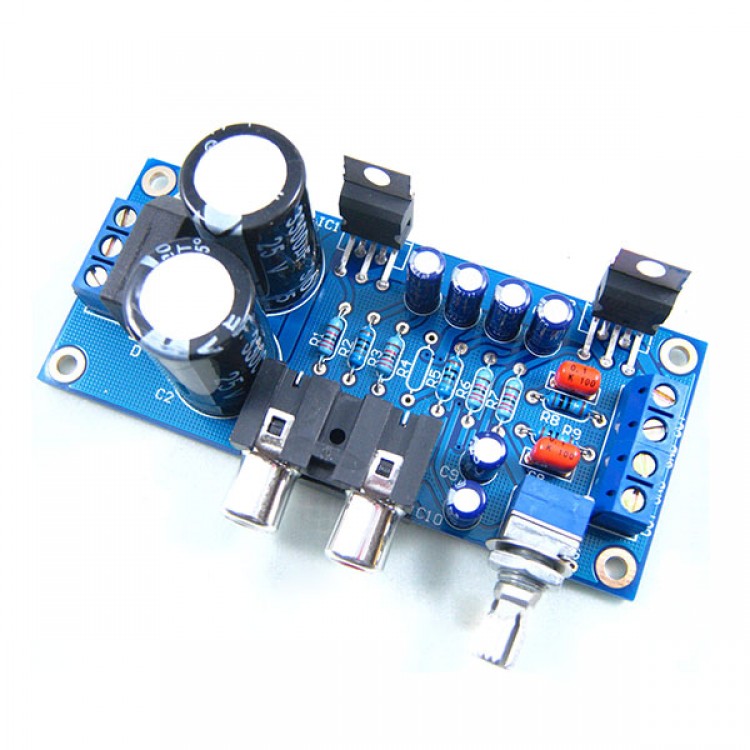

TDA2030A Audio Power Amplifier DIY Kit Components OCL 18W x 2 BTL 36W
  • TDA2030A Audio Power Amplifier DIY Kit Components OCL 18W x 2 BTL 36W
  • TDA2030A Audio Power Amplifier DIY Kit Components OCL 18W x 2 BTL 36W

  • SKU:26642
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 1
  • Price:$7.49
  • Price in reward points: 75
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $7.34 $7.19 $6.97 $6.67 Contact US

TDA2030A Audio Power Amplifier DIY Kit Components OCL 18W x 2 BTL 36W



Note: what you will receive are just components and you need to assemble it by yourself

Features:
- Great PCB for Two kind of connections (OCL and BTL)
- Double kneading board design
- PCB Size:40mm X 92mm X 1.6mm
- Power Input:2 X 12VAC, that is 12V - 0 -12V AC
- Dual-channel kit can be accessed by OCL or mono BTL circuit, flexible, wide range of applications. The famous 1% metal film resistors in China, Panasonic capacitors and Wima film capacitors, two Rubycon 3300uF/25V filter capacitors. Volume on the design board potentiometer.The circuit board design is reasonable, low noise, high performance-price ratio, is the beginner's first choice!

NO 1:
- For OCT Type, R4 needn't to be connected.

No 2:
- For BTL Type, C9 needn't to be connected and singnal is inputed from the right part of the RCA sockets.



Package Include:
- PCB,Components,installation drawing.

List

Double-Sided PCB
1
1 Ohm metalfilmresistor
2
TDA2030A+Insulating Material
2
680 Ohm metalfilmresistor
2
3300U/25V  (Rubycon)
2
4A/600V  Rectifier bridge
1
22u/50V  (panasonic)
4
2 wire holder
2
2.2u/50V (panasonic)
2
3 wire holder
1
0.1u WIMA
2
Installation drawing

1

22K Metalfilmresistor
5
RCA sockets & Potentiometers
1
