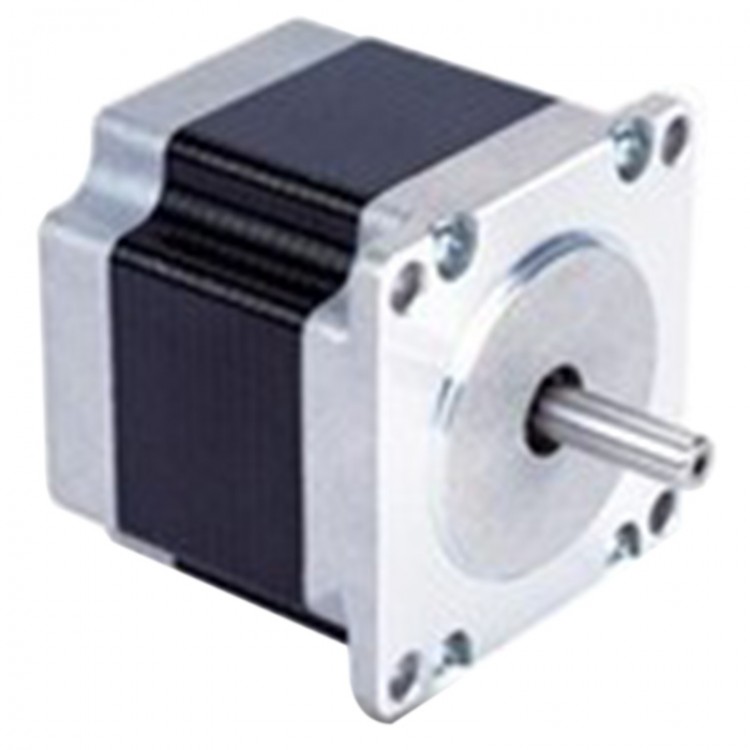

• TDA204-S 1.8 Degree 5.9V 6A 0.43N.m Three-Phase Asynchronous Stepping Motor for CNC

TDA204-S 1.8 Degree 5.9V 6A 0.43N.m Three-Phase Asynchronous Stepping Motor for CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$26.99
  • Price in reward points: 270 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $26.45 $25.91 $25.10 $24.02 Contact US
Quantity:

TDA204-S 1.8 Degree 5.9V 6A 0.43N.m Three-Phase Asynchronous Stepping Motor for CNC

Parameters:
- Holding torque: 0.43N.m
- Step angle: 1.8degree
- Voltage: 5.9V
- Current: 6A
- Resistance:5.9Ohm
- Inductance: 7.8mH
- Motor length: 51mm
- Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Voltage: 500V AC 1minute
- Insulation class: F

Package included:
- 1 x Stepping Motor
