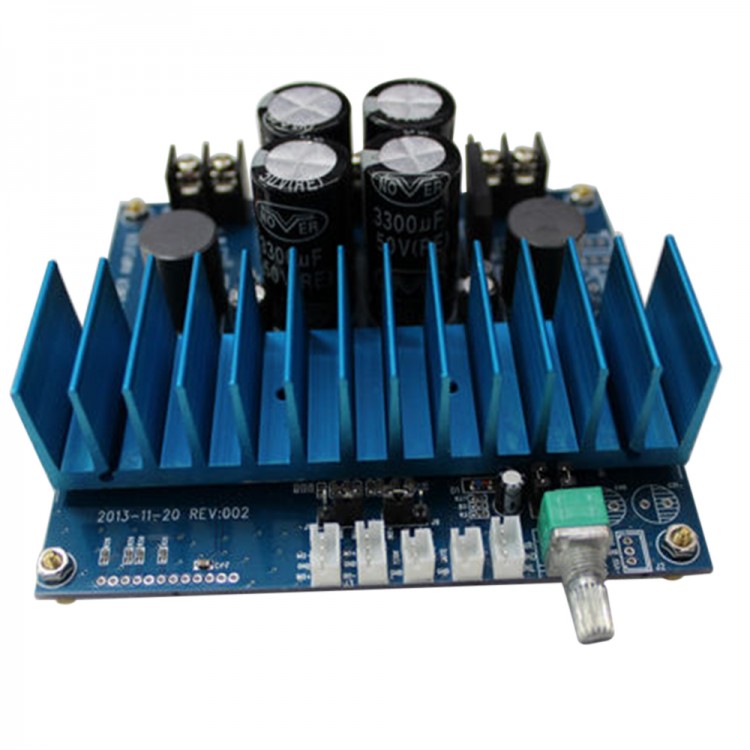

TDA8950 150W+150W Digital Amplifier Board Dual Channel HIFI Audio Amp for DIY
  • TDA8950 150W+150W Digital Amplifier Board Dual Channel HIFI Audio Amp for DIY
  • TDA8950 150W+150W Digital Amplifier Board Dual Channel HIFI Audio Amp for DIY

  • SKU:46688
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 3
  • Price:$31.00
  • Price in reward points: 310
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $30.38 $29.76 $28.83 $27.59 Contact US

TDA8950 150W+150W Digital Amplifier Board Dual Channel HIFI Audio Amp for DIY

Description:

- Adopt TDA8950 ad the amp chip
- Maximum output power: 150W+150W
- Voltage: AC 18-28V (recommended AC 26V)
- Efficiency: >90%
- Can be OCL with dual channel or BTL with single channel
- OCL mode output : 150W x2
- BTL mode output : 300W x 1
- Can extend the bluetooth function
- No bluetooth board
- Can be a amplifier if be with a transformer
- Can be with preamp board
- Can be with low-pass preamp board for a bass amp board

Features:
- With filter rectifier circuit and 4 pieces NOVER capacitors
- Can choose single end or difference (balance) audio input port
- Can bridge for a channel output 300W
- Reserve LM337 and LM317 voltage position
- Over-heating protection
- Can extend the bluetooth function

Parameter:
- Dimension: 112*110*40
- Maximum output: 150W x 2, 300W x 1
- Operating voltage: AC double 18-28V (recommended AC 26V)

Package included:
- 1 x Digital Amplifier Board
