Teeny1S_F3 OSD BEC Flight Control Board Betaflight STM32F3 Omnibus_S for Multirotor Spare Parts Toys

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.12
  • Price in reward points: 181 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.76 $17.40 $16.85 $16.13 Contact US
Quantity:

Teeny1S_F3 OSD BEC Flight Control Board Betaflight STM32F3 Omnibus_S  for Multirotor Spare Parts Toys

Product Description:
- Integrated Betaflight OSD with Betaflight on-line OSD interface,uses MPU6000 sensor and connect through SPI bus,improve senor sampling rate and MCU master controller programm running frequency.
- Compatible 60MM-80MM small size brushless 4-axis frame
- 16*16mm betaflight STM32F3 OSD BEC Flight Control Board For Multirotor Spare Parts Toys

Specification:

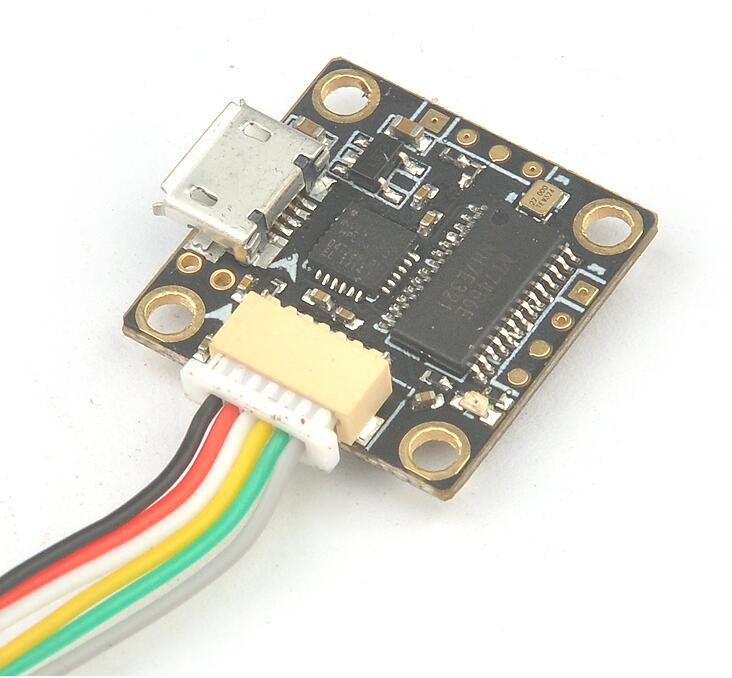

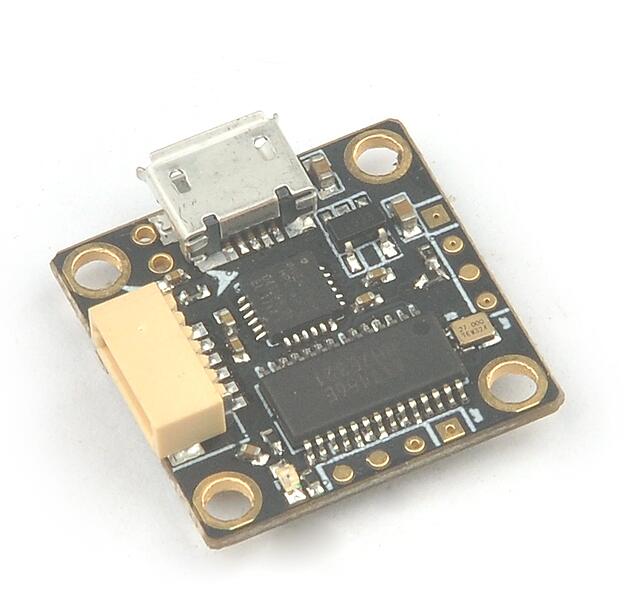

- Item name: Teeny1s F3 flight controller board

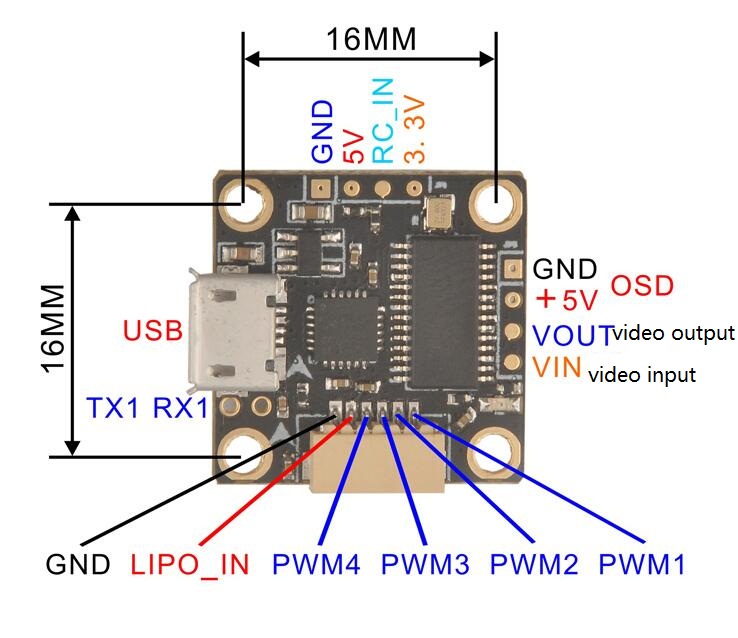

- Size: 20*20mm
- Mounting hole: 16*16mm
- Diameter: 2mm
- Weight: 2.0g

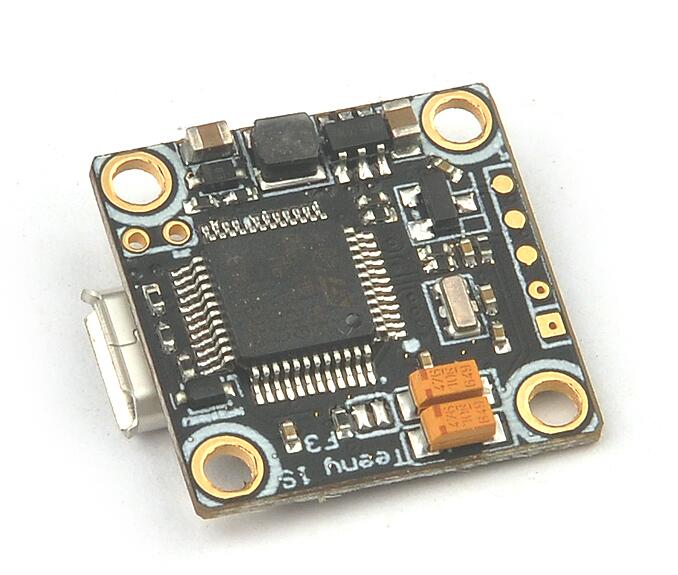

- Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
- Sensor: MPU-6000 ( connected by SPI)
- Firmware version: betaflight_3.1.7_OMNIBUS
- Built-in SESC: 5V/0.5A
- Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
- Power supply: 1S lipo battery (3.3V-4.35V)
- Suitable for 60mm-80mm mini brushless FPV Quadcopter frame

Features:
- Support programmable LED_Strip
- Support BLheli/BLHELI_S suite Pass-through ready
- Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Support the newest DSHOT ESC
- Built-in voltage detection, alarm
- Built-in Betaflight-OSD

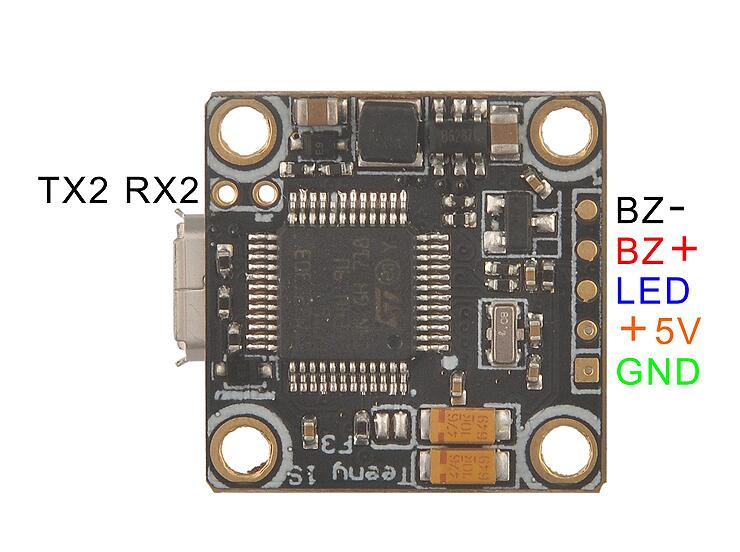

- Buzzer solder pin
- LED_STRIP connector
- BB ring

Notes:
- DSM and SBUS receiver input, please configure RX3(UART3) as input interface.
- DSM receiver power from 3.3V.
- SBUS and PPM receiver power from 5V.

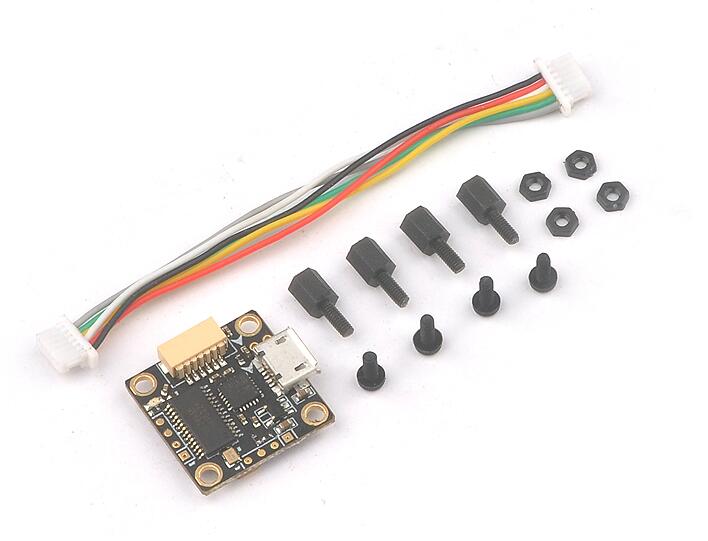

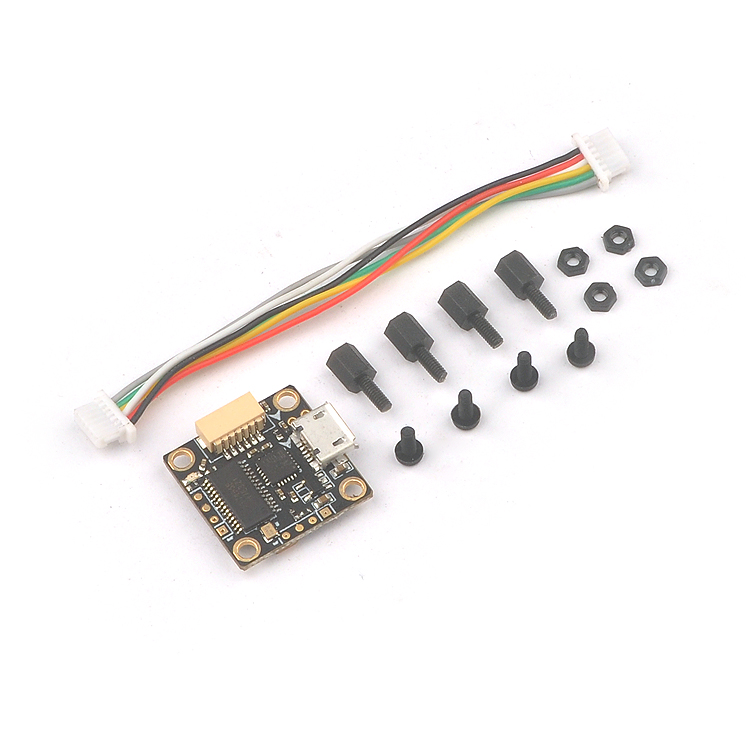

Package included:
- 1 x Flight control board
- 1 x Cables(connection with Teeny1s 6a 4in1 esc)
- 4 x M2*5+5 Nylon column
- 4 x M2 Nuts
- 4 x M2 Screw
