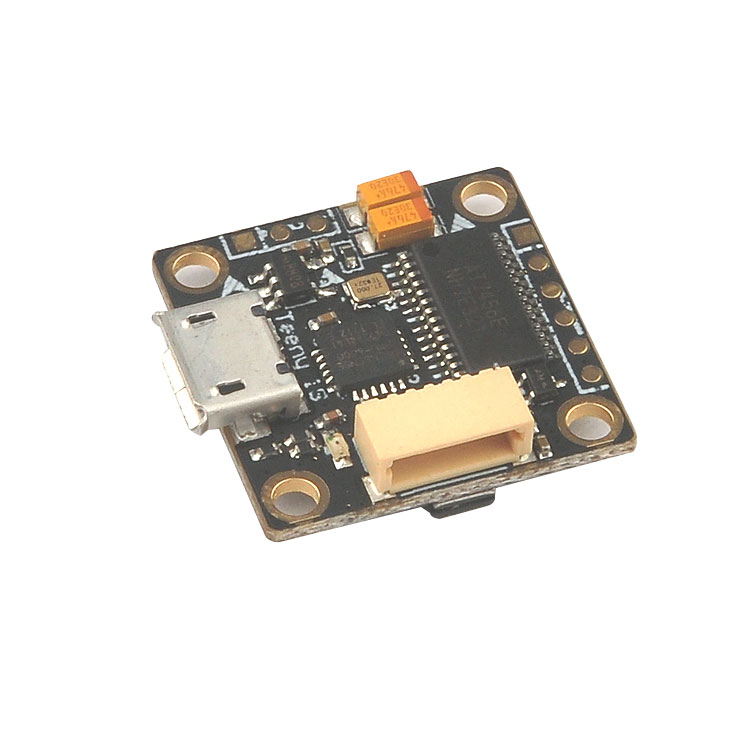

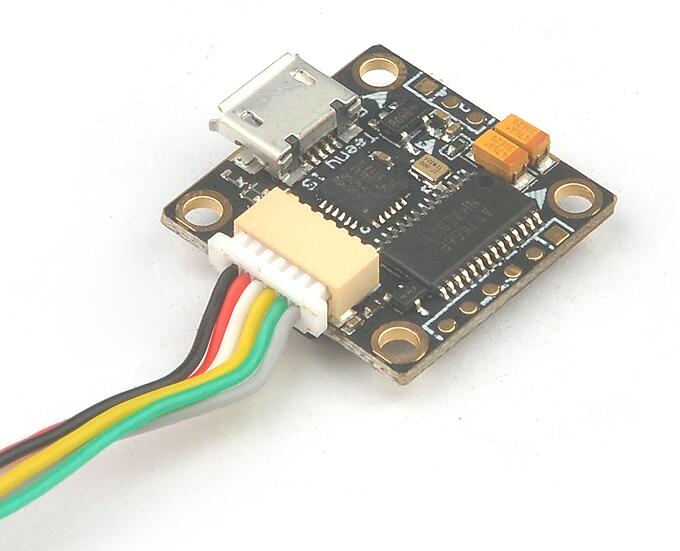

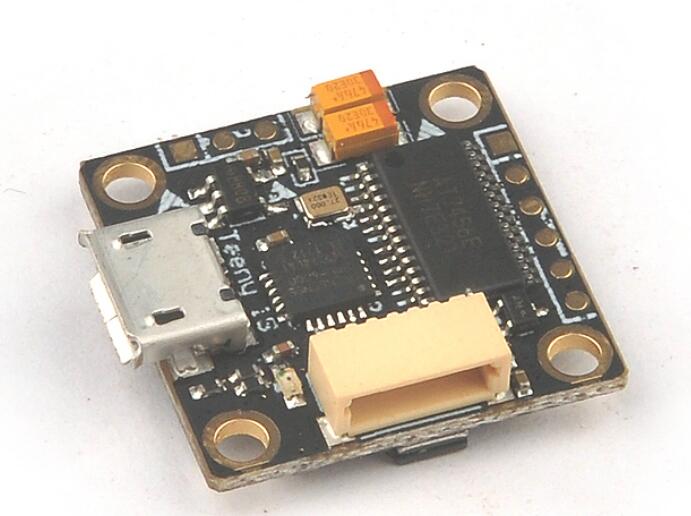

Teeny1S F4 Flight Control Board Integrated OSD Brushless 5V Omnibus_S for FPV Quadcopter

Product Description:
- Teeny1s F4 Flight Control Board Integrated Betaflight OSD,Betaflight GUI real-time OSD interface。
- MPU6000 sensor and connect by SPI bus,improving senor sampling rate and MCU master controller programm running frequency.

Specification:
- Item name: Teeny1s F4 flight controller board

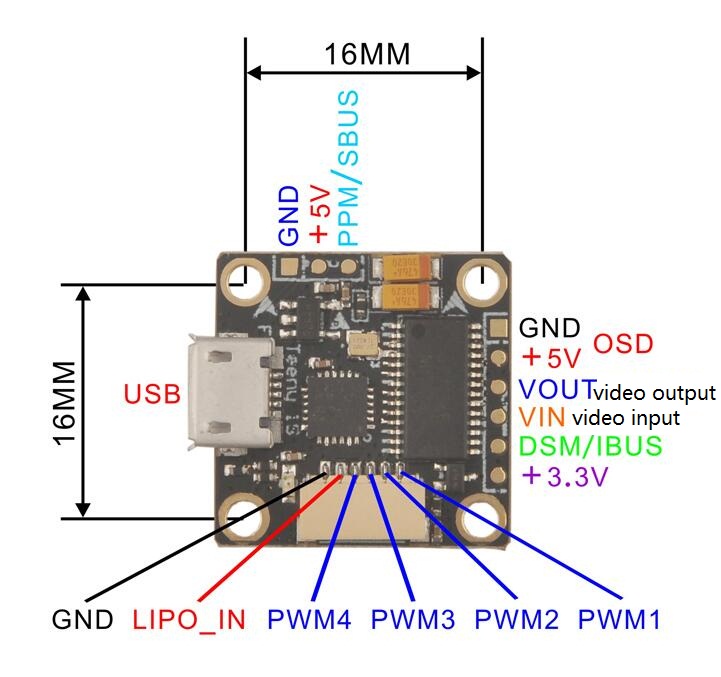

- Size: 20*20mm
- Mounting hole: 16*16mm
- Mount hole Diameter: 2mm
- Weight: 2.3g
- Processor: STM32F405RGT6
- Sensor: MPU-6000 ( connected by SPI)
- Firmware version: betaflight_3.1.7_OMNIBUSF4SD
- Built-in SBEC: 5V 500MA
- Power supply: 1S lipo battery ( 3.3V-4.35V)
- Receiver: PPM, IBUS, SBUS, DSM2, DSMX etc.
- Suitable for Micro FPV brushless frame

Features:
- Support programmable LED Sprit (turn off transponder before using)
- Support BLheli/BLHELI_S suite Pass-through ready
- Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Support the newest DSHOT ESC
- Built-in voltage detection, alarm
- Built-in Betaflight-OSD, Configure by Betaflight GUI

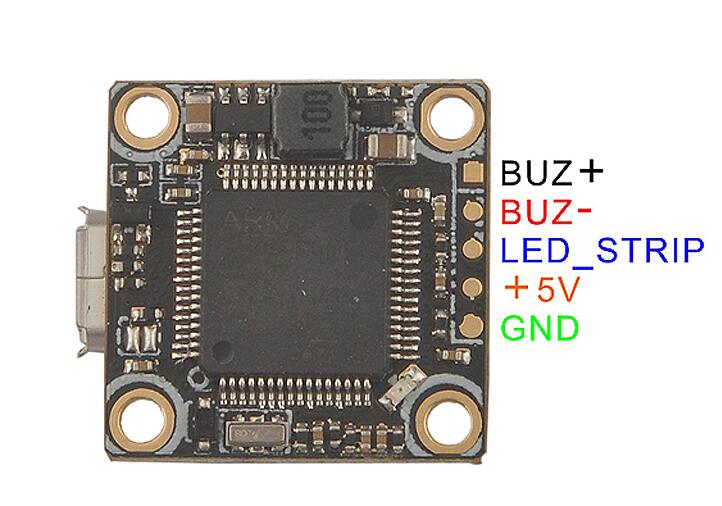

- Buzzer Ready (Solder pin)
- LED_STRIP Ready (Solder pin)

Notes:
-SBUS/IBUS/DSMX receiver please configure RX1(UART1) as input, and enable Serial_RX
-PPM receiver don’t need to enable Serial_RX (PPM receiver need to Disable LED_Strip *Betaflight 3.17 Firmware known issue)
-DSM/DSM2/DSMX receiver power from 3.3V.
-SBUS and PPM receiver power from 5V.

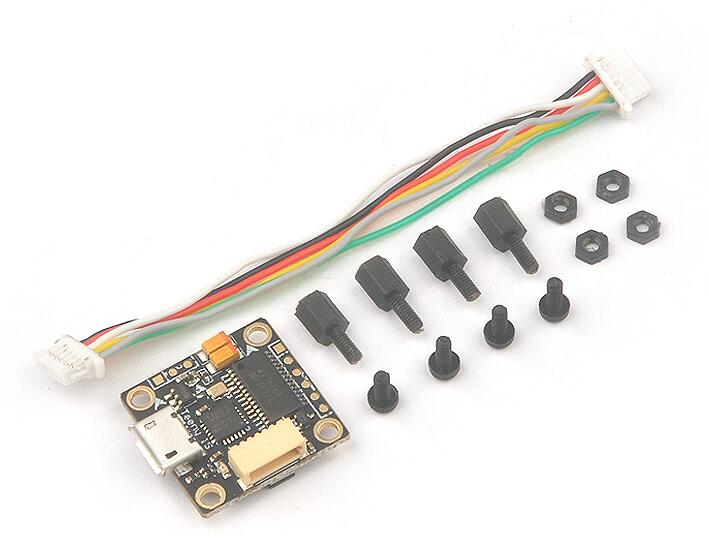

Package included:
- 1  x Teeny1SF4 flight controller board
- 4  x M2*5+5 Nylon column
- 4  x M2 Nuts
- 4  x M2 Screw
