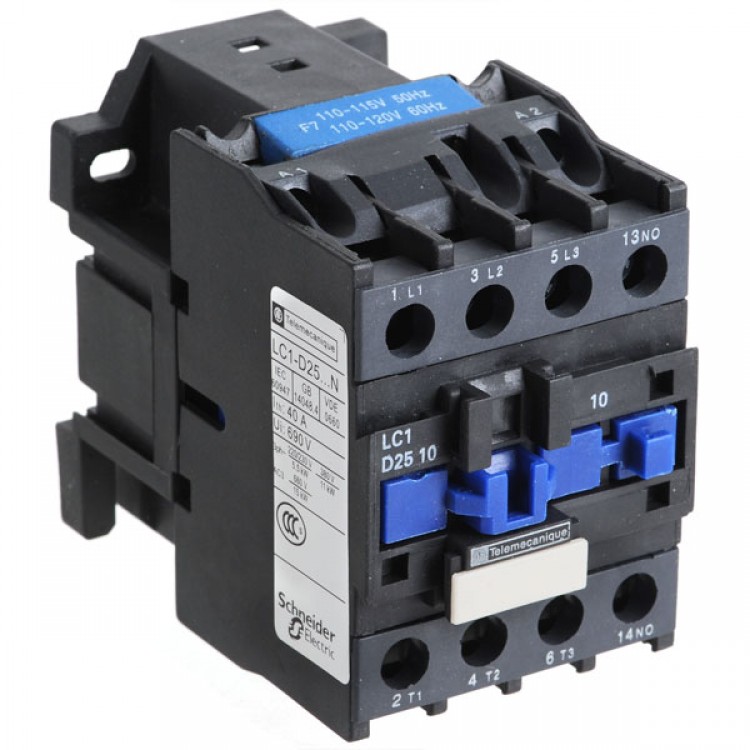

Telemecanique LC1-D2510-B7N Motor Contactor Starter Breaker 24V AC Contactor

Availability: Out Of Stock

  • Price:$21.06
  • Price in reward points: 211 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.64 $20.22 $19.59 $18.74 Contact US
Quantity:

Telemecanique LC1-D2510-B7N Motor Contactor Starter Breaker 24V AC Contactor
Description:

- LC1 D2510 Contactor series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz,rated current up to 95A,for making,breaking ,frequently starting &controlling the AC motor.Combined with the auxiliary contact block,timer delay & machine-interlocking device etc,it becomes the delay contactor,mechanical interlocking contactor,star-delta starter.With the thermal relay,it is combined into the electromagnetic starter.The Contactor is produced according to IEC947-2,VDE0660&BS5452

Functions

- switching on/off heavy-loaded electrical circuits at controling signal to the coil
- making of control systems
- used as an operating element in process control panels
- remarkable with high reliability of current characterstics
- reliable separation of power contactors
- secured cover of the movable part of the contactor

Technical Data
- Operation class: AC3
- Rated operating voltage of power contactors:up to 690V; 50/60HZ
- Composition of the power contact surfaces:unalloyed copper with coating 80% AgSnO
- Surge voltage wear resistance:>8000V
- Rated voltage of the coil voltage:from 0.8 to 1.15 Uc
- Joining terminal:screw terminal
- Connecting:
- flexible conductors with or without cable terminal
- rigid conductors
- Electrical wear resistance (number of cycles): >=1000000
- Mechanical wear resistance (number of cycles): >=10000000
- Number of cycles per hour: 1200UP TO 32A;600 for 40-95A
- Pole leaking power: up to 13W
- Mounting:
- on DIN-rail or
- with bolts to the surface
- mounting position:vertical gradient-maximun±5o
- Plastic:wear resistance of UV rays and non-flammable(self-extinguishing material)
-  Ambient temperature: -10oC~+60oC
- Altitude:up to 2000m...
