• Telemetry Accessories FrSky LiPo Voltage Sensor 1S-6S up to 12S OLED Screen FLVS-02

Telemetry Accessories FrSky LiPo Voltage Sensor 1S-6S up to 12S OLED Screen FLVS-02

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.90
  • Price in reward points: 189 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.52 $18.14 $17.58 $16.82 Contact US
Quantity:

Telemetry Accessories FrSky LiPo Voltage Sensor 1S-6S up to 12S OLED Screen FLVS-02

 Specifications:
- Model: FLVS-01
- Dimension: 45*21*7mm
- Weight: 5.2g
- Measurement range: 1S~6S (The first lipo voltage should be more than 3.55V)
- Cell voltage display range: 0.20~4.20V
- Voltage display resolution: 0.01V
- Voltage detection precision: 0.03V
- Current of the board: 15.5mA
- Operating temperature range: -30℃~70℃
- Pixel: 128*64 with OLED display screen

Set Up

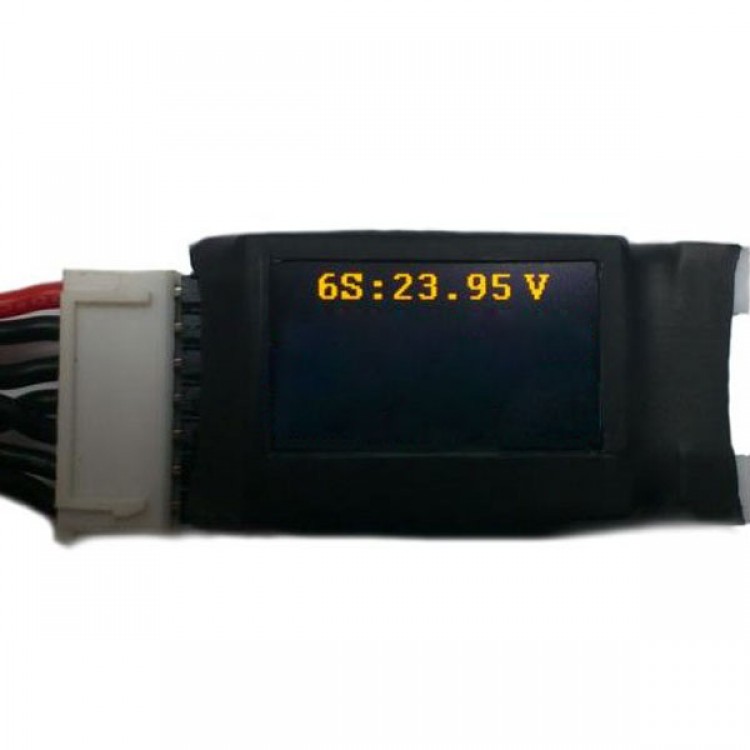

-  FrSky Lipo Voltage Sensor can be used alone as a lipo voltage checker. It detects and displays total voltage and cell voltages as connected on OLED display screen.

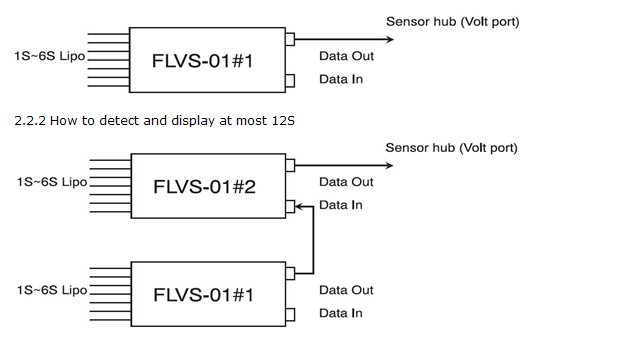

- Two FrSky Lipo Voltage Sensors can be combined to detect at most 12S.
-  How to detect and display 1S~6S


- Connect FrSky Lipo Voltage Sensor to sensor hub by provided cable, Data Screen-3 of FLD-02 and Data Screen-3 of DHT-U display total voltage and cell voltages as connected. (see﹡Note below)

Note:
-  If FLVS-01 serves as a lipo voltage checker, please refer to above Section 2.1.
-  If FLVS-01 works with sensor hub and FLD-02/DHT-U to monitor and display total voltage and cell voltages, sensor hub and DHT-U need to be upgraded to version2.0. Current FLD-02 displays 6S at most, and it needs a new firmware to display 12S. For more details please follow the FrSky Webpage.
