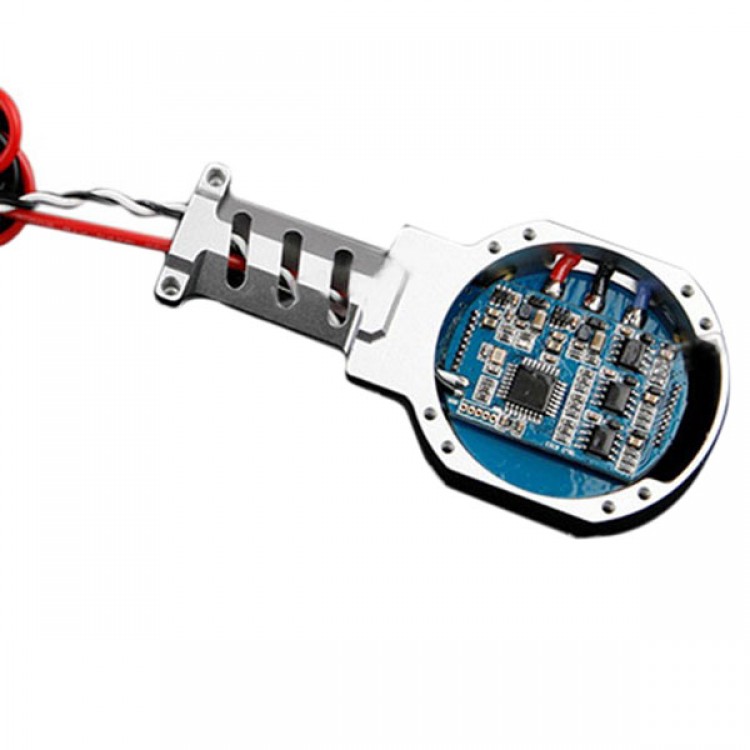

Tenink 30A Integrated Brushless ESC with Motor Mount Version 2 for D25mm Tube Multi-rotor Aircrafts Multicopters
Features:
- Tailored for multi-rotor
- Creative integration design
- Instant throttle response
- Smart start-up algorithm
- Industrial water-resistence design
- Better compatibility with wider range motor Kv
- Compatible with wide range of voltage output
- Loose-proof mechanism design
Specifications
- Color: Light gray
- D25mm -Working current: 30A
- Power input: 3-6S Lipo
- BEC output: No
- Compatible frequency: 20Hz - 500Hz (flight controller control signal)
- PWM: 18Khz
- Connector type to motors: 3.5mm bullet type (banana type)
- Motor mount material: 7075 aerial Aluminium
- Mounting hole spacing: 15mm/ 30mm
- Suitable arm outer diameter: 25mm
- Production process: CNC
- Dimension: 96 x 46 x 28mm
- Weight:69.5g
Package Included:
-1 x ESC & motor mount assembly
-1 x screw bag & shrinking tube
-1 x carbon fiber motor mounting base
