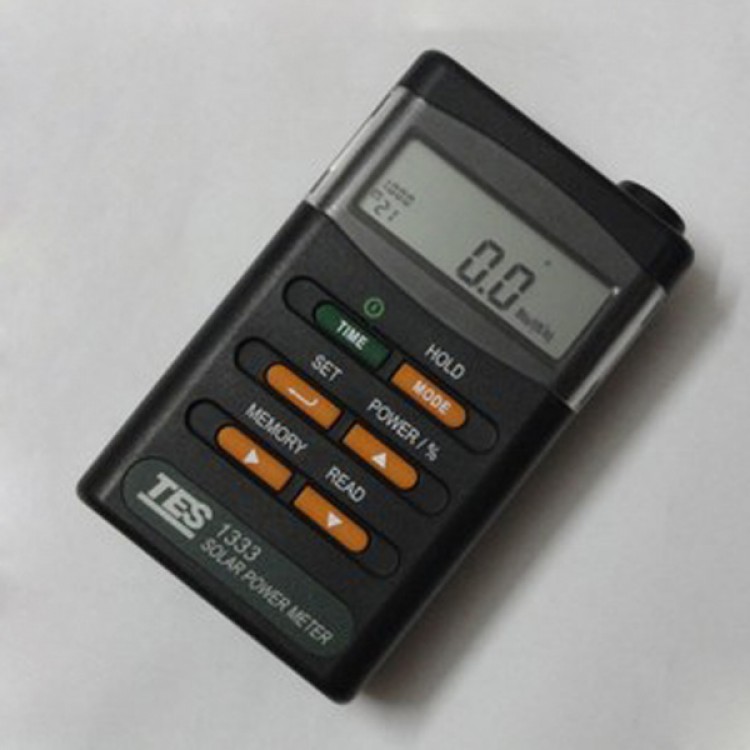

TES-1333 Solar Power Meter 400-1100nm 4 Digit Display Solar Power Meter

Availability: Out Of Stock

  • Price:$87.90
  • Price in reward points: 879 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $86.14 $84.38 $81.75 $78.23 Contact US
Quantity:

TES-1333 Solar Power Meter 400-1100nm 4 Digit Display Solar Power Meter

Specifications:
- Brand Name:TES
- Model Number:TES-1333
- Manu data memory and read:99 set
- Spectral response: 400-1100nm
- Display Type:Digital Only
- Operating Temperature: 0 *C to 50*C
- Accuracy Class: +-10W/m2[ +-3 Btu / (ft2*h) ]
- Measuring Range:2000W/m 2 ,634Btu/(ft 2 * h)
- Dimensions:111(L)*64(W)*34(H)mm
- Supply Voltage:
- Weight:165g


Features:





  • Wide spectral range.
  • Excellent long term stability.
  • Cosine corrected.
  • Automatic transmission measurements.
  • Select either power or transmission.
  • Solar energy power or transmission.
  • Current time setting function.
  • User calibration factor setting function.
  • End-mount light sensor.
  • Select either W/m2 or Btu / (ft2*h) units
  • Data Hold / MAX / AVG modes.
  • Data Memory and Read function. (99 sets.)
  • Auto Data memory (TES-1333)



Specification:



Display

3-1/2 digits.Max.indication1999

Range

2000W/m 2 ,634Btu/(ft 2 * h)

Resolution

1W/m2,1Btu/(ft2*h)

Spectral response

400-1100nm

Accuracy

Typically within  +-10W/m2[ +-3 Btu / (ft2*h) ] or +-5% , whichever is greater in sunlight; Additional temperature induced error +-0.38W/m2 /*C [ +-0.12 Btu / (ft2*h)/*C] from 25*C

Angular accuracy

Cosine corrected <5% for angles <60 *

Drift

<2% / per year

Calibration

User recalibration available

Over-input

Display shows

Sampling Time

Approx. 0.4 second

Manu data memory and read

99 sets

Auto data memory

--

Battery

4pcs size AAA(NO include)

Battery Life

Approx. 100 hours

Operating temp and humidity

0 *C to 50*C below 80%RH

Storage temp and Humidity

-10 *C to 60 *C below 70% RH

Weight

Approx. 165g

Dimension

111(L)*64(W)*34(H)mm

Accessories

Carrying Case, Operation Manual, RS-232



Application

  • Meteorology
  • agriculture
  • solar radiation measurement
  • solar power research
  •  Meteorology
  • agriculture
  • solar radiation measurement
  • solar power research
