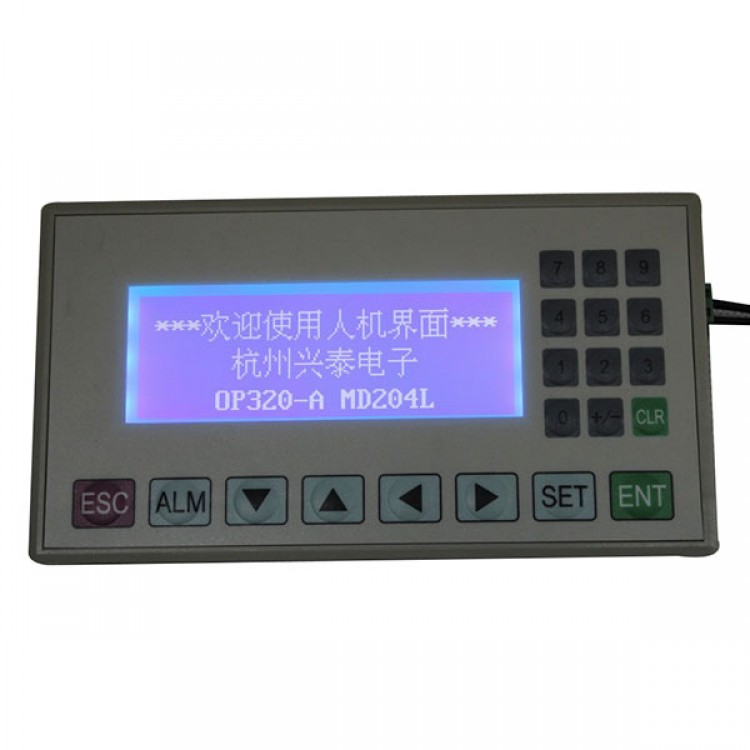

• Text Display MD204 English Film Blue Screen Support 232 422 485 Communication

Text Display MD204 English Film Blue Screen Support 232 422 485 Communication

Availability: In stock, usually dispatched in 1 business day

  • Price:$45.61
  • Price in reward points: 456 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $44.70 $43.79 $42.42 $40.59 Contact US
Quantity:

Text Display MD204 English Film Blue Screen Support 232 422 485 Communication

Description:

- Screen: 3.7inch STN LCD
- Definition: 192*64 pixel
- LCM type: blue screen
- LCM display effect: blue screen white words
- LCM lasting life: 25+-2degree, 65+-10% under this condition, above 50000 hours
- Lightness: 60cd/m*m
- Color: single color
- Contrast ratio: potentiometer adjusting
- Backlight: LED white light
- CPU: 8 bit processor
- Memorizer: 64KB Flash ROM
- Communication interface: COM1: PC RS232 & PLC RS485/422 & PLC RS232
- Function button: 20
- Realtime clock: no
- Printing terminal: no
- Permitting power fail: within 20ms

Specification:
- Power supply: 12~24 VDC ±10% <150mA @ 24VDC
- Interference test: voltage 1500Vp-p, pulse cycle 1us, continuous for 1s
- Dielectric strength test: 500 V AC 1mins
- Insulation resistance: over 10M ohm@500V DC
- Shockproof test: 10 ~ 25 Hz (X、Y、Z direction 2G 30min)
- Working temp:0 ~ 50 ℃
- Working humidity: 20 ~ 90 % RH
- Storage temp: d-20℃ ~ 70℃
- Dimension: 172 x 95 x 30 mm
- Display dimension: 101 x 36 mm
- Installation hole dimension:165 x 86 mm
- Weight: 0.3kg
