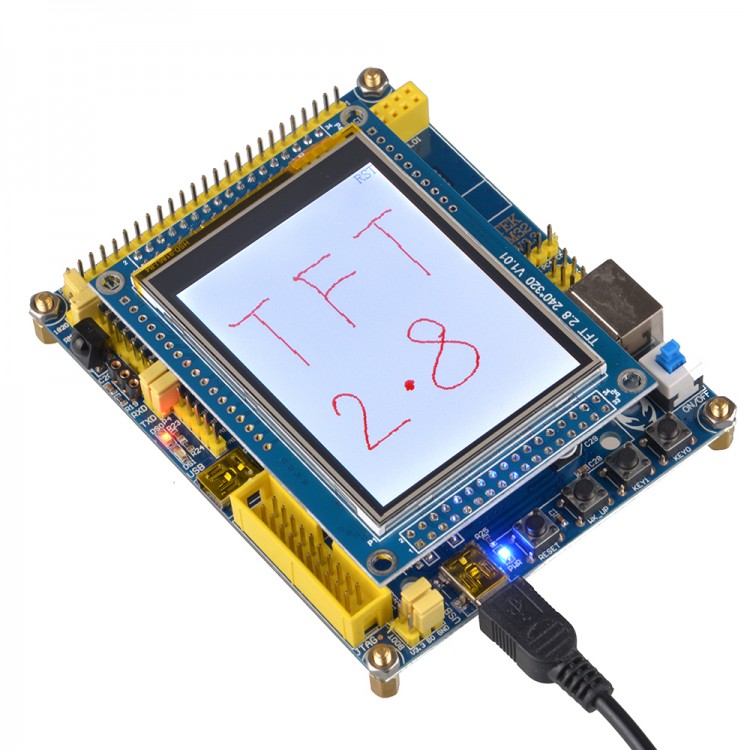

TFT LCD 2.8inch Display Module 4-Wire Resistive Touch Panel 240x320 Dots with PCB Module for DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$17.32
  • Price in reward points: 173 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $16.97 $16.63 $16.11 $15.41 Contact US
Quantity:

TFT LCD 2.8inch Display Module 4-Wire Resistive Touch Panel 240x320 Dots with PCB Module for DIY

Feature:

KL-TFT028B-PCB is 240x320 dots 2.8" color tft lcd module display with ILI9341 controller and 4-wire resistive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, and ARM .It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit,9-bit,16-bit,18-bit parallel,3-wire,4-wire serial spi interface. FPC with zif connector is easily to assemble or remove.

Specification:
- Gross Weight (kg): 0.0400kg
- Manufacturer: Cool-Lite
- Series Number: KL-TFT028B With PCB Module
- Part Number(Order Number): KL-TFT028B-PCB
- Connection: Pin-Connector
- Display Format: 240x320 Dots
- Sunlight Readable: No
- Touch Panel IC: TSC2046
- Outline Dimension: 50.2(W)x69.3(H)x4.0(T)mm
- Visual Area: 44.80x59.20mm
- Active Area: 43.20(W)x57.60(H)mm
- Diagonal Size: 2.8”
- Dot (Pixel) Size: 0.18x0.18mm
- Dot Pitch: No
- IC Package: COG
- IC or Equivalent: ILI9341V,
- Interface: 8080 8-bit Parallel , 8080 9-bit Parallel , 8080 16-bit Parallel , 8080 18-bit Parallel , 3-Wire SPI , 4-Wire SPI , 16-Bit RGB ,18-Bit RGB
- Display Type: TFT-LCD Color
- Response Time(Typ): Less than 5ms with Parallel / Less than 200ms with SPI
- Contrast Ratio(Typ): 500:1
- Colors: 65K/262K
- Viewing Direction: 12:00
- Viewing Angle Range: Left:70.0 , Right:70.0 , Up:70.0 , Down:60.0 degree
- Appearance: RGB on Black
- Brightness(Adj): 0 ~ 240cd/m2
- Backlight Color: White Color
- Backlight Current (Typ): No
- Power Supply(Typ/Absolute): 3.3V/5V

Package included:
- 1 x 2.8 inch 4-wire resistive touch panel(Soldering on display by default)
- 1 x Resistive touch pen
- 1 x PCB Base Board
- 18 x DIP Pin
