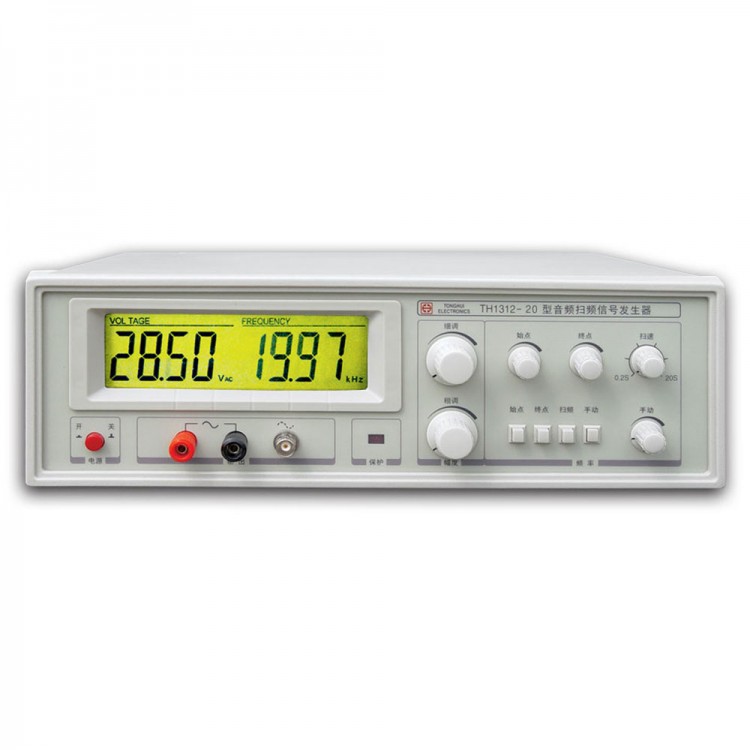

TH1312-20 Audio Frequency Sweep Signal Generator Function Generator with Large LCD Backlit Display
Specification:
- Power requirement: 198*242V, 47.5-52.5Hz
- OPeratinf temperature and humidity: 0-40 deg C , <90%
- Power consumption: <50A
- Dimension: 350* 110*340
- N.W: 5.4kg
- Frequency range: 20Hz-20Khz
- Output voltage: 0-12.8V
- Max. output power: 20W
- Frequency sweep mode: Logarith
- Ratio of frequency sweep: 0.2s-20s continuous
- Attenuated output terminal: Sine wave (600Ohm load)
- Signal distortion: <=0.8%
- Amplitude frequency flatness: <=3% (50Hz-20Khz)
- Load adjustment rate: <=3% (50Hz-20Khz)
- Warm up time: 15minutes
- Frequency display and accuracy: 3 3/4 bit LCD
- Voltage display : 3 3/4 bit LCD
Package included:
- 1 x Signal Generator
