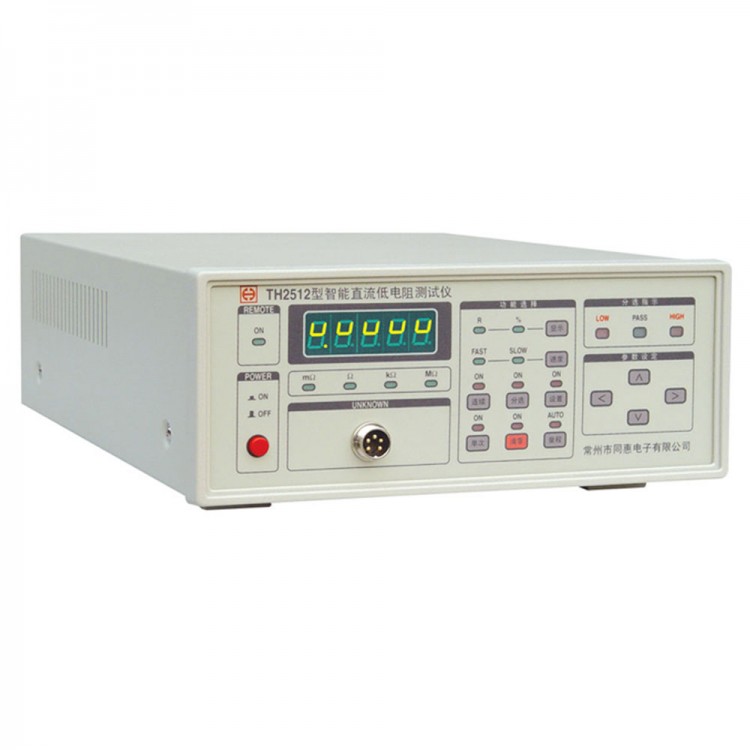

TH2512B Intelligent LED DC Low Resistance Tester Meter 0.01mOhm-19.999MOhm Milliohmmeter

Availability: In stock, usually dispatched in 1 business day

  • Price:$379.19
  • Price in reward points: 3792 Reward Points: 38
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $371.61 $364.02 $352.65 $337.48 Contact US
Quantity:

TH2512B Intelligent LED DC Low Resistance Tester Meter 0.01mOhm-19.999MOhm Milliohmmeter

Description:

TH2512B is a smart, wide range and high precision DC resistance tester. It is for transformer, inductance coil copper resistance, relay contact resistance, switch, contact resistance, conductor resistance, element solder joint contact resistance,printed board line and solder hole resistance and metal crack detection and so on. Apply for produce line,output bad product or good product signal with HANDLER interface and GP18 interface.

Specification:
- Dimension: 275*110*330mm W*H*D
- N.W: 3.3kg
- Model: TH2512B
- Accuracy: 0.1%
- Display range: 0.01mOhm-19.999MOhm
- Testing current: 1A/100/10/1mA/100/10/1uA
- Range: 20/200mOhm/2/200Ohm/20/200KOhm/2MOhm
- Maximum rresolution: 1uOhm
- Testin个speed: 10 times/s; 2.5times/s
- Comparator:onlap,downlap,qualified sorting and fast response function
- Trigger way: Inner, manual, outter
- 4  1/2 LED

Package included:
- 1 x Tester
- 1 x Power cable
- 1 x Testing cable
