TH2822C Handheld LCR Digital Bridge Meter Inductance Capacitance Resistance LCR QZD ESR DEG Tester 100KHz

Availability: In stock, usually dispatched in 1 business day

  • Price:$331.86
  • Price in reward points: 3319 Reward Points: 33
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $325.22 $318.59 $308.63 $295.36 Contact US
Quantity:

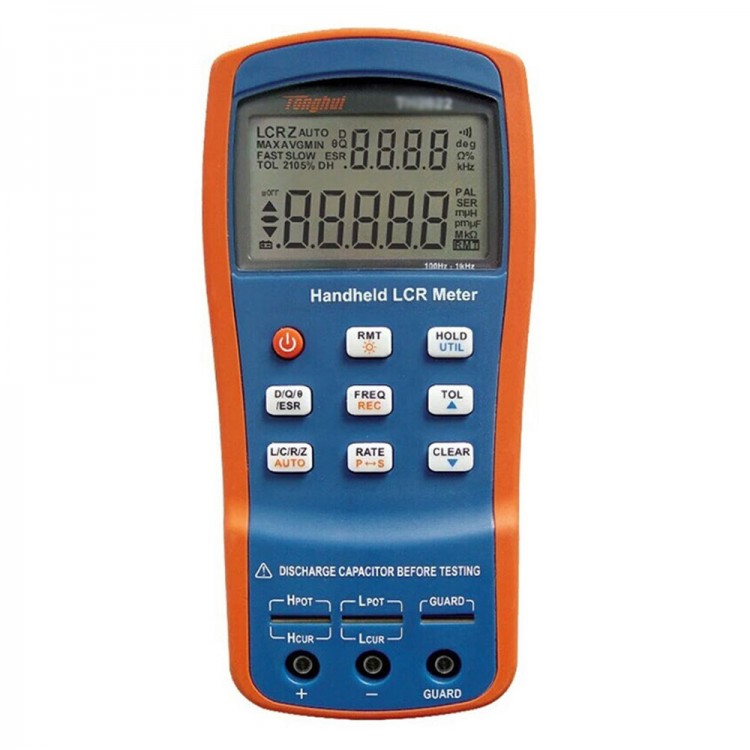

TH2822C Handheld LCR Digital Bridge Meter Inductance Capacitance Resistance LCR QZD ESR DEG Tester 100KHz

Description:

TH2822 series adopts the ultra-low dissipation design and high density SMD assembly techniques and can simultaneously display primary and secondary parameters by the use of backlit LCD display. The dual-color shells are gorgeously once shaped; functions are easy to operate. Gorgeously once shaped dual-color shells and easy operating functions are the characteristics of the meter. The test frequency is up to 1 KHz, the readings of primary parameter 40,000 counts and the resolution of dissipation factor 0.0,001. Accurate and convenient measurements of passive-components can be achieved in all occasions for a long time. With USB interface TH2822 series can conveniently make data communication and remote control with PC. In order to satisfy the increasing test requirements for SMD and balance the different needs for performance and price, two types of 4-terminal Kelvin test tweezers: TH26009C and TH26029C are available for users’ choice.

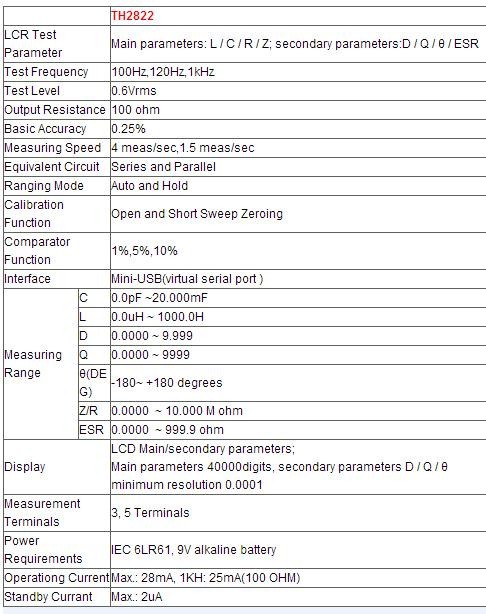

Specifications :

Package included:

- 1 x Handheld LCR Meter
- 1 x Mini USB cable
- 1 x AC power adapter
- 1 x Banana plug- Testing cable
- 1 x Short-circuit plate
- 1 x Test fixture
- 1 x Testing cable
