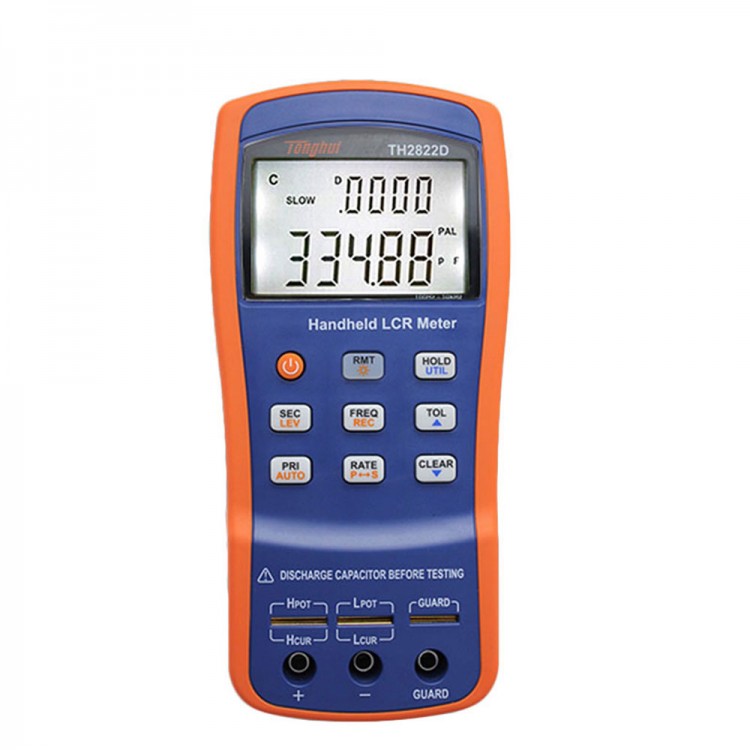

TH2822D Handheld LCR Meter 0.1% Accuracy Test Signal Frequency 100Hz 120Hz 1kHz 10kHz Testing

Availability: In stock, usually dispatched in 1 business day

  • Price:$240.41
  • Price in reward points: 2404 Reward Points: 24
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $235.60 $230.79 $223.58 $213.96 Contact US
Quantity:

TH2822D Handheld LCR Meter 0.1% Accuracy Test Signal Frequency 100Hz 120Hz 1kHz 10kHz Testing

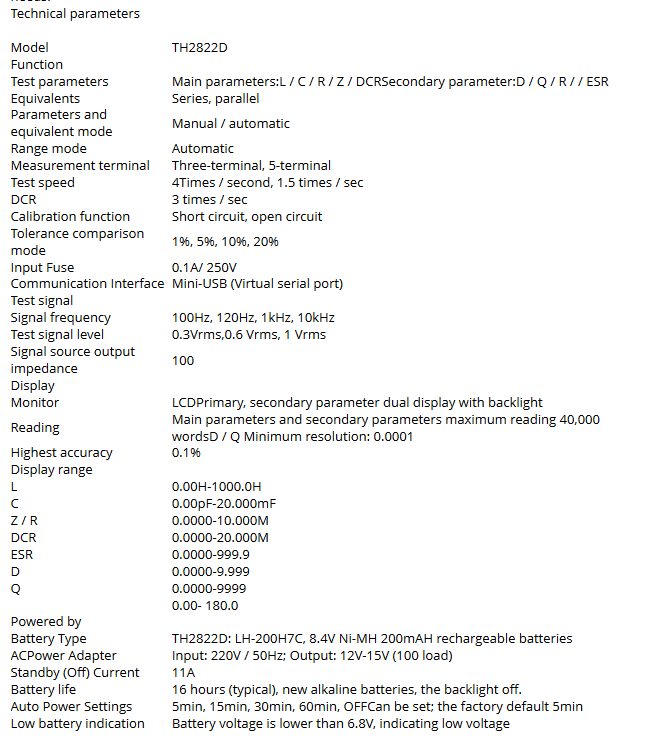

Specification:

- Up 0.1% measurement accuracy
- Maximum test signal frequency: 100Hz 120Hz 1kHz 10kHz
- Test signal level selectable
- With DCR function
- Enhanced input terminal shock protection
- Primary parameter 40,000 word maximum readings, D / Q resolution 0.0001
- Typical 25mA current ultra-low power
- Patented 5-terminal and three-terminal test sockets banana jacks compatible configuration
- Select the intelligent automatic LCR
- AC test up to 4 times / s (DCR 3 times / second) test speed, faster reading auto range design
- Constant 100 output impedance
- Percentage display and 1/5/10/20% four tolerance comparison mode
- Switch machine can charge the battery
- Test side protection
- Data hold and max / min / average record
- Real-time capabilities and configuration options to save the ability to work status
- Standard Mini - USB communication interface, SCPI command set
- Freely downloadable FastAccess PC communications software
- Behind the double injection of fresh shell

Brief introduction
With the benefits of electronic impedance test, with its leading technology, the introduction of the industry's strongest performance to be comparable with the new generation of desktop machines TH2822 series handheld LCR digital bridge, with the benefits of the product is the company's years of unremitting efforts in the field of passive component test and exploration of the crystal.
TH2822 series handheld LCR meter ultra-low-power design and high density SMD assembly process, primary and secondary parameters simultaneously display with backlight LCD display, forming a fresh and dazzling color shell, concise operation function, the test signal frequency up to 100kHz, the main parameters of 40,000 readings and loss factor 0.0001 word resolution, in any place can be a long time to achieve accurate passive components and convenient measurement.
In response to the needs of different places on TH2822D / E increases the plurality of signal levels tested, increasing the DCR tests to test the accuracy of 0.1%. TH2822 series offers USB interface communication capabilities, easy data communication with a PC and a remote control. In order to meet the increasing user demand for SMD test device, the user can also select TH26009C and TH26029C two kinds of SMD four Kelvin test tweezers to balance performance and price needs.

Package included:
- 1 x LCR Meter
- 1 x Mini USB cable
- 1 x Short circuit plate
- 1 x AC power adapter
- 1 x LCR Meter
- 1 x Test clamp
- 1 x Testing cable
