THB6064 DC40V 4.2A Stepper Motor Driver Board 64 Segments
  • THB6064 DC40V 4.2A Stepper Motor Driver Board 64 Segments
  • THB6064 DC40V 4.2A Stepper Motor Driver Board 64 Segments
  • THB6064 DC40V 4.2A Stepper Motor Driver Board 64 Segments
  • THB6064 DC40V 4.2A Stepper Motor Driver Board 64 Segments
  • THB6064 DC40V 4.2A Stepper Motor Driver Board 64 Segments
  • THB6064 DC40V 4.2A Stepper Motor Driver Board 64 Segments
  • THB6064 DC40V 4.2A Stepper Motor Driver Board 64 Segments

  • SKU:26431
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 3
  • Price:$27.99
  • Price in reward points: 280
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $27.43 $26.87 $26.03 $24.91 Contact US

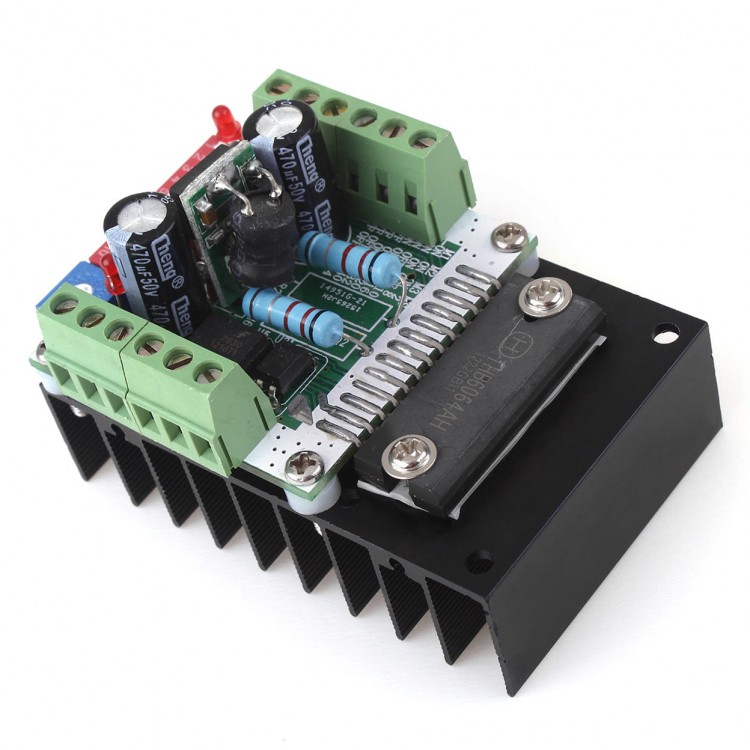

THB6064 DC40V 4.2A Stepper Motor Driver Board 64 Segments #A580A

Product Description:
- ultra high-speed optical coupling 10M bandwidth, signal input to do to ensure that the high-speed performance.
- large radiator, the entire program the chip Taobao radiator strongest drive. Ensure the long-term stability.
- you can turn on or off automatic semi-flow control functions. Allows the user to work in the motor control output is more flexible, reduce motor heating.
- you can set 2,8,10,16,20,32,40,64 subdivision, up to 64 segments.
- long working voltage DC12V-42V. Recommends the use of voltage between the DC24V-36V.
Motor drive current 0.5A ~ 4.2A adjustable; principles concerning the adjustment of the motor current: 15 minutes rotating the motor is energized, the motor temperature is around 60 degrees better. (Temperature is high, the motor is not conducive to long-term operation, low temperature, the motor output is limited)
- anti-power reverse feature, power reversed not burn IC.
- easy to install, set aside on the radiator mounting screw holes.
- four kinds of adjustable flow decay mode, the motor matching with good, easy to adjust the different models of motor vibration and noise while working.
- has a chip overheating protection TSD and overcurrent detection circuit, overheat overcurrent indicator lamp as alarm indication. Also has a power indicator
- using ultra-high pressure DC-DC power module to logic, almost no heat. The performance is much better than the market was the LDO linear circuits.
- specially designed: chopping frequency control. Select this four frequencies a frequency to the motor running smoothly, low noise, vibration hours is better. The default is 40K file ON, 15K, 30K, 65K are OFF. Particular attention to these four files at one time there can be only one file to ON. Prohibit even a file simultaneously hit the ON, or four files have hit OFF. under normal circumstances. The default is 40K file ON, 15K, 30K, 65K are OFF. If you want to set, be sure to power down operation. Operation, stalls attention to dial in place.

Product Show:



Label Definitions:


Name

Description

EN+  EN-

Enable +,-

PUL+  PUL-

Pulse input

DIR+  DIR-

Motor rotation direction

A+  A-

Phase A

B+  B-

Phase B

VIN  GND

Power +,-


Decay mode setting:


Decay mode

D1

D2

20%

ON

ON

40%

OFF

ON

60%

ON

OFF

80%

OFF

OFF


Subdivision setting:

Subdivision

M1

M2

M3

       2

ON

ON

ON

8

ON

ON

OFF

10

ON

OFF

ON

16

ON

OFF

OFF

20

OFF

ON

ON

32

OFF

ON

OFF

40

OFF

OFF

ON

64

OFF

OFF

OFF


Chopping frequency setting
- Select this four frequencies a frequency to the motor running smoothly, low noise, vibration hours is better.
- The default is 40K file ON, 15K, 30K, 65K are OFF.
- Special note that this 4 files at one time there can be only one file to ON. Prohibit even a file simultaneously hit the ON, or four files have hit OFF. Normal circumstances. The default is 40K file ON, 15K, 30K, 65K are OFF. If you want to set, be sure to power down operation. Operation, stalls attention to dial in place.



Current setting:
0-4.2A continuously adjustable, according to the blue potentiometer 11 files have letters or symbols corresponding to the corresponding current values.



Semi-flow settings:
- SW10: OFF = ON = Open Close

Package List:
- 1 * THB6064 4.2A Stepper Motor Driver Board
