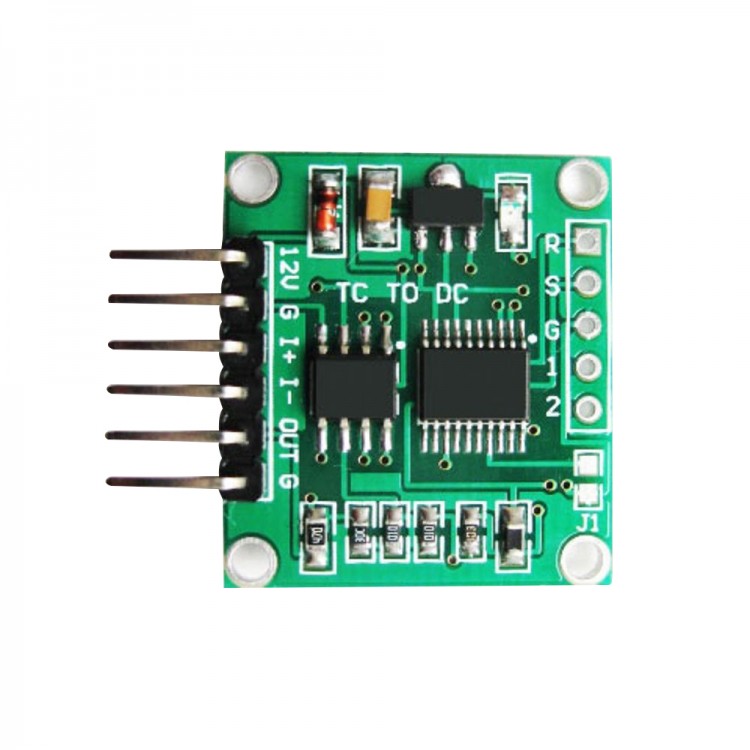

Thermocouple to Voltage K Type to 0 to 5V 10V Linear Conversion Transmitter Module
Description
This is a linear conversion module with cold junction temperature compensation, processing by the internal chip, the input thermocouple signal is converted to a temperature (voltage signal) outputs.
There are two output voltage ranges to choose from.
Module parameters
- 100% Brand New And High Quality
- Working voltage: 9V ~ 17V
- Enter: K-type thermocouple
- Output voltage: 0.00V ~ 5.00V/0.00V ~ 10.00V
- Temperature range: -100 to +1100 (degrees).
- Output: J1 pads on the circuit board: open (output 0.00V ~ 5.00V); shorted (output 0.00V ~ 10.00V), the default is open.
- Applications: Remote data acquisition and control equipment;
- Size: (L) 26mm * (W) 23mm * (height) 10mm
Module interface:
- 12V: power supply positive interfaces (9V ~ 17V).
- G: Power to the ground interface.
- I +: thermocouple positive interface.
- I-: thermocouple negative interface.
- OUT: Signal output interface(0.00V ~ 5.00V/0.00V ~ 10.00V).
- G: Power to the ground interface.
- Note: When the output 0.00V ~ 10.00V, power supply voltage to 15 volts.
- Output (0.00V ~ 5.00V) Resolution: 0.0041666V / ℃ (V / ° C)
- Output (0.00V ~ 10.00V) Resolution: 0.0083333V / ℃ (V / ° C)
Package includes:
- 1 x Thermocouple to Voltage K Type to 0-5V 0-10V Transmitter Module
